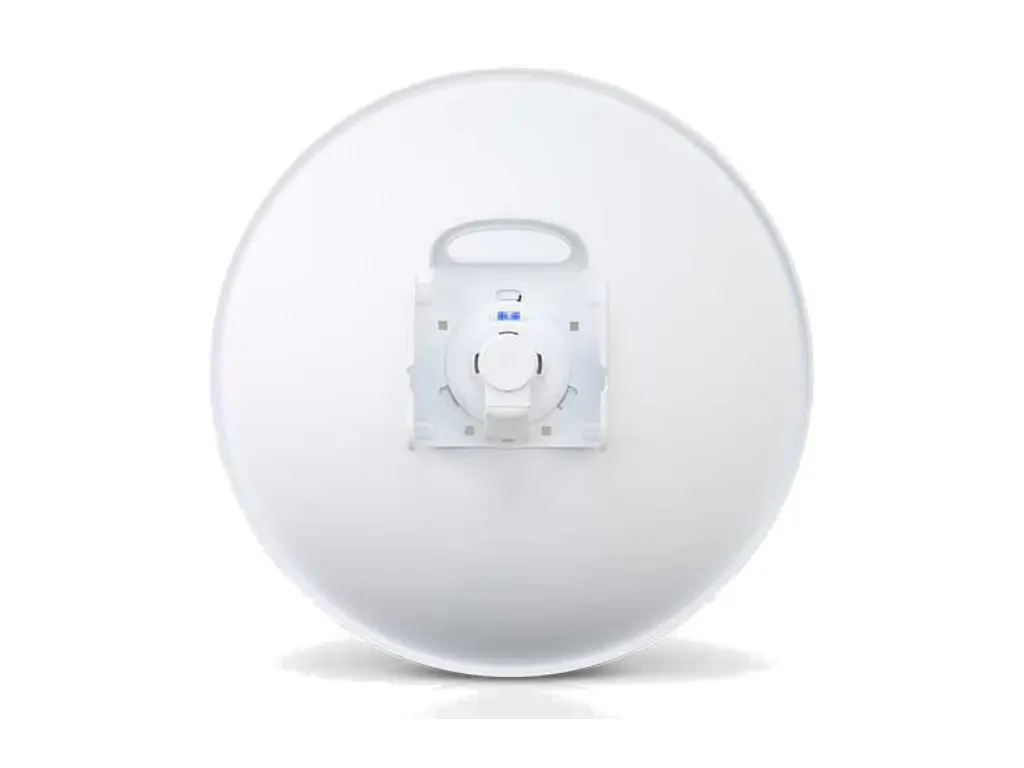

Ubiquiti airMAX PowerBeam 5AC Gen2 PBE-5AC-Gen2 5GHz Outdoor Wireless Bridge

The Ubiquiti airMAX PowerBeam 5AC Gen2 PBE-5AC-Gen2 is a high-performance outdoor wireless bridge engineered for long-range point-to-point and point-to-multipoint networking. Built with Ubiquiti’s advanced airMAX AC technology, it delivers high wireless throughput, low latency, and exceptional spectrum efficiency for demanding outdoor deployments. Its integrated 25 dBi high-gain dish antenna ensures stable long-distance connections, while the Gigabit Ethernet interface, dedicated management Wi-Fi radio, and passive PoE support simplify installation and management. The PowerBeam 5AC Gen2 is an ideal solution for wireless backhaul, ISP infrastructure, CCTV connectivity, campus networking, and building-to-building network expansion.

Product Features

airMAX AC Technology

The PowerBeam 5AC Gen2 utilizes Ubiquiti airMAX AC technology to improve wireless capacity, reduce latency, and maximize spectrum efficiency for reliable outdoor wireless communication.

High-Gain 25 dBi Directional Dish Antenna

The integrated 25 dBi directional antenna provides excellent signal focus and extended wireless range, making it suitable for long-distance point-to-point wireless bridge deployments.

High-Speed 5GHz Wireless Connectivity

Operating on the 5GHz frequency band, the device delivers fast and stable wireless performance with reduced interference for professional outdoor networking applications.

Dedicated Wi-Fi Management Radio

A built-in 2.4GHz management radio allows administrators to configure and monitor the device wirelessly using the UMobile app without interrupting the primary wireless link.

Gigabit Ethernet Connectivity

The Gigabit Ethernet port supports high-speed wired network connections, ensuring maximum performance between the wireless bridge and connected networking equipment.

Precision Alignment Mount

The improved mounting system provides separate azimuth and elevation adjustments for accurate antenna alignment, helping optimize wireless signal quality and link stability.

Passive PoE Power Support

The device supports passive Power over Ethernet, allowing both power and network connectivity through a single Ethernet cable for simplified installation.

Durable Outdoor Construction

The UV-resistant enclosure and powder-coated steel reflector are designed to withstand harsh environmental conditions while maintaining long-term reliability.

Advanced airOS Operating System

The intuitive airOS interface provides comprehensive tools for wireless configuration, traffic monitoring, network optimization, firmware management, and performance diagnostics.

Ideal for Professional Wireless Networks

The PowerBeam 5AC Gen2 is suitable for wireless internet service providers, enterprise backhaul, surveillance systems, rural broadband deployment, campus networking, and building-to-building wireless links.

Product Specifications

• Product Model: PBE-5AC-Gen2
• Product Type: Outdoor Wireless Bridge
• Wireless Technology: Ubiquiti airMAX AC
• Wireless Standard: IEEE 802.11ac
• Frequency Band: 5GHz
• Operating Frequency Range: 5150 – 5875 MHz
• Antenna Gain: 25 dBi
• Antenna Type: Integrated High-Gain Directional Dish
• Maximum Throughput: Up to 450+ Mbps
• Networking Interface: 1 x Gigabit RJ45 Ethernet Port
• Processor: MIPS 74Kc
• Processor Speed: 720 MHz
• Memory: 64 MB DDR2 RAM
• Management Radio: Integrated 2.4GHz Wi-Fi
• Channel Widths: 10, 20, 30, 40, 50, 60, and 80 MHz
• Maximum Transmit Power: 25 dBm
• Maximum Power Consumption: 8.5W
• Power Method: Passive 24V PoE
• Power Supply: 24V, 0.5A Gigabit PoE Adapter
• Supported Voltage Range: 20 – 26V DC
• LED Indicators: Power, Ethernet, LAN, WLAN, and Signal Strength
• Enclosure Material: UV-Stabilized Polycarbonate
• Reflector Material: Powder-Coated Steel
• Mounting Method: Pole Mount
• Wind Survivability: Up to 200 km/h
• Operating Temperature: -40°C to 70°C
• Operating Humidity: 5% to 95% Non-Condensing
• Dimensions: 420 x 420 x 275 mm
• Weight: 2.22 kg
• Certifications: CE, FCC, IC, and RoHS
• Applications: Long-Range Point-to-Point Links, Point-to-Multipoint Networks, Wireless Backhaul, ISP Infrastructure, CCTV Connectivity, Campus Networking, and Building-to-Building Wireless Bridges
