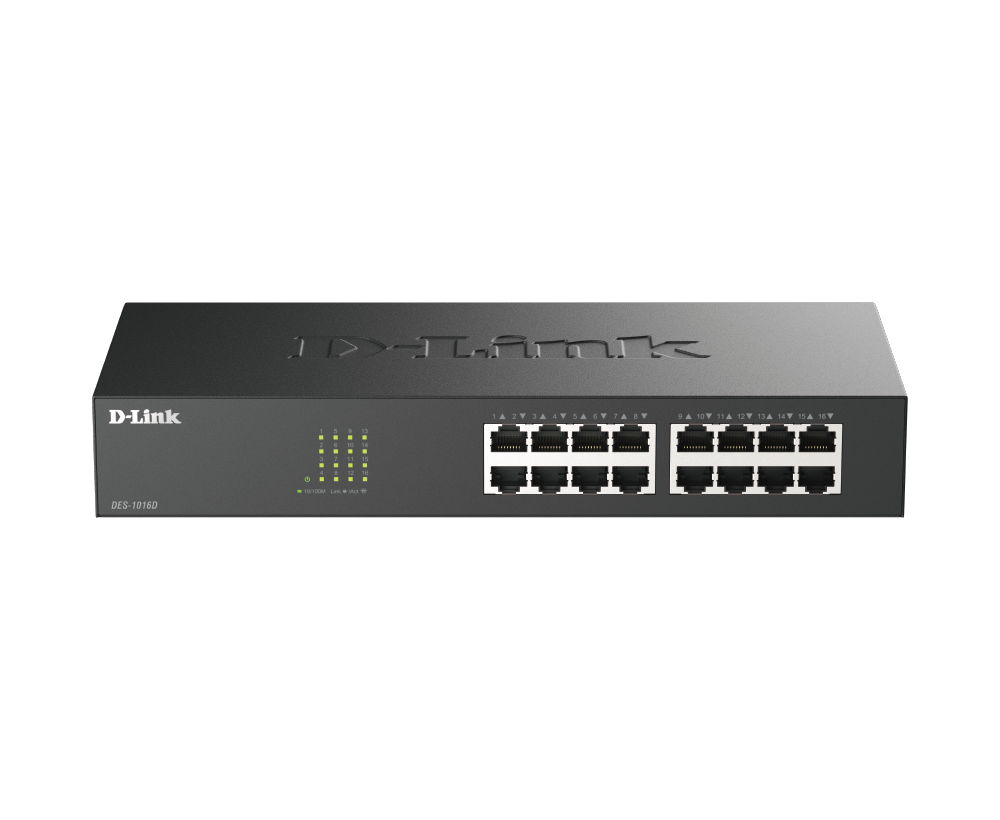

D-Link DES-1016D 16-Port 10/100Mbps Ethernet Unmanaged Desktop Switch

The D-Link DES-1016D is a 16-port Fast Ethernet unmanaged desktop switch designed for small businesses, offices, classrooms, and home networks that require reliable and affordable wired connectivity. Featuring sixteen 10/100 Mbps RJ45 ports, plug-and-play functionality, and a durable fanless metal chassis, the switch allows easy network expansion without the need for configuration. Its energy-efficient design, reliable switching performance, and compact form factor make it an excellent solution for connecting computers, printers, IP phones, and other Ethernet-enabled devices.

Product Features

16 Fast Ethernet Ports

Equipped with sixteen 10/100 Mbps RJ45 ports that automatically detect the optimal connection speed for each connected device.

Plug-and-Play Installation

Requires no software installation or configuration, allowing users to connect devices and begin networking immediately.

Non-Blocking Switching Architecture

Provides efficient packet forwarding with minimal latency, ensuring stable communication across all connected devices.

Auto MDI/MDIX Support

Automatically detects cable types, eliminating the need for crossover cables and simplifying network installation.

IEEE 802.3x Flow Control

Helps prevent packet loss by regulating data flow during periods of heavy network traffic.

Energy-Efficient Technology

Supports IEEE 802.3az Energy Efficient Ethernet (EEE) and D-Link Green technology to reduce power consumption based on cable length and network activity.

Silent Fanless Operation

The fanless metal enclosure ensures quiet operation while providing effective heat dissipation for long-term reliability.

Durable Metal Housing

Built with a robust metal chassis suitable for desktop placement or rack mounting in professional networking environments.

Product Specifications

• Model: DES-1016D
• Switch Type: Unmanaged Fast Ethernet Desktop Switch
• Ethernet Ports: 16 × 10/100 Mbps RJ45 Ports
• Switching Capacity: 3.2 Gbps
• Packet Forwarding Rate: 2.38 Mpps
• MAC Address Table: 8K Entries
• Transmission Method: Store-and-Forward
• Auto Negotiation: Supported
• Auto MDI/MDIX: Supported
• Flow Control: IEEE 802.3x
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet
• Housing Material: Metal
• Cooling: Fanless
• Power Input: 100–240V AC, 50/60 Hz
• Maximum Power Consumption: 2.1W
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Dimensions: 280 × 180 × 44 mm
• Weight: 1.06 kg
• Mounting Options: Desktop or Rack Mount
• Ideal Applications: Small business networks, offices, classrooms, workgroups, retail environments, and home network expansion.
