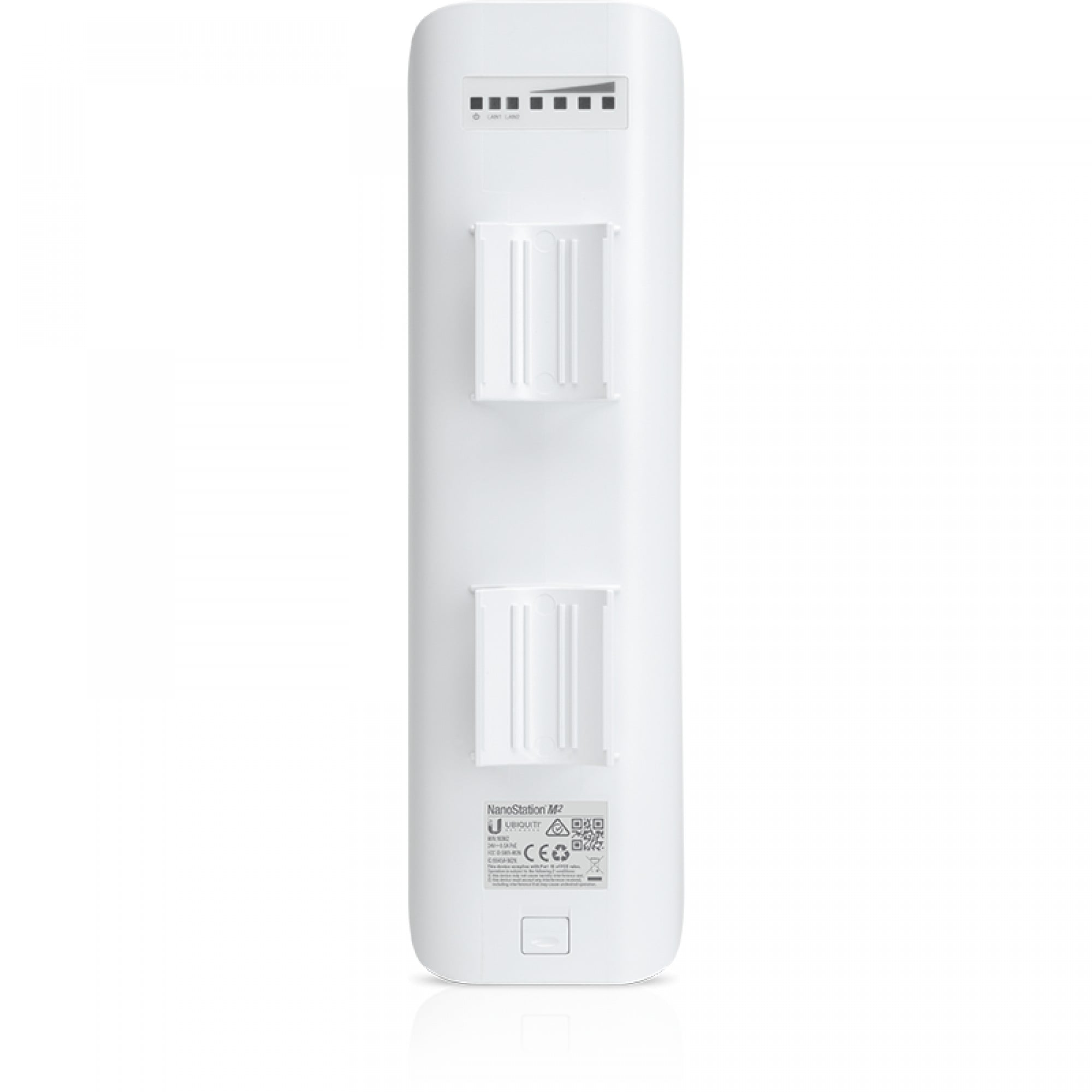

Ubiquiti airMAX NanoStation M2 NSM2 2.4GHz Outdoor Wireless CPE

The Ubiquiti airMAX NanoStation M2 NSM2 is a professional-grade outdoor wireless CPE engineered for reliable point-to-point and point-to-multipoint wireless networking. Operating on the 2.4GHz frequency band, it incorporates Ubiquiti’s airMAX TDMA technology to deliver improved throughput, reduced latency, and enhanced network efficiency. With a high-gain integrated directional antenna, dual Ethernet ports, passive PoE support, and a durable weather-resistant enclosure, the NanoStation M2 is an excellent solution for wireless internet distribution, building-to-building connectivity, surveillance network deployment, and extending network coverage in outdoor environments.

Product Features

airMAX TDMA Technology

The NanoStation M2 utilizes Ubiquiti’s airMAX TDMA protocol to improve wireless network efficiency by minimizing interference, increasing capacity, and delivering consistent performance in point-to-point and point-to-multipoint deployments.

Reliable 2.4GHz Wireless Connectivity

Operating on the 2.4GHz frequency band, the device provides dependable wireless communication with excellent obstacle penetration, making it suitable for a wide range of outdoor networking applications.

Integrated High-Gain Directional Antenna

The built-in dual-polarized directional antenna delivers focused signal transmission and reception, helping establish stable long-distance wireless links with improved signal quality.

Dual Fast Ethernet Ports

The NanoStation M2 includes two 10/100 Mbps Ethernet ports, allowing flexible network connectivity and supporting additional network devices in outdoor installations.

Passive PoE Support

Passive Power over Ethernet enables both power and network connectivity over a single Ethernet cable, simplifying installation while reducing cable clutter and deployment costs.

Weather-Resistant Outdoor Design

Constructed with a UV-stabilized outdoor enclosure, the NanoStation M2 is designed to withstand harsh weather conditions while maintaining reliable long-term performance.

Simple Deployment and Management

The included pole-mounting kit and intuitive airOS management interface make installation, configuration, monitoring, and maintenance straightforward for network administrators.

Versatile Outdoor Networking Applications

The NanoStation M2 is ideal for wireless bridges, internet service provider deployments, CCTV network connectivity, campus networking, rural broadband, and extending wireless coverage between buildings.

Product Specifications

• Product Model: NSM2
• Product Type: Outdoor Wireless CPE
• Wireless Technology: Ubiquiti airMAX
• Wireless Standard: IEEE 802.11b/g/n
• Frequency Band: 2.4GHz
• Operating Frequency: 2412 – 2462 MHz
• Antenna Gain: 10.4 – 11.2 dBi
• Antenna Type: Integrated Dual-Polarized Directional Antenna
• Antenna Polarization: Dual Linear
• Beamwidth: 55° Horizontal, 53° Vertical, 27° Elevation
• Cross-Polarization Isolation: 23 dB Minimum
• Networking Interfaces: 2 x 10/100 Mbps RJ45 Ethernet Ports
• Processor: Atheros MIPS 24Kc
• Processor Speed: 400 MHz
• Memory: 32 MB SDRAM
• Flash Memory: 8 MB
• Maximum Power Consumption: 5.5W
• Power Method: Passive 24V PoE
• Power Supply: 24V, 0.5A PoE Adapter
• Supported Voltage Range: 22 – 27V DC
• Enclosure Material: UV-Stabilized Outdoor Plastic
• Mounting Method: Pole Mount
• Operating Temperature: -30°C to 75°C
• Operating Humidity: 5% to 95% Non-Condensing
• Dimensions: 294 x 31 x 80 mm
• Weight: 400 g
• Certifications: CE, FCC, IC, RoHS
• Applications: Point-to-Point Links, Point-to-Multipoint Networks, Wireless Bridges, Outdoor Network Extension, CCTV Connectivity, and ISP Wireless Deployments
