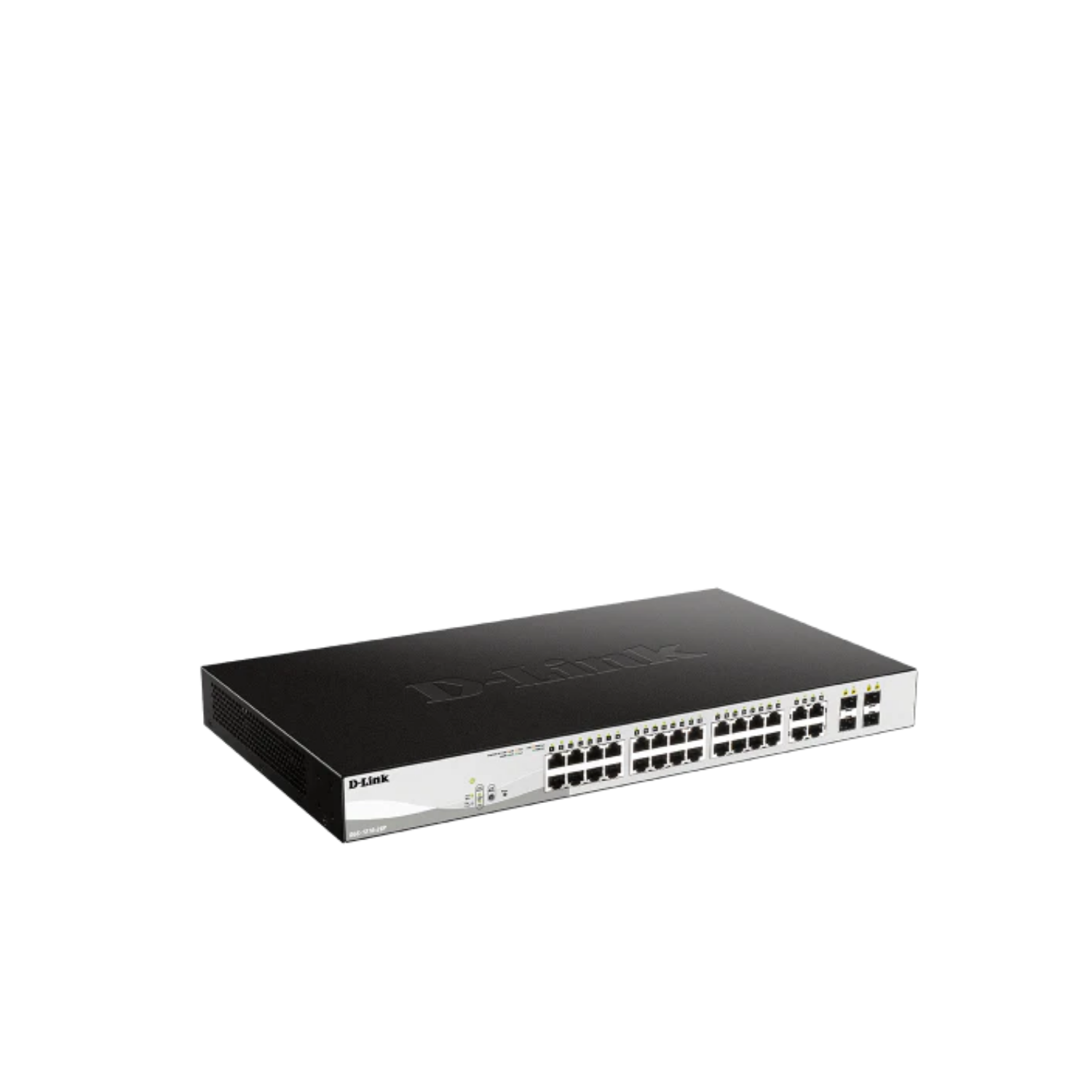

D-Link DGS-1210-28P 28-Port Gigabit PoE Smart Managed Switch

The D-Link DGS-1210-28P is a Layer 2+ Smart Managed Gigabit PoE switch designed for small and medium-sized businesses, enterprise networks, surveillance systems, educational institutions, and hospitality environments. It features 24 Gigabit PoE+ ports and four Gigabit RJ45/SFP combo uplink ports, providing high-speed connectivity and power delivery to IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. With a 193W PoE power budget, advanced Layer 2 switching, Lite Layer 3 static routing, comprehensive security features, and flexible management options, the DGS-1210-28P delivers reliable, scalable, and efficient network performance.

Product Features

24 Gigabit PoE+ Ethernet Ports

Equipped with 24 auto-negotiating 10/100/1000 Mbps RJ45 ports supporting IEEE 802.3af and IEEE 802.3at PoE standards for simultaneous power and data transmission.

4 Gigabit RJ45/SFP Combo Ports

Features four combo uplink ports that support either Gigabit Ethernet or Gigabit SFP fiber connections for flexible network expansion.

193W PoE Power Budget

Provides a total PoE power budget of up to 193W, allowing multiple PoE-powered devices to operate efficiently.

Layer 2+ Smart Management

Supports advanced Layer 2 features including VLAN, Link Aggregation, QoS, IGMP Snooping, Port Mirroring, and Lite Layer 3 Static Routing for enhanced network performance.

Advanced Security Features

Includes Access Control Lists (ACL), 802.1X port authentication, DHCP Snooping, IP-MAC-Port Binding, Storm Control, and D-Link Safeguard Engine to protect the network against unauthorized access and malicious traffic.

Quality of Service (QoS)

Prioritizes voice, video, and mission-critical applications to ensure smooth network performance and reduced latency.

Surveillance Mode

Offers a dedicated surveillance management interface optimized for IP camera deployments, simplifying configuration and monitoring.

Energy-Efficient Operation

Supports IEEE 802.3az Energy Efficient Ethernet (EEE) technology to reduce power consumption during periods of low network activity.

Flexible Management Options

Supports Web GUI, CLI, SNMP, Telnet, SSH, and D-Link Network Assistant for easy local and remote administration.

Rack-Mountable Design

Built with a durable 19-inch metal chassis suitable for rack installation in network cabinets and server rooms.

Product Specifications

• Model: D-Link DGS-1210-28P
• Product Type: Layer 2+ Smart Managed Gigabit PoE Switch
• Total Ports: 28
• PoE Ports: 24 × 10/100/1000 Mbps Gigabit RJ45
• Uplink Ports: 4 × Gigabit RJ45/SFP Combo Ports
• PoE Standards: IEEE 802.3af and IEEE 802.3at
• Maximum PoE Output per Port: Up to 30W
• Total PoE Power Budget: 193W
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.7 Mpps
• MAC Address Table: 8K Entries
• Packet Buffer Memory: 4.1 Mbits
• DRAM: 128 MB DDR3
• Flash Memory: 32 MB
• VLAN Support: Yes
• Static Routing: Lite Layer 3
• Link Aggregation: IEEE 802.3ad LACP
• Quality of Service (QoS): Supported
• Access Control Lists (ACL): Supported
• IGMP Snooping: Supported
• Port Mirroring: Supported
• Spanning Tree Protocols: STP, RSTP, MSTP
• DHCP Snooping: Supported
• IP-MAC-Port Binding: Supported
• 1X Authentication: Supported
• Energy Efficient Ethernet: IEEE 802.3az
• Management Interfaces: Web GUI, CLI, SNMP, SSH, Telnet
• Auto MDI/MDIX: Supported
• Flow Control: IEEE 802.3x
• LED Indicators: Power, Console, Link/Activity, PoE Status, Power Budget, Fan Error
• Power Input: 100–240V AC, 50/60Hz
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95% non-condensing
• Dimensions: 440 × 140 × 44 mm
• Weight: Approximately 2.15 kg
• Mounting: Standard 19-inch Rack Mount
• Ideal Applications: Enterprise networks, IP surveillance systems, wireless networking, schools, hotels, offices, retail stores, and medium-sized business environments.
