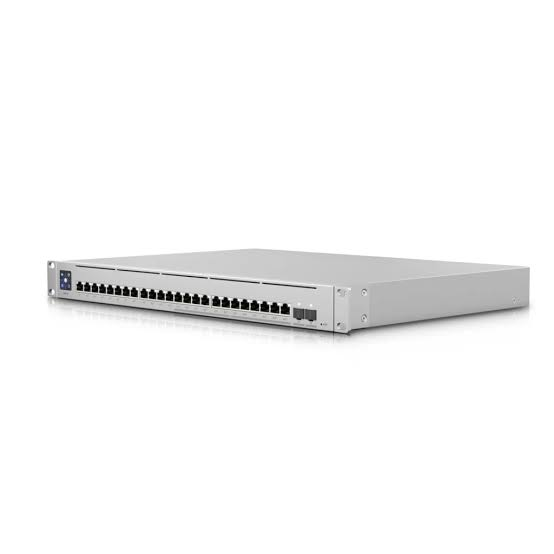

Ubiquiti UniFi Enterprise 24 PoE Managed Layer 3 Switch – USW-ENTERPRISE-24-POE

The Ubiquiti UniFi Enterprise 24 PoE (USW-ENTERPRISE-24-POE) is a high-performance Layer 3 managed switch built for enterprise networks, data centers, educational institutions, and high-density business environments. It features 24 PoE+ Ethernet ports, including 12 Gigabit and 12 Multi-Gigabit 2.5GbE ports, along with two 10G SFP+ uplink ports for high-speed backbone connectivity. With a substantial 400W PoE budget, advanced Layer 3 routing capabilities, and centralized management through the UniFi Network application, this switch is ideal for powering WiFi 6 and other PoE-enabled devices while delivering exceptional network performance.

Product Features

24 High-Speed Ethernet Ports

Equipped with 24 RJ45 Ethernet ports, including 12 Gigabit ports and 12 Multi-Gigabit 2.5GbE ports, providing flexible connectivity for modern high-bandwidth devices.

400W PoE+ Power Budget

Delivers up to 400W of total PoE+ power, enabling the switch to power multiple access points, IP cameras, VoIP phones, and other PoE-enabled devices simultaneously.

Dual 10G SFP+ Uplink Ports

Includes two 10 Gigabit SFP+ ports for high-speed fiber uplinks, switch aggregation, and enterprise backbone connectivity.

Advanced Layer 3 Switching

Supports Layer 3 networking features including static routing, inter-VLAN routing, DHCP server, and DHCP relay for enhanced network performance and flexibility.

Centralized UniFi Management

Managed through the UniFi Network application, allowing administrators to configure, monitor, and maintain the switch alongside other UniFi devices from a single interface.

Enterprise Security and Traffic Management

Supports VLANs, Access Control Lists (ACLs), 802.1X authentication, QoS, IGMP Snooping, DHCP Snooping, and advanced network isolation for secure and efficient network operation.

Integrated Touchscreen Display

Features a 1.3-inch touchscreen display that provides quick access to system information, network status, and device diagnostics.

Professional Rackmount Design

Built in a durable 1U rackmount chassis, making it ideal for enterprise server rooms, network cabinets, and professional IT installations.

Product Specifications

• Model: USW-ENTERPRISE-24-POE
• Product Type: Layer 3 Managed Enterprise PoE Switch
• Ethernet Ports:
  • 12 × 10/100/1000 Mbps RJ45 PoE+
  • 12 × 100/1000/2500 Mbps RJ45 PoE+
• Uplink Ports: 2 × 1/10G SFP+
• Total PoE Budget: 400 W
• Maximum PoE Output per Port: 32 W
• Switching Capacity: 124 Gbps
• Total Non-Blocking Throughput: 62 Gbps
• Forwarding Rate: 92 Mpps
• Layer Support: Layer 2 and Layer 3
• Supported VLANs: Up to 1,000
• MAC Address Table Size: 16,000 Entries
• Packet Buffer: 2 MB
• Display: 1.3-inch Touchscreen
• Management: UniFi Network Application
• Power Supply: Internal 550 W AC/DC Power Supply
• Input Voltage: 100–240 V AC, 50/60 Hz
• Maximum Power Consumption: 460 W (Including PoE Output)
• Redundancy: USP RPS DC Backup Support
• Mounting: 1U Rackmount
• Dimensions: 442.4 × 43.7 × 325 mm
• Weight: Approximately 5.2 kg
• Operating Temperature: -5°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Features: Static Routing, Inter-VLAN Routing, DHCP Server, DHCP Relay, VLAN, Link Aggregation (LACP), QoS, 802.1X Authentication, Access Control Lists (ACLs), IGMP Snooping, Port Mirroring, Jumbo Frames, STP, RSTP, MSTP, Flow Control, Storm Control, and Network Isolation

• Ideal Applications: Enterprise networks, data centers, high-density wireless deployments, educational institutions, hospitality, surveillance systems, and large-scale UniFi network infrastructures.
