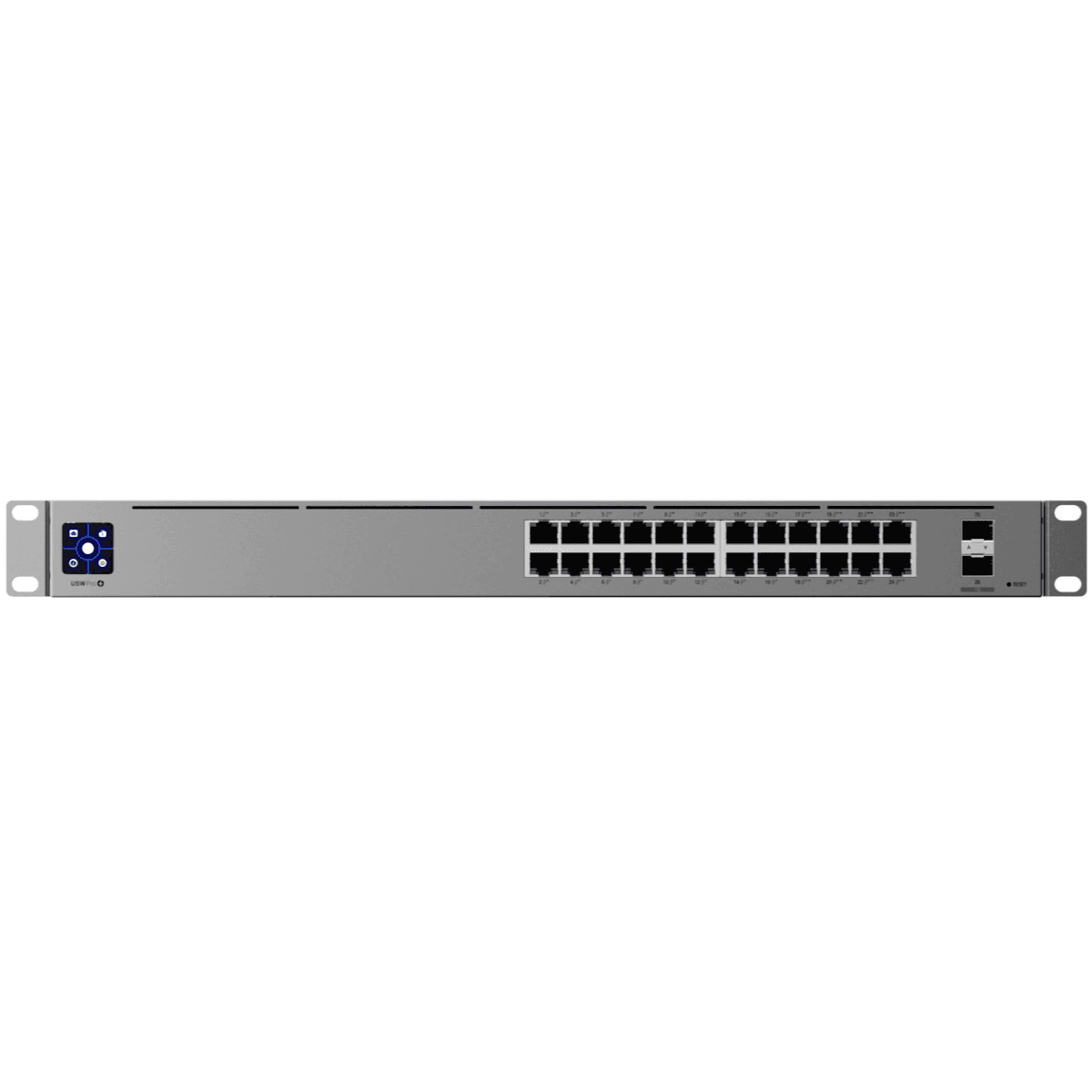

Ubiquiti UniFi Pro 24-Port PoE Managed Layer 3 Switch – USW-Pro-24-POE

The Ubiquiti UniFi Pro 24-Port PoE Switch (USW-Pro-24-POE) is a high-performance Layer 3 managed switch designed for enterprise networks, business offices, educational institutions, and large-scale UniFi deployments. It features 24 Gigabit Ethernet ports with PoE+ support, two 10G SFP+ uplink ports, and a substantial 400W PoE budget for powering access points, IP cameras, VoIP phones, and other PoE-enabled devices. Managed through the UniFi Network application, the switch delivers advanced Layer 3 capabilities, high-speed switching, centralized management, and enterprise-grade security in a compact 1U rackmount form factor.

Product Features

24 Gigabit Ethernet Ports

Provides twenty-four 10/100/1000 Mbps RJ45 ports for reliable, high-speed connectivity to network devices including computers, servers, wireless access points, IP cameras, and VoIP phones.

400W PoE+ Power Budget

Delivers up to 400W of total PoE power, allowing multiple PoE-enabled devices to operate simultaneously without requiring separate power adapters.

Dual 10G SFP+ Uplink Ports

Includes two dedicated 10 Gigabit SFP+ ports for high-speed fiber uplinks, switch aggregation, and enterprise backbone connectivity.

Advanced Layer 3 Switching

Supports Layer 3 features such as static routing, inter-VLAN routing, DHCP relay, and advanced traffic management for improved network performance.

Centralized UniFi Management

Managed through the UniFi Network application, enabling centralized configuration, monitoring, firmware updates, and performance analytics across the UniFi ecosystem.

Enterprise Security Features

Supports VLANs, Access Control Lists (ACLs), 802.1X authentication, DHCP Snooping, IGMP Snooping, and Quality of Service (QoS) to enhance network security and efficiency.

Integrated Touchscreen Display

Features a 1.3-inch touchscreen that provides real-time network information, switch status, and quick diagnostics.

Rackmount Enterprise Design

Built in a durable 1U rackmount chassis for seamless integration into server rooms, network cabinets, and professional IT environments.

Product Specifications

• Model: USW-Pro-24-POE
• Product Type: Layer 3 Managed Gigabit PoE Switch
• Ethernet Ports: 24 × 10/100/1000 Mbps Gigabit RJ45
• PoE Ports: 24 × IEEE 802.3af/at PoE+
• Uplink Ports: 2 × 10G SFP+
• Total PoE Budget: 400 W
• Maximum PoE Output per Port: 32 W
• Switching Capacity: 88 Gbps
• Total Non-Blocking Throughput: 44 Gbps
• Forwarding Rate: 65.47 Mpps
• Layer Support: Layer 2 and Layer 3
• Display: 1.3-inch Touchscreen
• Management: UniFi Network Application
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240 V AC, 50/60 Hz
• Maximum Power Consumption: 450 W
• Cooling: Smart Fan Cooling
• Mounting: 1U Rackmount
• Dimensions: 442.4 × 43.7 × 400 mm
• Weight: Approximately 5.4 kg
• Operating Temperature: -5°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Features: Static Routing, Inter-VLAN Routing, VLAN, Link Aggregation (LACP), Access Control Lists (ACLs), 802.1X Authentication, DHCP Snooping, IGMP Snooping, Port Mirroring, Jumbo Frames, STP, RSTP, MSTP, Flow Control, Storm Control, and Quality of Service (QoS)

• Ideal Applications: Enterprise networks, business offices, educational institutions, hospitality, surveillance systems, high-density wireless deployments, and professional UniFi network infrastructures.
