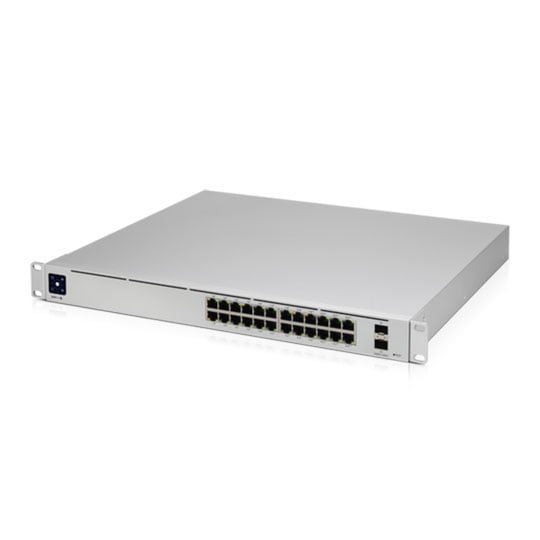

Ubiquiti UniFi 24-Port PoE Managed Gigabit Switch – USW-24-POE

The Ubiquiti UniFi 24-Port PoE Switch (USW-24-POE) is a fully managed Layer 2 Gigabit switch designed to deliver high-performance networking and reliable Power over Ethernet (PoE) for enterprise, business, educational, and hospitality environments. Featuring 24 Gigabit Ethernet ports, including 16 auto-sensing PoE+ ports, and two Gigabit SFP uplink ports, it provides flexible connectivity for access points, IP cameras, VoIP phones, and other PoE-enabled devices. Managed through the UniFi Network application, the switch offers centralized monitoring, advanced switching features, and seamless integration into the UniFi ecosystem, making it an ideal solution for scalable and efficient network deployments.

Product Features

24 Gigabit Ethernet Ports

Equipped with twenty-four 10/100/1000 Mbps RJ45 ports to provide reliable, high-speed wired connectivity for a wide range of network devices.

16 PoE+ Ports

Features sixteen IEEE 802.3af/at PoE+ ports that deliver both power and data over a single Ethernet cable, simplifying installation and reducing cable clutter.

95W Total PoE Budget

Provides a total PoE budget of 95W, allowing multiple access points, IP cameras, VoIP phones, and other compatible devices to be powered simultaneously.

Dual Gigabit SFP Uplink Ports

Includes two dedicated 1 Gbps SFP ports for high-speed fiber uplinks, enabling network expansion and reliable backbone connectivity.

Centralized UniFi Management

Managed through the UniFi Network application, allowing administrators to configure, monitor, and manage the switch alongside other UniFi devices from a single interface.

Advanced Layer 2 Switching

Supports VLANs, Link Aggregation (LACP), IGMP Snooping, Port Mirroring, Jumbo Frames, Spanning Tree Protocol (STP), Rapid Spanning Tree (RSTP), and Quality of Service (QoS) for optimized network performance.

Integrated Touchscreen Display

Features a 1.3-inch touchscreen display that provides real-time switch status, network information, and system diagnostics.

Rackmount Enterprise Design

Designed in a standard 1U rackmount form factor for easy installation in server rooms, network cabinets, and professional IT environments.

Product Specifications

• Model: USW-24-POE
• Product Type: Layer 2 Managed Gigabit PoE Switch
• Ethernet Ports: 24 × 10/100/1000 Mbps Gigabit RJ45
• PoE Ports: 16 × IEEE 802.3af/at PoE+
• Non-PoE Ports: 8 × Gigabit RJ45
• SFP Ports: 2 × 1 Gbps SFP
• Total PoE Budget: 95 W
• Switching Capacity: 52 Gbps
• Total Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 38.69 Mpps
• Layer Support: Layer 2
• Management: UniFi Network Application
• Display: 1.3-inch Touchscreen
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240 V AC
• Maximum Power Consumption: 120 W
• Mounting: 1U Rackmount
• Dimensions: 442.4 × 43.7 × 200 mm
• Weight: Approximately 3.5 kg
• Operating Temperature: -5°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Features: VLAN, Link Aggregation (LACP), IGMP Snooping, Port Mirroring, Jumbo Frames, STP, RSTP, MSTP, Flow Control, Storm Control, Access Control Lists (ACLs), and Quality of Service (QoS)

• Ideal Applications: Enterprise networks, business offices, educational institutions, hospitality environments, IP surveillance systems, wireless access point deployments, and managed UniFi network infrastructures.
