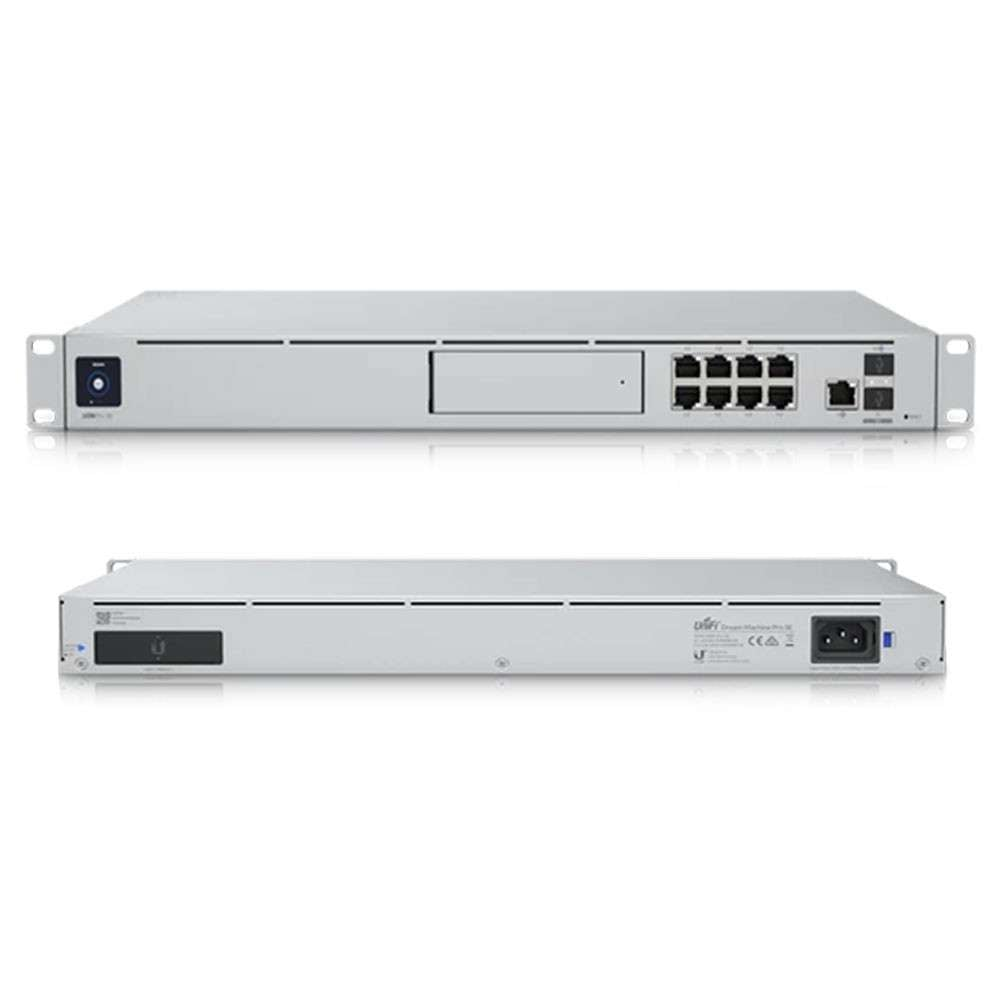

Ubiquiti UniFi Dream Machine Special Edition Enterprise Cloud Gateway – UDM-SE

The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is an enterprise-grade UniFi Cloud Gateway that combines advanced network security, centralized management, high-speed routing, PoE switching, and storage expansion into a single 1U rackmount appliance. Designed for businesses, campuses, and professional installations, it runs UniFi OS and supports UniFi Network, Protect, Access, Talk, and Connect applications. With a powerful quad-core processor, integrated 8-port Gigabit PoE switch, 10G SFP+ WAN/LAN connectivity, and an internal drive bay for surveillance storage, the UDM-SE delivers exceptional performance, scalability, and simplified network management.

Product Features

All-in-One UniFi OS Console

Runs UniFi OS and centrally manages UniFi Network, Protect, Access, Talk, and Connect applications from a single platform.

High-Performance Enterprise Gateway

Powered by a quad-core processor that delivers high-speed routing, deep packet inspection, and advanced security without compromising network performance.

Integrated 8-Port PoE Switch

Features eight Gigabit Ethernet LAN ports, including PoE+ and PoE++ support, allowing direct powering of UniFi access points, IP cameras, VoIP phones, and other PoE devices.

10 Gigabit SFP+ Connectivity

Includes dedicated 10G SFP+ WAN and LAN ports for ultra-fast fiber connectivity and high-bandwidth backbone networking.

Advanced Network Security

Provides enterprise-grade firewall protection, VLAN support, intrusion detection and prevention (IDS/IPS), VPN services, traffic management, and content filtering.

Built-In Storage Expansion

Includes a 3.5-inch HDD/SSD drive bay for installing surveillance storage to support UniFi Protect video recording.

High-Speed Multi-Gigabit WAN

Equipped with a 2.5 Gigabit RJ45 WAN port to support high-speed internet connections from modern ISPs.

Rackmount Enterprise Design

Designed in a compact 1U rackmount form factor with an integrated touchscreen display for easy deployment in professional networking environments.

Product Specifications

• Model: UDM-SE
• Product Type: Enterprise UniFi Cloud Gateway
• Processor: Quad-Core ARM Cortex-A57
• Memory: 4 GB DDR4 RAM
• Internal Storage: 32 GB eMMC Flash
• Drive Bay: 1 × 3.5-inch HDD/SSD Bay
• Display: 1.3-inch LCM Touchscreen
• WAN Ports:
  • 1 × 2.5 Gigabit RJ45 Ethernet
  • 1 × 10G SFP+
• LAN Ports:
  • 8 × 10/100/1000 Gigabit RJ45
  • 1 × 10G SFP+
• PoE Support:
  • 2 × PoE++ (IEEE 802.3bt)
  • 6 × PoE+ (IEEE 802.3at)
• Total PoE Budget: 130 W
• Maximum IDS/IPS Throughput: Up to 3.5 Gbps
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240 V AC
• Maximum Power Consumption: 240 W
• Mounting: 1U Rackmount
• Dimensions: 442.4 × 43.7 × 285.6 mm
• Weight: Approximately 4.95 kg
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Applications: UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, and UniFi Connect
• Ideal Applications: Enterprise networks, business offices, schools, hotels, surveillance systems, data centers, and high-performance UniFi deployments.
