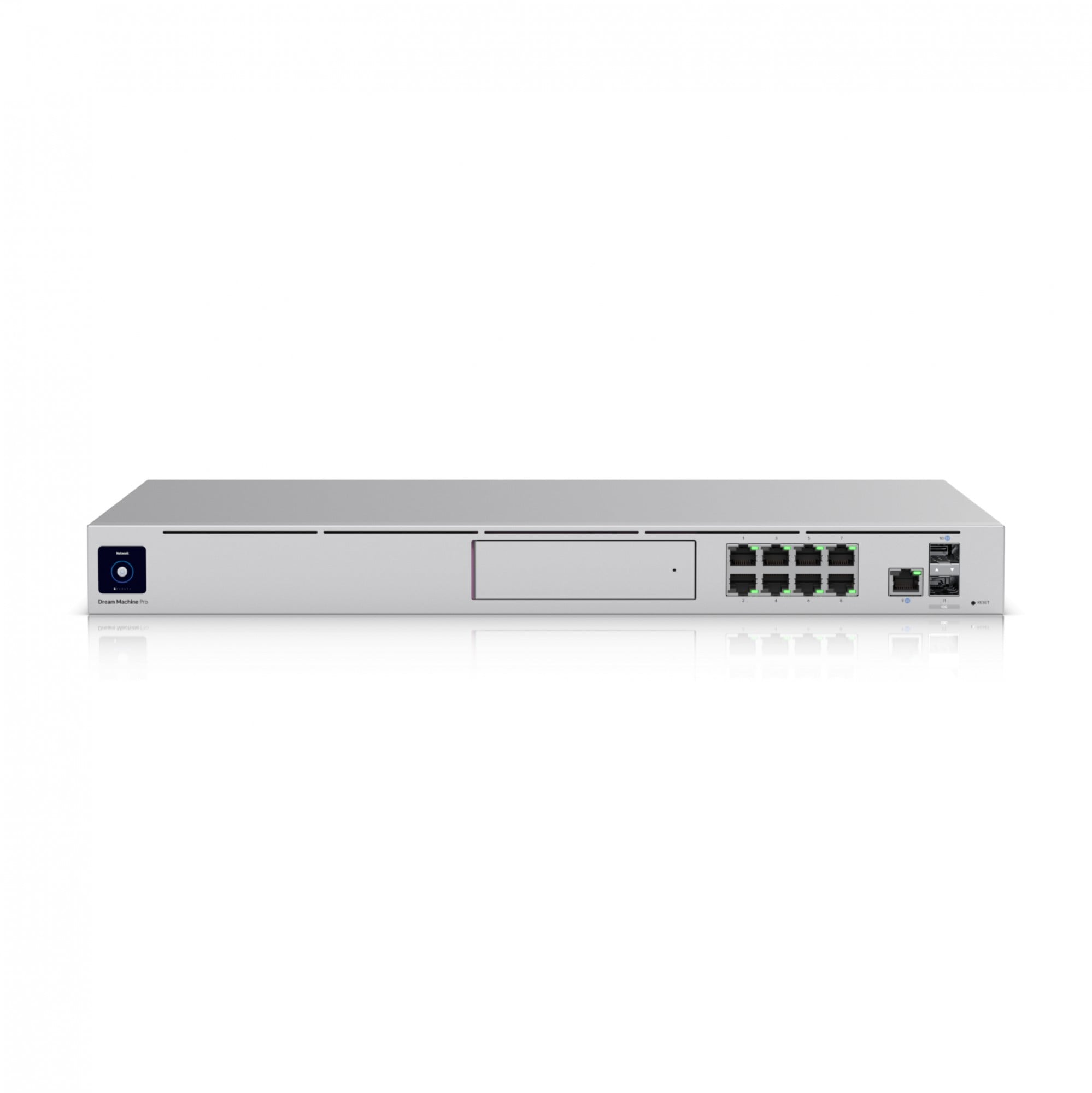

Ubiquiti UniFi Dream Machine Pro Enterprise Cloud Gateway – UDM-PRO

The Ubiquiti UniFi Dream Machine Pro (UDM-PRO) is a powerful enterprise-grade cloud gateway that combines advanced network security, high-performance routing, centralized UniFi management, and video surveillance capabilities in a single 1U rackmount appliance. Designed for medium to large businesses, educational institutions, and enterprise environments, the UDM-PRO runs UniFi OS and supports UniFi Network, Protect, Access, and Talk applications. Equipped with a high-performance quad-core processor, dual WAN connectivity, 10G SFP+ interfaces, an integrated Gigabit switch, and a 3.5-inch drive bay for surveillance storage, it provides a scalable and secure networking solution for modern organizations.

Product Features

All-in-One UniFi OS Console

Runs UniFi OS, enabling centralized management of UniFi Network, Protect, Access, and Talk applications from a single interface.

High-Performance Enterprise Gateway

Powered by a quad-core processor for fast routing, deep packet inspection, intrusion detection, and intrusion prevention without sacrificing network performance.

Advanced Network Security

Includes enterprise-grade firewall protection, VLAN support, VPN services, IDS/IPS, traffic management, and advanced threat protection.

Dual WAN Connectivity

Features a Gigabit RJ45 WAN port and a 10G SFP+ WAN port, providing flexible internet connectivity and redundancy options.

10 Gigabit SFP+ Networking

Equipped with dedicated 10G SFP+ WAN and LAN ports to support high-speed fiber connections and backbone networking.

Integrated Gigabit Switch

Includes an 8-port Gigabit Ethernet switch for connecting wired network devices directly to the gateway.

Expandable Video Storage

Features a 3.5-inch drive bay for installing an HDD or SSD to support UniFi Protect video surveillance recording.

Professional Rackmount Design

Built in a compact 1U rackmount chassis with an integrated status display, making it ideal for server rooms and network cabinets.

Product Specifications

• Model: UDM-PRO
• Product Type: Enterprise UniFi Cloud Gateway
• Processor: Quad-Core ARM Cortex-A57
• Memory: 4 GB DDR4 RAM
• Internal Storage: 16 GB eMMC Flash
• Drive Bay: 1 × 3.5-inch HDD/SSD Bay
• Display: 1.3-inch LCM Status Display
• WAN Ports:
  • 1 × 10/100/1000 Gigabit RJ45 Ethernet
  • 1 × 10G SFP+
• LAN Ports:
  • 8 × 10/100/1000 Gigabit RJ45
  • 1 × 10G SFP+
• Switching Capacity: 18 Gbps
• Total Non-Blocking Throughput: 9 Gbps
• IDS/IPS Throughput: Up to 3.5 Gbps
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240 V AC
• Maximum Power Consumption: 33 W (excluding storage drive)
• Mounting: 1U Rackmount
• Dimensions: 442.4 × 43.7 × 285.6 mm
• Weight: Approximately 3.9 kg
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Applications: UniFi Network, UniFi Protect, UniFi Access, and UniFi Talk
• Ideal Applications: Enterprise networks, business offices, educational institutions, hospitality, surveillance systems, branch offices, and high-performance UniFi deployments.
