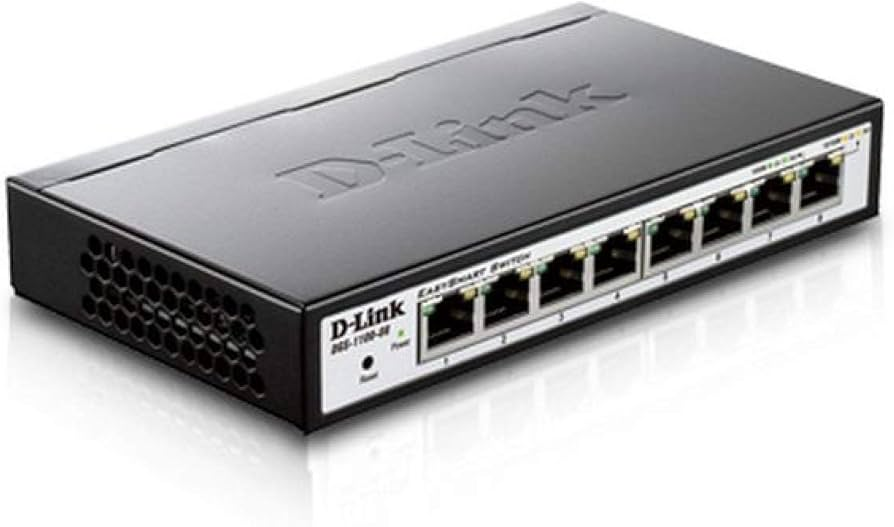

D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch

The D-Link DGS-1100-08P is an 8-port Gigabit Smart Managed PoE switch designed for small businesses, offices, retail stores, and surveillance networks. It provides Gigabit connectivity on all ports while supporting IEEE 802.3af/at Power over Ethernet to power devices such as IP cameras, wireless access points, and VoIP phones. With advanced Layer 2 management features, VLAN support, Quality of Service (QoS), and a fanless design, the DGS-1100-08P offers reliable performance, simplified network management, and energy-efficient operation.

Product Features

8 Gigabit PoE Ports

Equipped with eight 10/100/1000 Mbps Gigabit Ethernet ports, all supporting IEEE 802.3af/at PoE for both data transmission and power delivery over a single Ethernet cable.

64W Total PoE Budget

Provides a total PoE power budget of up to 64W, enabling the deployment of multiple PoE-powered devices without requiring separate power adapters.

Smart Managed Functionality

Supports web-based management with advanced networking features including VLAN, QoS, Port Mirroring, Loopback Detection, Cable Diagnostics, and IGMP Snooping.

Advanced VLAN Support

Supports IEEE 802.1Q VLAN, Port-Based VLAN, Voice VLAN, Surveillance VLAN, and Asymmetric VLAN to improve network segmentation and security.

Quality of Service (QoS)

Prioritizes latency-sensitive traffic such as voice and video to ensure stable performance for critical network applications.

Enhanced Network Security

Includes Storm Control, Static MAC, Access Control features, and Loopback Detection to improve network stability and protect against unauthorized access.

Fanless Silent Design

The fanless hardware design ensures silent operation, making it suitable for office environments, classrooms, and meeting rooms.

Energy-Efficient Technology

Supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption during periods of low network activity.

Product Specifications

• Model: DGS-1100-08P
• Switch Type: Smart Managed Gigabit PoE Switch
• Ethernet Ports: 8 × 10/100/1000 Mbps Gigabit RJ45 PoE Ports
• PoE Standards: IEEE 802.3af and IEEE 802.3at
• Total PoE Budget: 64W
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K entries
• Packet Buffer Memory: 1.5 Mbits
• Jumbo Frame Support: Up to 9,216 Bytes
• VLAN Support: IEEE 802.1Q, Port-Based VLAN, Voice VLAN, Surveillance VLAN, Asymmetric VLAN
• Quality of Service: 802.1p QoS
• IGMP Snooping: Supported
• Loopback Detection: Supported
• Cable Diagnostics: Supported
• Port Mirroring: Supported
• Storm Control: Supported
• Management Interface: Web-Based GUI
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet
• Cooling: Fanless
• Power Input: 100–240V AC, 50/60 Hz
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Dimensions: 190 × 120 × 38 mm
• Mounting Options: Desktop
• Ideal Applications: Small business networks, IP surveillance systems, wireless access point deployments, VoIP installations, and office networking.
