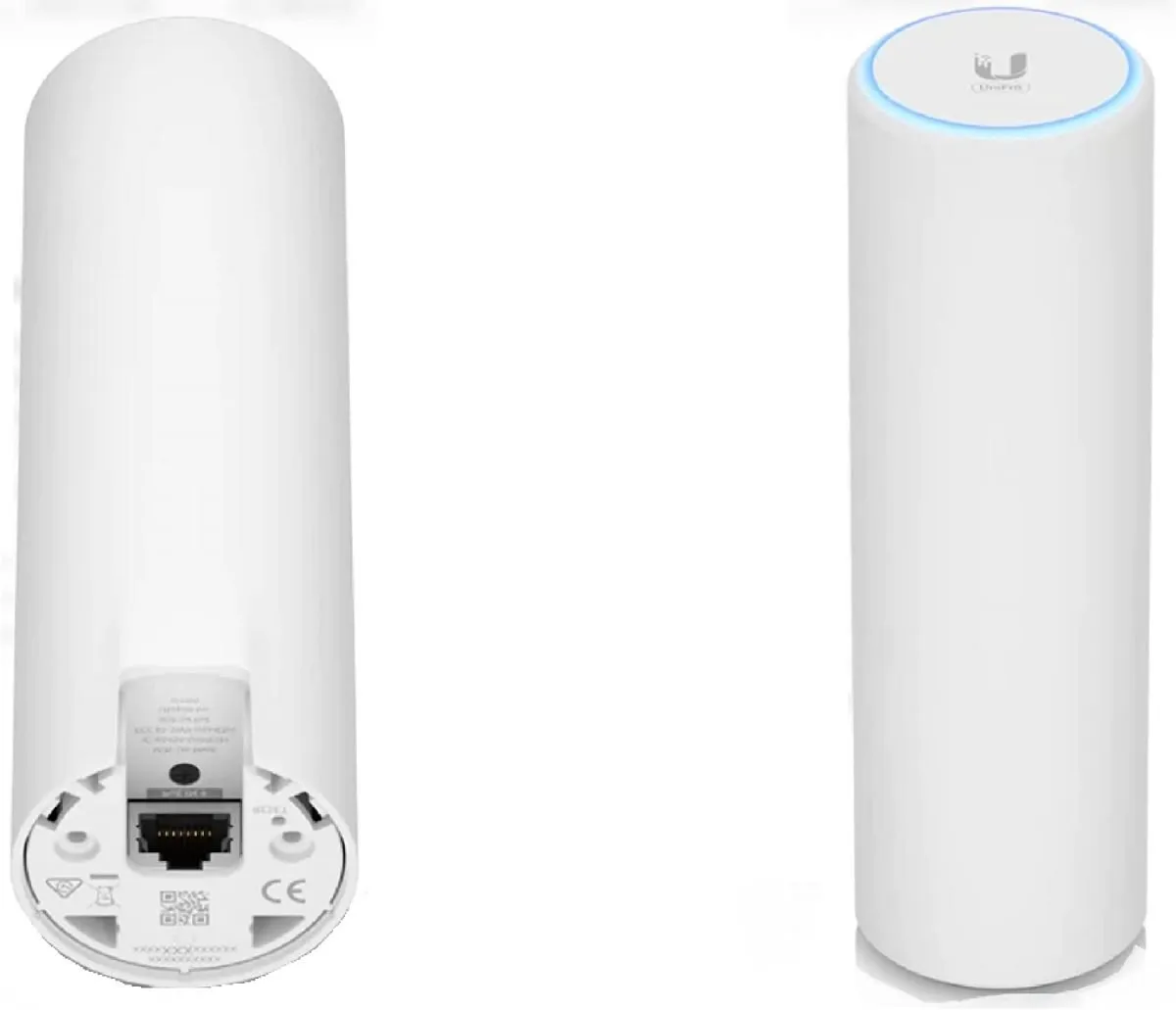

Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-Mesh)

The Ubiquiti UniFi U6-Mesh is a high-performance dual-band WiFi 6 access point designed for seamless indoor and outdoor wireless networking. Featuring advanced WiFi 6 (802.11ax) technology, it delivers higher throughput, improved efficiency, and enhanced performance in high-density environments. Its compact weather-resistant design allows flexible deployment on desktops, walls, poles, or outdoor installations. Powered via IEEE 802.3af PoE, the U6-Mesh integrates seamlessly with the UniFi Network Controller for centralized configuration, monitoring, and management, making it an ideal solution for homes, offices, campuses, retail spaces, and hospitality environments.

Product Features

Dual-Band WiFi 6 Performance

Supports simultaneous 2.4 GHz and 5 GHz wireless bands with WiFi 6 technology, delivering faster speeds, lower latency, and improved network efficiency.

Mesh Networking Capability

Supports wireless mesh networking, allowing multiple UniFi access points to work together to extend wireless coverage without requiring additional Ethernet cabling.

Indoor and Outdoor Deployment

Built with a weather-resistant enclosure suitable for both indoor and outdoor installations, ensuring reliable operation in various environments.

High-Speed Gigabit Ethernet

Equipped with a Gigabit Ethernet RJ45 port for fast and reliable wired network connectivity.

802.3af PoE Power

Powered using IEEE 802.3af Power over Ethernet, simplifying installation by combining power and data over a single Ethernet cable.

Advanced WiFi 6 Technologies

Incorporates OFDMA and MU-MIMO technologies to improve network capacity, reduce congestion, and support multiple simultaneous wireless connections efficiently.

Centralized UniFi Management

Managed through the UniFi Network Controller, enabling centralized configuration, monitoring, firmware updates, and network optimization.

Flexible Mounting Options

Supports desktop placement, wall mounting, and pole mounting, providing versatile installation options for a variety of deployment scenarios.

Product Specifications

• Model: U6-Mesh
• Product Type: Dual-Band WiFi 6 Mesh Access Point
• WiFi Standard: IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
• Frequency Bands:
  • 4 GHz
  • 5 GHz
• MIMO Configuration:
  • 4 GHz: 2×2 MU-MIMO
  • 5 GHz: 4×4 MU-MIMO
• Maximum Data Rate:
  • 4 GHz: Up to 573.5 Mbps
  • 5 GHz: Up to 4.8 Gbps
• Aggregate Throughput: Up to 5.4 Gbps
• Ethernet Port: 1 × 10/100/1000 Mbps Gigabit RJ45
• Power Method: IEEE 802.3af PoE
• Maximum Power Consumption: 11.4 W
• Antenna Type: Integrated Omni-Directional Antennas
• Wireless Security: WPA, WPA2, WPA3
• VLAN Support: IEEE 802.1Q
• Mesh Networking: Supported
• Management: UniFi Network Controller
• Mounting Options: Desktop, Wall Mount, or Pole Mount
• Weather Resistance: Suitable for Indoor and Outdoor Use
• Operating Temperature: -30°C to 60°C
• Dimensions: 48.5 × 159.5 mm
• Weight: Approximately 400 g
• Ideal Applications: Homes, offices, retail stores, hotels, campuses, warehouses, outdoor public areas, hospitality venues, and enterprise wireless networks.
