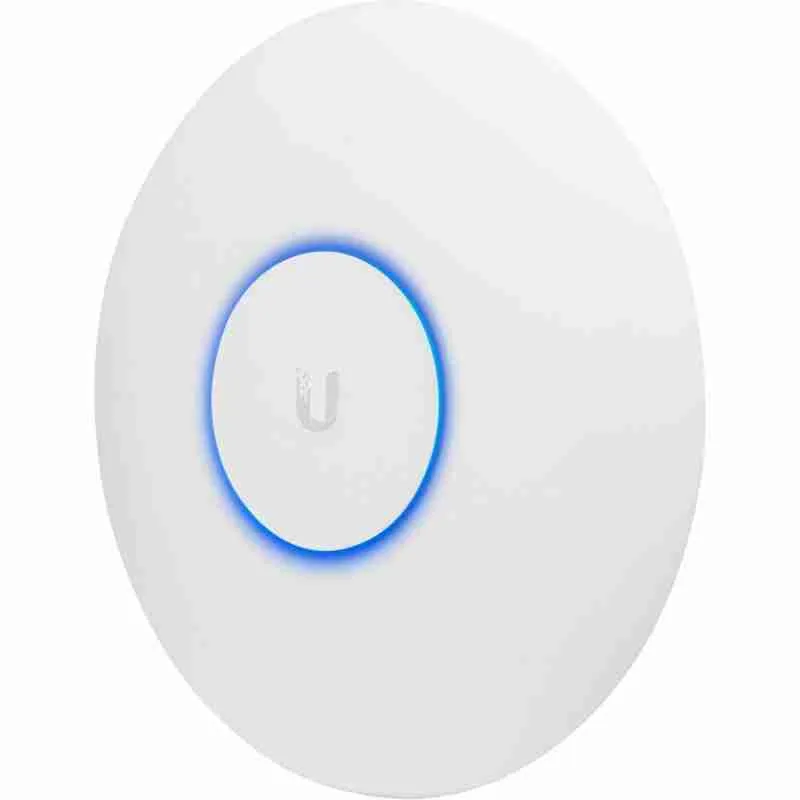

Ubiquiti UniFi AP AC Pro Indoor/Outdoor Access Point (UAP-AC-PRO)

The Ubiquiti UniFi AP AC Pro (UAP-AC-PRO) is a high-performance dual-band WiFi 5 access point designed for both indoor and protected outdoor deployments. Featuring 3×3 MIMO technology on both the 2.4 GHz and 5 GHz bands, it delivers fast wireless performance, reliable coverage, and seamless roaming for business, educational, hospitality, and enterprise environments. Powered via IEEE 802.3af/at PoE, the access point integrates with the UniFi Network Controller for centralized management, monitoring, and firmware updates.

Product Features

Dual-Band WiFi 5 Connectivity

Supports simultaneous 2.4 GHz and 5 GHz wireless bands using IEEE 802.11ac technology for high-speed and reliable wireless networking.

3×3 MIMO Technology

Utilizes 3×3 MIMO on both frequency bands to improve throughput, coverage, and network efficiency in high-density environments.

Gigabit Ethernet Connectivity

Features two Gigabit Ethernet RJ45 ports, enabling high-speed wired connectivity and flexible network integration.

802.3af/at PoE Support

Powered using IEEE 802.3af or IEEE 802.3at Power over Ethernet, simplifying installation by delivering power and data over a single Ethernet cable.

Indoor and Protected Outdoor Deployment

Designed for indoor use and outdoor installation in protected locations such as under eaves or covered ceilings, offering flexible deployment options.

Centralized UniFi Management

Managed through the UniFi Network Controller, allowing centralized configuration, monitoring, firmware updates, and performance optimization across multiple access points.

Seamless Roaming

Supports fast roaming and advanced wireless optimization features to provide uninterrupted connectivity for mobile users.

High Client Capacity

Designed to support more than 250 concurrent wireless clients, making it suitable for offices, schools, hotels, retail spaces, and other high-density environments.

Product Specifications

• Model: UAP-AC-PRO
• Product Type: Dual-Band Wireless Access Point
• WiFi Standard: IEEE 802.11a/b/g/n/ac (WiFi 5)
• Frequency Bands:
  • 4 GHz
  • 5 GHz
• MIMO Configuration:
  • 4 GHz: 3×3 MIMO
  • 5 GHz: 3×3 MIMO
• Maximum Data Rate:
  • 4 GHz: Up to 450 Mbps
  • 5 GHz: Up to 1.3 Gbps
• Aggregate Throughput: Up to 1.75 Gbps
• Ethernet Ports: 2 × 10/100/1000 Mbps Gigabit RJ45
• Power Method: IEEE 802.3af/802.3at PoE
• Maximum Power Consumption: 9 W
• Antennas: 3 × Dual-Band Integrated Antennas (3 dBi)
• Coverage Area: Up to 140 m²
• Maximum Client Capacity: 250+ Devices
• Wireless Security: WEP, WPA, WPA2, WPA-Enterprise
• VLAN Support: IEEE 802.1Q
• Quality of Service: WMM
• Management: UniFi Network Controller
• Mounting Options: Ceiling Mount or Wall Mount
• Operating Temperature: -10°C to 70°C
• Dimensions: 196.7 × 196.7 × 35 mm
• Weight: 350 g (450 g with mounting kit)

• Ideal Applications: Enterprise offices, schools, hotels, retail stores, healthcare facilities, warehouses, campuses, and high-density wireless networks.
