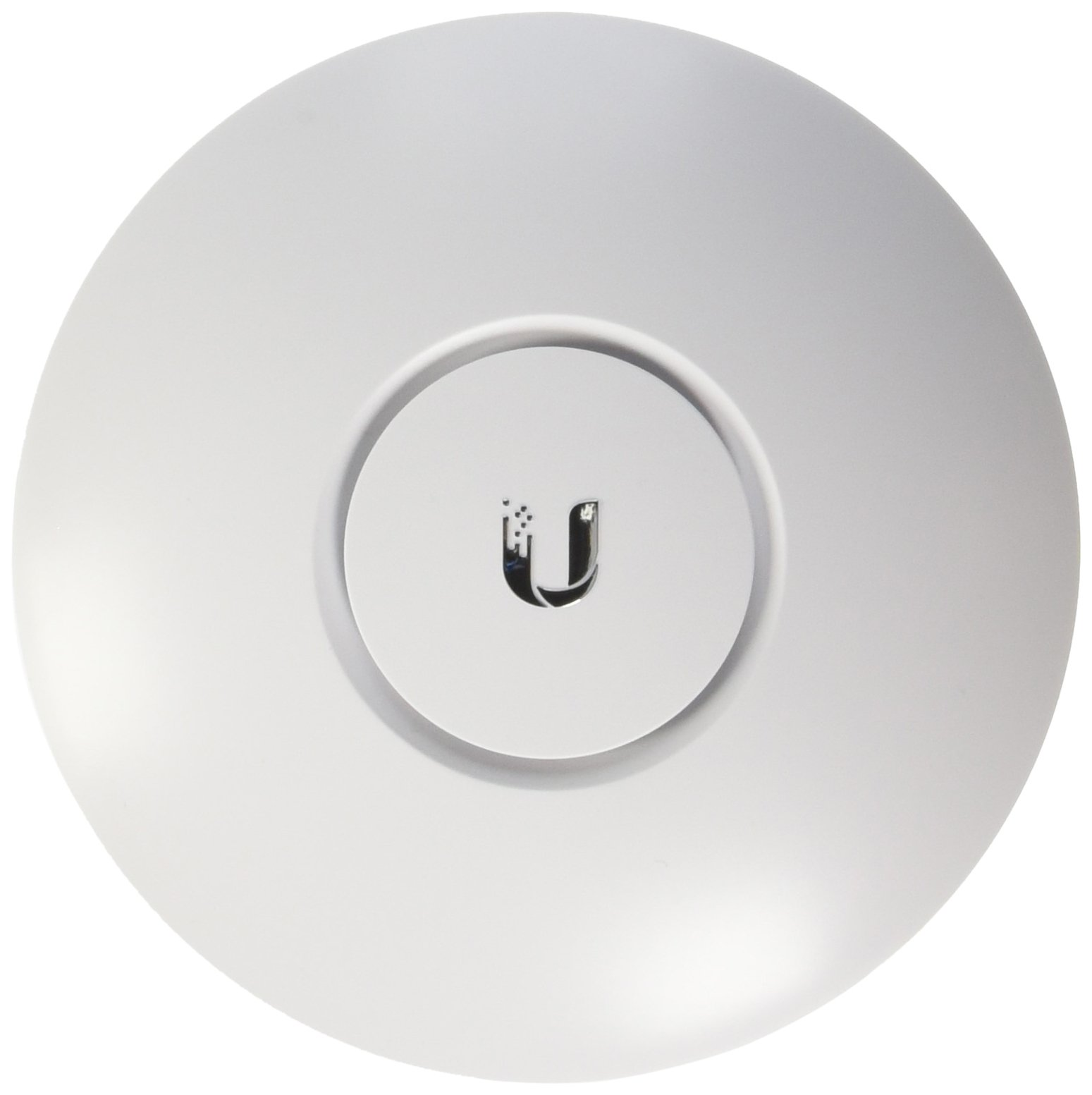

Ubiquiti UniFi AP AC Lite Indoor Access Point (UAP-AC-Lite)

The Ubiquiti UniFi AP AC Lite (UAP-AC-Lite) is a compact, high-performance dual-band WiFi 5 access point designed for small businesses, offices, educational institutions, retail stores, and home deployments. Utilizing IEEE 802.11ac technology, it provides fast and reliable wireless connectivity with improved efficiency and broad coverage. Powered via IEEE 802.3af PoE, the UAP-AC-Lite supports simple installation using a single Ethernet cable for both power and data. It integrates seamlessly with the UniFi Network application, allowing centralized configuration, monitoring, and management of multiple access points.

Product Features

Dual-Band WiFi 5 Connectivity

Supports simultaneous 2.4 GHz and 5 GHz wireless bands, delivering fast and stable wireless performance for a variety of connected devices.

High-Speed Wireless Performance

Provides an aggregate wireless throughput of up to 1.16 Gbps, making it ideal for web browsing, video streaming, VoIP, and business applications.

2×2 MIMO Technology

Equipped with 2×2 MIMO on both frequency bands to improve wireless efficiency, coverage, and overall network performance.

Gigabit Ethernet Port

Features a 10/100/1000 Mbps Gigabit Ethernet RJ45 port for reliable high-speed wired connectivity.

IEEE 802.3af PoE Support

Supports IEEE 802.3af Power over Ethernet, simplifying installation by delivering power and network connectivity over a single Ethernet cable.

Centralized UniFi Management

Managed through the UniFi Network application, enabling centralized configuration, monitoring, firmware updates, guest management, and network optimization.

Seamless Wireless Roaming

Supports fast roaming and advanced wireless optimization to provide uninterrupted connectivity for users moving throughout the network.

Compact Ceiling and Wall Mount Design

Includes mounting hardware for ceiling or wall installation, providing flexible deployment options while maintaining a clean, professional appearance.

Product Specifications

• Model: UAP-AC-Lite
• Product Type: Indoor Dual-Band Wireless Access Point
• WiFi Standard: IEEE 802.11a/b/g/n/ac (WiFi 5)
• Frequency Bands:
  • 4 GHz
  • 5 GHz
• MIMO Configuration:
  • 4 GHz: 2×2 MIMO
  • 5 GHz: 2×2 MIMO
• Maximum Data Rate:
  • 4 GHz: Up to 300 Mbps
  • 5 GHz: Up to 867 Mbps
• Aggregate Wireless Throughput: Up to 1.167 Gbps
• Ethernet Port: 1 × 10/100/1000 Mbps Gigabit RJ45
• Power Method: IEEE 802.3af PoE
• Maximum Power Consumption: 6.5 W
• Antenna Gain:
  • 4 GHz: 3 dBi
  • 5 GHz: 3 dBi
• Coverage Area: Up to 115 m²
• Maximum Client Capacity: 200+ Devices
• Wireless Security: WPA, WPA2
• VLAN Support: IEEE 802.1Q
• Quality of Service: WMM
• Management: UniFi Network Application
• Mounting Options: Ceiling Mount or Wall Mount
• Operating Temperature: -10°C to 70°C
• Dimensions: 160 × 160 × 31.5 mm
• Weight: 170 g

• Ideal Applications: Small and medium-sized businesses, offices, schools, retail stores, hotels, cafés, and other indoor wireless networking environments.
