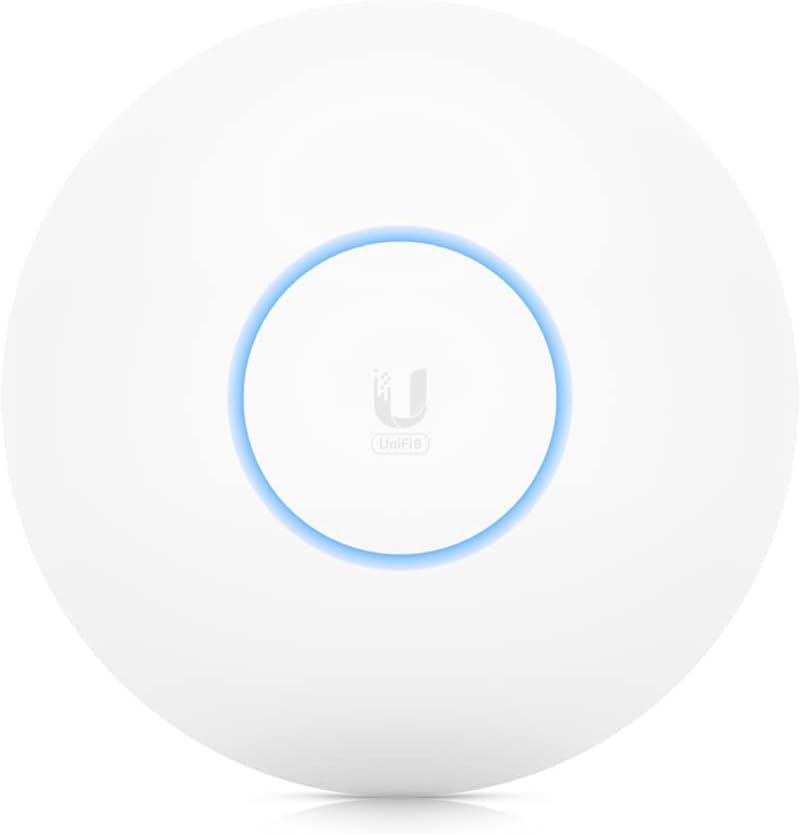

Ubiquiti UniFi U6 LR Long-Range WiFi 6 Access Point

The Ubiquiti UniFi U6 LR (Long-Range) is a high-performance dual-band WiFi 6 access point designed to deliver extended wireless coverage and reliable connectivity in enterprise, commercial, and high-density environments. Featuring advanced 4×4 MIMO technology on both the 2.4 GHz and 5 GHz bands, the U6 LR provides enhanced capacity, improved network efficiency, and excellent performance for hundreds of connected devices. Powered via IEEE 802.3at PoE+ and managed through the UniFi Network application, it is ideal for offices, schools, hotels, healthcare facilities, and large indoor wireless deployments.

Product Features

Dual-Band WiFi 6 Performance

Supports simultaneous 2.4 GHz and 5 GHz wireless bands using WiFi 6 (IEEE 802.11ax) technology for faster speeds, lower latency, and improved efficiency.

Long-Range Wireless Coverage

Provides wireless coverage of up to 185 m², making it suitable for large indoor spaces and high-density deployments.

Advanced 4×4 MIMO Technology

Features 4×4 MIMO on both the 2.4 GHz and 5 GHz bands for improved throughput and efficient handling of multiple simultaneous wireless connections.

Gigabit Ethernet Connectivity

Equipped with a Gigabit Ethernet RJ45 port for reliable high-speed wired network connectivity.

IEEE 802.3at PoE+ Support

Powered via IEEE 802.3at PoE+, simplifying installation by transmitting power and data over a single Ethernet cable.

High Client Capacity

Designed to support more than 350 concurrent wireless clients, making it ideal for demanding enterprise and commercial environments.

Centralized UniFi Management

Seamlessly integrates with the UniFi Network application for centralized configuration, monitoring, firmware updates, and performance optimization.

Ceiling and Wall Mount Design

Includes mounting hardware for ceiling or wall installation, providing flexible deployment and optimal wireless coverage.

Product Specifications

• Model: U6 LR
• Product Type: Dual-Band WiFi 6 Access Point
• WiFi Standard: IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
• Frequency Bands:
  • 4 GHz
  • 5 GHz
• MIMO Configuration:
  • 4 GHz: 4×4 MIMO
  • 5 GHz: 4×4 MU-MIMO
• Maximum Data Rate:
  • 4 GHz: Up to 600 Mbps
  • 5 GHz: Up to 2.4 Gbps
• Aggregate Wireless Throughput: Up to 3.0 Gbps
• Ethernet Port: 1 × 10/100/1000 Mbps Gigabit RJ45
• Power Method: IEEE 802.3at PoE+
• Maximum Power Consumption: 18.5 W
• Coverage Area: Up to 185 m²
• Maximum Client Capacity: 350+ Devices
• Wireless Security: WPA, WPA2, WPA3
• VLAN Support: IEEE 802.1Q
• Wireless Meshing: Supported
• Fast Roaming: Supported
• Management: UniFi Network Application
• Mounting Options: Ceiling Mount or Wall Mount
• Weather Resistance: IP54 Rated
• Operating Temperature: -30°C to 60°C
• Dimensions: 220 × 220 × 48 mm
• Weight:
  • Access Point Only: 800 g
  • With Mount: 930 g

• Ideal Applications: Enterprise offices, educational institutions, hotels, healthcare facilities, retail stores, warehouses, campuses, conference rooms, and high-density indoor wireless networks.
