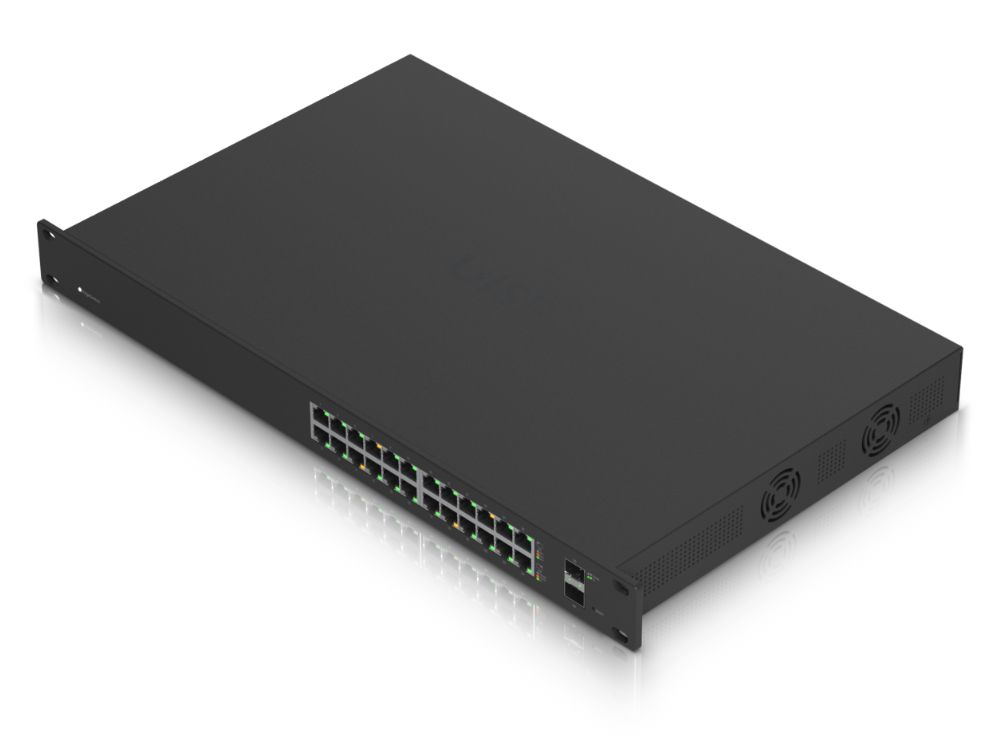

Ubiquiti EdgeSwitch 24-Port 250W Managed Gigabit PoE Switch – ES-24-250W

The Ubiquiti EdgeSwitch 24-Port 250W (ES-24-250W) is a fully managed Layer 2 Gigabit PoE switch designed for enterprise networks, small and medium-sized businesses, educational institutions, hospitality environments, and surveillance systems. It features 24 Gigabit Ethernet ports with configurable PoE support and two Gigabit SFP uplink ports for high-speed fiber connectivity. Powered by the EdgeSwitch operating system, the switch delivers advanced switching capabilities, comprehensive network management, and a generous 250W PoE budget, making it ideal for powering wireless access points, IP cameras, VoIP phones, and other PoE-enabled devices.

Product Features

24 Gigabit Ethernet Ports

Provides twenty-four 10/100/1000 Mbps RJ45 ports for reliable, high-speed wired connectivity to computers, servers, wireless access points, IP cameras, and other network devices.

250W PoE Power Budget

Offers a total PoE budget of 250W, allowing multiple PoE-enabled devices to receive power and data through a single Ethernet cable.

Configurable PoE Output

Supports IEEE 802.3af, IEEE 802.3at PoE+, and 24V Passive PoE, providing compatibility with a wide range of Ubiquiti and third-party networking devices.

Dual Gigabit SFP Uplink Ports

Equipped with two dedicated 1 Gbps SFP ports for fiber uplinks, switch aggregation, and high-speed backbone connections.

Advanced Layer 2 Switching

Supports VLANs, Link Aggregation (LACP), Quality of Service (QoS), IGMP Snooping, Jumbo Frames, Port Mirroring, and Spanning Tree Protocols for efficient network management.

Comprehensive Management Interface

Managed through an intuitive web-based graphical interface and command-line interface (CLI), providing flexible configuration and monitoring options.

Rackmount Enterprise Design

Built in a standard 1U rackmount chassis for easy installation in network cabinets and server racks.

Reliable Business Performance

Designed for continuous operation in demanding environments, delivering stable and secure networking for business-critical applications.

Product Specifications

• Model: ES-24-250W
• Product Type: Managed Layer 2 Gigabit PoE Switch
• Ethernet Ports: 24 × 10/100/1000 Mbps Gigabit RJ45
• SFP Ports: 2 × 1 Gbps SFP
• PoE Standards: IEEE 802.3af, IEEE 802.3at, and 24V Passive PoE
• PoE Ports: 24 × Configurable PoE
• Total PoE Budget: 250 W
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Layer Support: Layer 2
• Management Interfaces: Web UI and Command-Line Interface (CLI)
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240 V AC, 50/60 Hz
• Maximum Power Consumption: 250 W (PoE Output Dependent)
• Cooling: Active Fan Cooling
• Mounting: 1U Rackmount
• Dimensions: 485 × 43.7 × 285 mm
• Weight: Approximately 4.8 kg
• Operating Temperature: -5°C to 45°C
• Operating Humidity: 5% to 95% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Features: VLAN, Link Aggregation (LACP), Access Control Lists (ACLs), Quality of Service (QoS), IGMP Snooping, Port Mirroring, Jumbo Frames, STP, RSTP, MSTP, DHCP Snooping, Storm Control, and Flow Control

• Ideal Applications: Enterprise networks, business offices, educational institutions, hospitality, wireless ISP deployments, surveillance systems, and professional wired networking environments.
