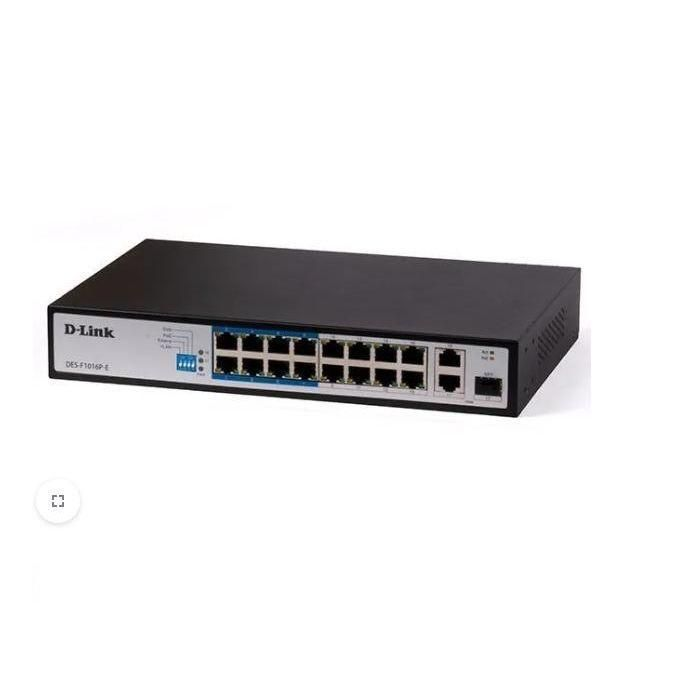

D-Link DES-F1016P-E 16-Port Fast Ethernet Unmanaged Long Range 250m PoE+ Surveillance Switch

The D-Link DES-F1016P-E is a 16-port Fast Ethernet unmanaged PoE+ surveillance switch designed for IP surveillance systems, small business networks, and long-distance PoE deployments. It features sixteen 10/100 Mbps PoE ports, Gigabit uplink connectivity, and support for transmission distances of up to 250 meters in Extend Mode. With a 150W PoE power budget, plug-and-play installation, and dedicated surveillance features such as VLAN isolation, QoS, and PoE watchdog, this switch provides reliable connectivity for IP cameras, wireless access points, and other PoE-enabled devices.

Product Features

16 Fast Ethernet PoE Ports

Equipped with sixteen 10/100 Mbps RJ45 ports supporting IEEE 802.3af and IEEE 802.3at Power over Ethernet, allowing both power and data transmission over a single Ethernet cable.

Long-Range PoE Transmission

Supports Extend Mode, enabling PoE and data transmission of up to 250 meters, making it ideal for surveillance installations where cameras are located far from the switch.

150W Total PoE Budget

Provides a total PoE power budget of up to 150W, allowing multiple PoE-powered devices such as IP cameras, wireless access points, and VoIP phones to operate simultaneously.

Gigabit Uplink Ports

Includes two Gigabit uplink ports with one Combo RJ45/SFP interface, ensuring high-speed connectivity to the core network and reducing uplink bottlenecks.

Plug-and-Play Deployment

The unmanaged design requires no configuration, allowing for quick installation and immediate operation.

Built-In Surveillance Modes

Features DIP switch-controlled operating modes including Extend Mode for long-distance transmission, VLAN Mode for port isolation, QoS Mode for prioritizing surveillance traffic, and PoE Watchdog Mode for automatic recovery of unresponsive powered devices.

Reliable Network Performance

Supports IEEE 802.3x Flow Control and Auto MDI/MDIX to optimize data transmission and simplify cable connections.

Fanless Metal Design

The fanless metal chassis provides silent operation, enhanced durability, and improved heat dissipation for continuous operation in demanding environments.

Product Specifications

• Model: DES-F1016P-E
• Switch Type: Unmanaged Fast Ethernet PoE+ Surveillance Switch
• Ethernet Ports: 16 × 10/100 Mbps RJ45 PoE Ports
• Uplink Ports: 2 × Gigabit Uplink Ports (1 × RJ45 and 1 × Combo RJ45/SFP)
• PoE Standards: IEEE 802.3af and IEEE 802.3at
• Total PoE Budget: 150W
• Maximum PoE Distance: Up to 250 meters (Extend Mode)
• Switching Capacity: 7.2 Gbps
• Packet Forwarding Rate: 3.868 Mpps
• Flow Control: IEEE 802.3x
• Auto MDI/MDIX: Supported
• Lightning Protection: 6 kV
• Operating Modes: Standard Mode, Extend Mode, VLAN Mode, QoS Mode, PoE Watchdog Mode
• Cooling: Fanless
• Power Input: 100–240V AC, 50/60 Hz
• Dimensions: 285 × 180 × 44 mm
• Weight: 2.1 kg
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Mounting Options: Desktop or Rack Mount
• Ideal Applications: IP surveillance systems, CCTV installations, wireless access point deployments, VoIP networks, and small to medium-sized business environments.
