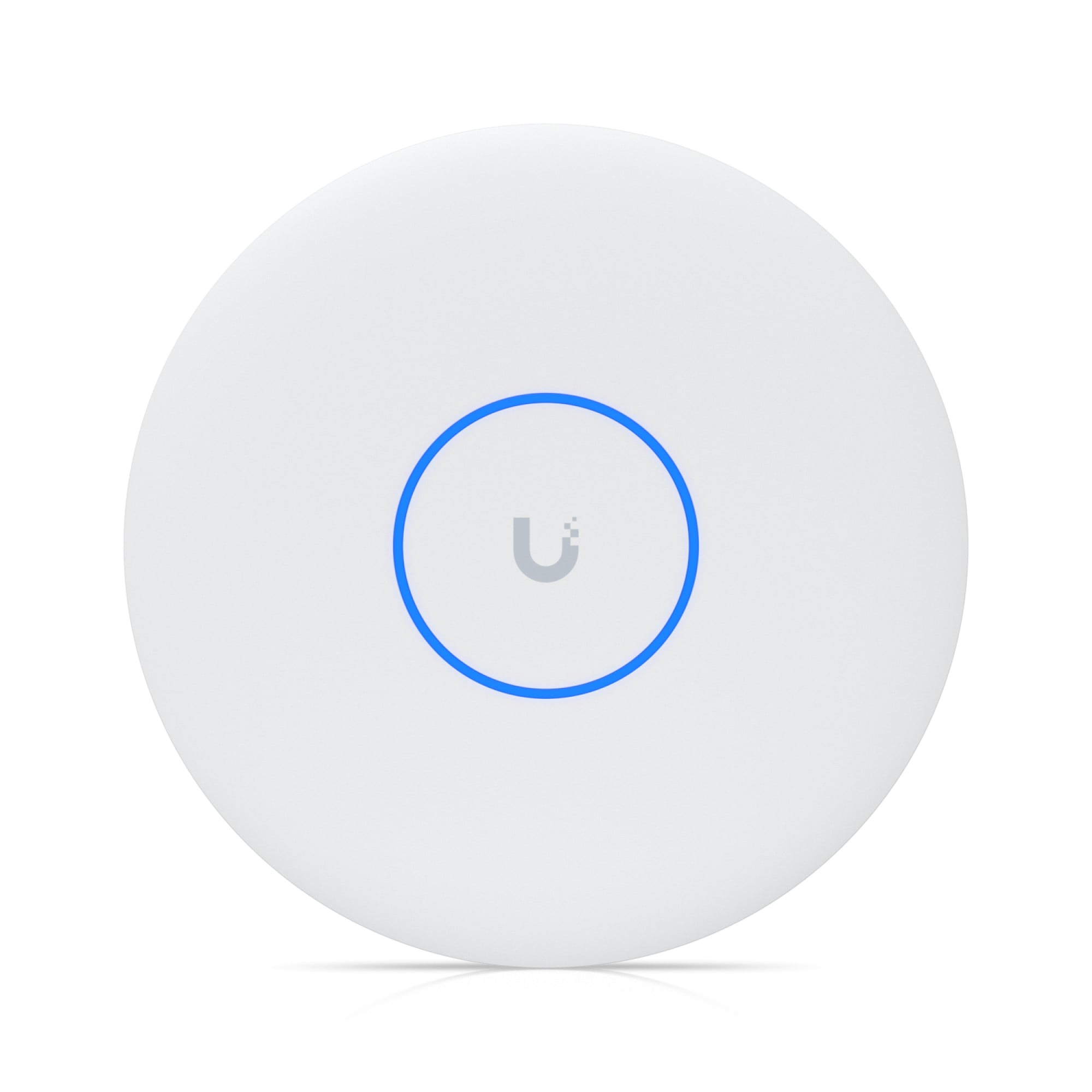

UniFi U7 Pro XGS WiFi 7 Access Point U7-Pro-XGS

The UniFi U7 Pro XGS WiFi 7 Access Point U7-Pro-XGS is a high-performance, ceiling-mounted wireless access point designed for enterprise, business, and high-density network environments. It combines WiFi 7 with 8 spatial streams, tri-band 2.4 GHz, 5 GHz, and 6 GHz connectivity, a dedicated spectral scanning radio, and a flexible 10/5/2.5/1 GbE uplink. The U7-Pro-XGS provides advanced wireless performance, network visibility, and multi-gigabit wired connectivity for demanding deployments such as offices, schools, hotels, commercial buildings, and large residential properties.

Product Features

WiFi 7 Performance

Provides high-speed wireless connectivity with improved throughput, lower latency, and greater network efficiency for modern WiFi 7 devices.

8 Spatial Streams

The 8-stream architecture provides increased wireless capacity and enables efficient connectivity for multiple users and devices simultaneously.

Tri-Band Connectivity

Supports 2.4 GHz, 5 GHz, and 6 GHz bands, providing greater capacity and access to additional high-speed wireless spectrum.

Dedicated Spectral Scanning Radio

The dedicated scanning radio continuously analyzes the wireless environment to help identify interference, congestion, and other RF conditions without significantly impacting client connectivity.

10/5/2.5/1 GbE Uplink

The multi-gigabit Ethernet port supports 10 Gbps, 5 Gbps, 2.5 Gbps, and 1 Gbps connections, allowing flexible integration with different network infrastructure.

6 GHz WiFi Support

The 6 GHz band provides additional spectrum for compatible WiFi 6E and WiFi 7 devices, helping reduce congestion and improve wireless performance.

Advanced WiFi 7 Features

Supports modern WiFi 7 technologies designed to improve throughput, responsiveness, spectrum efficiency, and performance with compatible devices.

Ceiling-Mounted Design

The low-profile ceiling-mounted design provides discreet installation and helps distribute wireless coverage efficiently throughout indoor spaces.

Centralized UniFi Management

The access point can be configured, monitored, and managed through the UniFi Network platform, providing centralized control of wireless networks, connected clients, security, and device settings.

Product Specifications

• Brand: Ubiquiti
• Product line: UniFi
• Model: U7-Pro-XGS
• Product type: Enterprise WiFi 7 access point
• Wireless standard: WiFi 7
• Wireless bands: 2.4 GHz, 5 GHz, and 6 GHz
• Spatial streams: 8
• Dedicated spectral scanning radio: Yes
• Ethernet uplink: 1 x 10/5/2.5/1 GbE
• Maximum Ethernet speed: 10 Gbps
• 6 GHz support: Yes
• Mounting type: Ceiling mount
• Antenna system: Integrated multi-band antennas
• Power method: Power over Ethernet
• Management platform: UniFi Network
• Installation environment: Indoor
• Wireless monitoring: Dedicated spectrum analysis
• Applications: Enterprise networks, offices, schools, hotels, commercial buildings, high-density residential properties, and large wireless deployments
• Recommended use: High-performance WiFi 7 networking, multi-gigabit wireless infrastructure, RF monitoring, and high-density client connectivity
