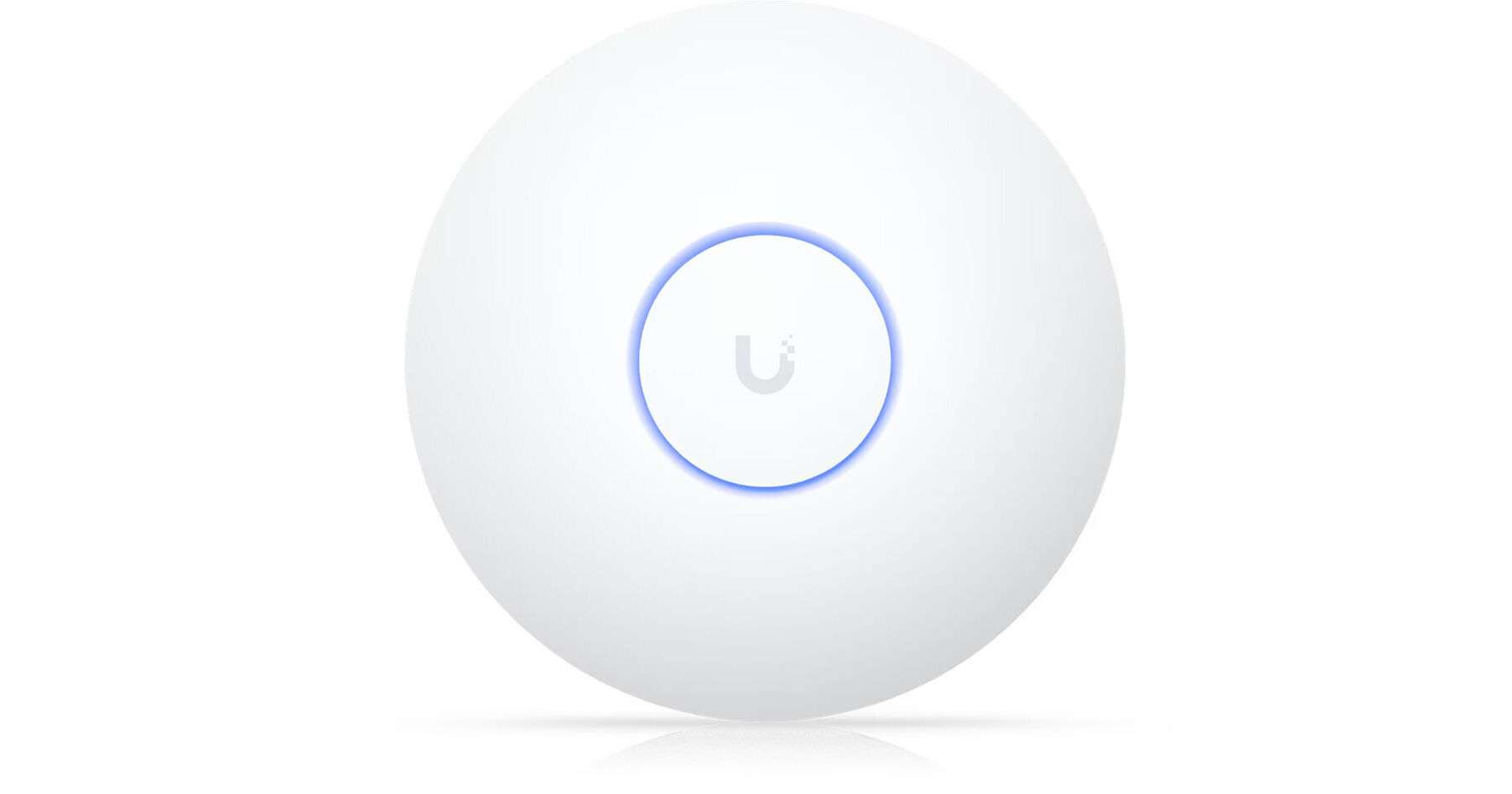

Ubiquiti UniFi WiFi 7 Long-Range Access Point U7-LR

The Ubiquiti UniFi U7-LR is a dual-band WiFi 7 access point designed for fast, reliable, and extended wireless coverage in homes, offices, businesses, and other indoor environments. It delivers up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, supports 300+ clients, and features a 2.5 GbE uplink for high-speed network connectivity. With PoE power, wireless meshing, advanced roaming, and centralized UniFi Network management, the U7-LR is an ideal solution for demanding wireless networks.

Product Features

WiFi 7 Performance

Provides faster speeds, improved efficiency, and increased capacity with WiFi 7 technology while supporting compatible previous-generation WiFi devices.

Long-Range Coverage

Covers up to 160 m² (1,750 ft²), making it suitable for larger homes, offices, classrooms, and commercial spaces.

High-Speed Wireless

The 5 GHz 3×3 MIMO radio delivers up to 4.3 Gbps, while the 2.4 GHz 2×2 MIMO radio delivers up to 688 Mbps.

2.5 GbE Uplink

The 2.5 GbE Ethernet port provides a high-speed wired connection and helps prevent network bottlenecks when handling high-speed WiFi traffic.

300+ Client Support

Designed to accommodate more than 300 connected devices, including laptops, smartphones, tablets, IoT devices, and other wireless clients.

UniFi Network Management

Centralized management through UniFi Network provides control over wireless settings, connected clients, access points, and network performance.

PoE Powered

Power and data can be delivered through a single Ethernet cable, simplifying installation and reducing the need for separate power connections.

Wireless Meshing and Fast Roaming

Supports wireless meshing plus 802.11r, 802.11k, and 802.11v technologies for flexible coverage expansion and smoother client roaming.

Product Specifications

• Brand: Ubiquiti
• Model: U7-LR
• Product type: WiFi 7 Long-Range Access Point
• WiFi standard: WiFi 7 (802.11be)
• Wireless bands: 2.4 GHz and 5 GHz
• 5 GHz MIMO: 3×3
• 2.4 GHz MIMO: 2×2
• Maximum 5 GHz speed: 4.3 Gbps
• Maximum 2.4 GHz speed: 688 Mbps
• Coverage: Up to 160 m² (1,750 ft²)
• Client capacity: 300+
• Ethernet: 1 x 2.5 GbE RJ45
• Power: PoE
• Maximum power consumption: 14 W
• Mounting: Ceiling or wall
• Dimensions: 175.7 x 43 mm
• Weight: 448 g
• Operating temperature: -30°C to 50°C
• Operating humidity: 5% to 95%, non-condensing
• Management: UniFi Network
• Deployment: Indoor
