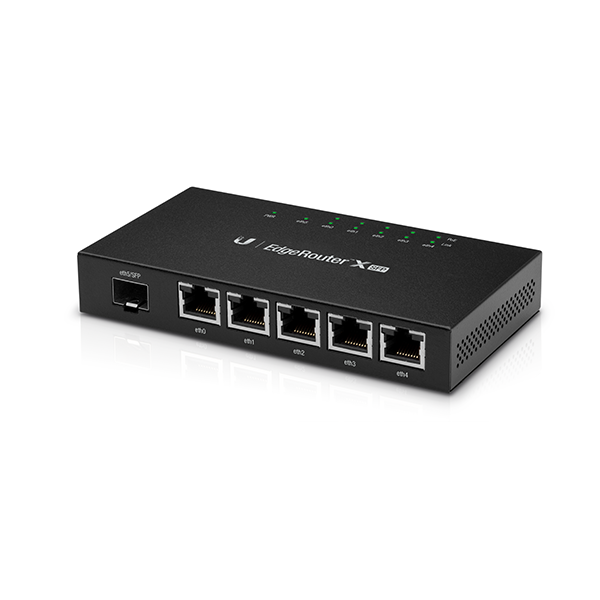

Ubiquiti EdgeRouter X Gigabit Ethernet Router – ER-X

The Ubiquiti EdgeRouter X (ER-X) is a compact and high-performance Gigabit router designed for homes, small businesses, branch offices, and wireless ISP deployments. Powered by a dual-core MediaTek processor and EdgeOS, it delivers advanced routing, firewall protection, VLAN support, VPN connectivity, and traffic management in a compact, energy-efficient form factor. Featuring five Gigabit Ethernet ports with configurable routing and switching capabilities, the EdgeRouter X offers exceptional flexibility for building secure and reliable wired networks while maintaining low power consumption.

Product Features

High-Performance Gigabit Routing

Powered by a dual-core processor capable of handling high-speed routing, ensuring fast and reliable network performance for demanding applications.

Five Gigabit Ethernet Ports

Equipped with five Gigabit RJ45 ports that can be configured for WAN, LAN, or switched operation to suit various network topologies.

Advanced EdgeOS Management

Runs Ubiquiti EdgeOS, providing an intuitive web-based interface along with advanced networking tools for professional configuration and monitoring.

Comprehensive Network Security

Includes a stateful firewall, NAT, VLAN support, DHCP services, Quality of Service (QoS), and advanced traffic management for secure and efficient networking.

VPN Support

Supports multiple VPN technologies for secure remote access and site-to-site connectivity between offices and branch locations.

Passive PoE Support

Supports 24V Passive PoE input and passive PoE passthrough on one port, allowing compatible Ubiquiti devices to be powered directly from the router.

Compact and Energy-Efficient Design

Its compact size and low power consumption make it suitable for desktop installation or deployment in locations with limited space.

Flexible Deployment Options

Ideal for home networks, small offices, retail businesses, wireless ISPs, surveillance systems, and branch office networking.

Product Specifications

• Model: ER-X
• Product Type: Gigabit Ethernet Router
• Processor: Dual-Core MediaTek MT7621A, 880 MHz
• Memory: 256 MB DDR3 RAM
• Internal Storage: 256 MB NAND Flash
• Ethernet Ports: 5 × 10/100/1000 Gigabit RJ45
• Switching Capacity: 10 Gbps
• Forwarding Rate: Up to 1 Million Packets Per Second
• Power Method: 24V Passive PoE or 12V DC Power Adapter
• Passive PoE Passthrough: Supported on Port 5 (24V Passive PoE Input Required)
• Maximum Power Consumption: 5 W (Excluding PoE Output)
• Operating System: EdgeOS
• Mounting Options: Desktop or Wall Mount
• Dimensions: 110 × 75 × 22 mm
• Weight: 215 g
• Operating Temperature: -10°C to 50°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Features: Stateful Firewall, NAT, VLAN, QoS, Static and Dynamic Routing, VPN, DHCP Server, IPv4 and IPv6 Support
• Ideal Applications: Home networking, small business networks, branch offices, wireless ISP deployments, surveillance systems, and secure wired networking.
