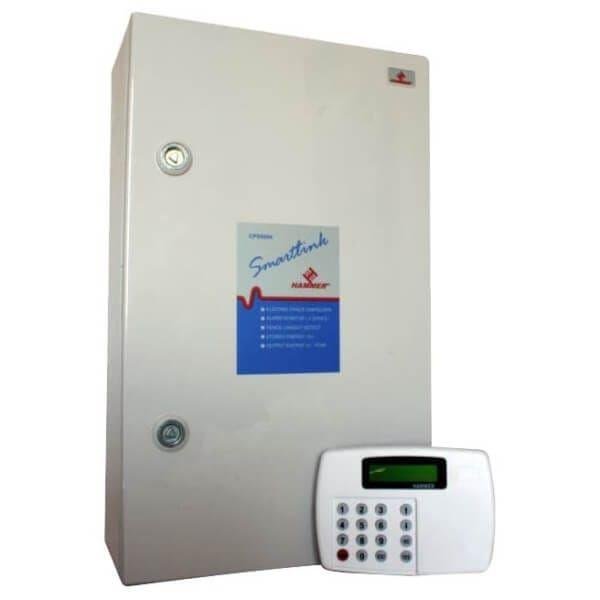

Hammer CPS6004 4-Zone Electric Fence Energizer

The Hammer CPS6004 4-Zone Electric Fence Energizer is a high-capacity electric fence energizer engineered for advanced perimeter security. Designed with four independently monitored fence zones, it delivers 4 Joules of output energy per zone and 15 Joules of stored energy, making it ideal for securing large residential estates, commercial properties, industrial facilities, institutions, and agricultural sites. Equipped with an LCD keypad, SmartLink monitoring technology, battery backup, solar compatibility, and built-in surge protection, the CPS6004 provides reliable and intelligent perimeter protection.

Product Features

Four Independent Fence Zones

Features four hard-wired, independently monitored fence zones, allowing different sections of the perimeter to operate separately for enhanced security.

4 Joules Output Per Zone

Delivers 4 Joules of output energy to each zone, providing powerful electric fence performance and effective intrusion deterrence.

Fully Programmable System

Includes an LCD keypad for easy programming, system configuration, and real-time monitoring of fence performance.

Independent High-Voltage Transformers

Each fence zone has its own dedicated high-voltage transformer, ensuring that the remaining zones continue operating even if one zone experiences a fault.

SmartLink Earth Monitoring

Advanced SmartLink technology continuously monitors the earth return line to detect tampering and grounding faults.

Live Fence Line Monitoring

Continuously monitors fence voltage and immediately detects cut wires, short circuits, or voltage loss.

Gate Monitoring

Supports auxiliary gate monitoring, allowing alarms to be triggered when protected gates are opened or tampered with.

Battery Backup and Solar Ready

Compatible with a 12V backup battery and solar power systems, ensuring uninterrupted operation during power failures.

Siren and Strobe Outputs

Provides dedicated outputs for connecting external sirens and strobe lights to deliver audible and visual alarm notifications.

Built-In Lightning and Surge Protection

Integrated protection safeguards the energizer against lightning strikes and power surges, improving system reliability and longevity.

Expandable Keypad Support

Supports multiple LCD keypads, allowing convenient monitoring and control from different locations.

Product Specifications

• Brand: Hammer
• Model: CPS6004
• Product Type: Four-Zone Electric Fence Energizer
• Fence Zones: 4 Independent Hard-Wired Zones
• Output Energy: 4 Joules Per Zone
• Stored Energy: 15 Joules
• Maximum Output Voltage: 10kV
• Power Supply: 220–240V AC
• Battery Backup: Yes
• Recommended Battery: 12V 7Ah Rechargeable Battery
• Backup Time: Up to 12 Hours
• Programming: Fully Programmable
• Display: LCD Keypad Included
• Fence Monitoring: Live Line Monitoring
• Earth Monitoring: SmartLink Earth Monitoring
• Gate Monitoring: Yes
• Alarm Outputs: Siren and Strobe Outputs
• Solar Compatible: Yes
• Lightning Protection: Built-In
• Surge Protection: Built-In
• Multiple Keypad Support: Yes
• Installation: Wall Mounted
• Applications: Residential Estates, Commercial Buildings, Industrial Facilities, Warehouses, Farms, Institutions, and High-Security Electric Fence Systems
