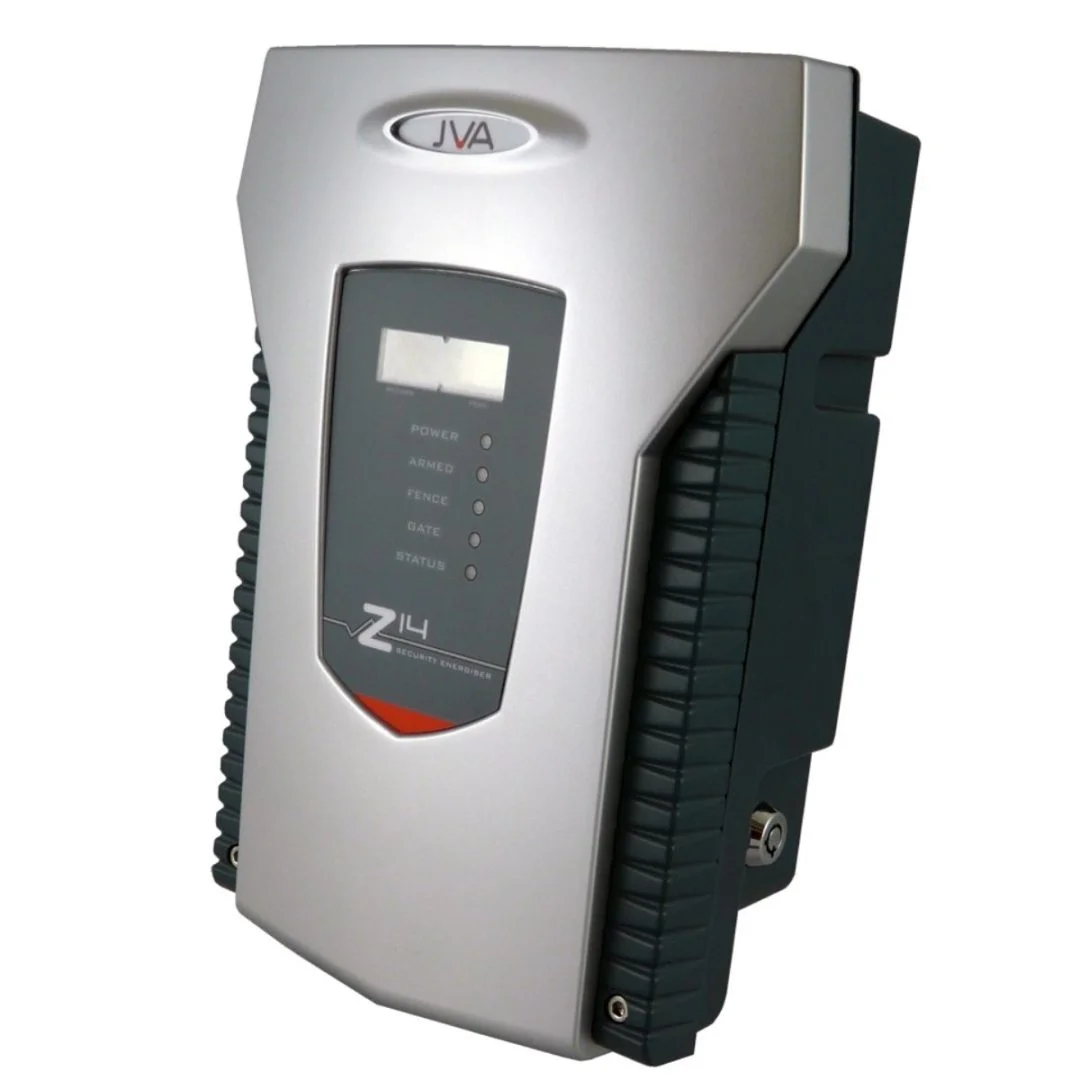

JVA Z14 One Zone Security Energiser 4 Joule with LCD Display

The JVA Z14 One Zone Security Energiser 4 Joule with LCD Display is a high-performance electric fence energiser designed to secure residential, commercial, industrial, and institutional properties. Featuring 4 Joules of output energy, intelligent fence monitoring, and a large LCD display, it provides reliable perimeter protection while continuously monitoring the fence for tampering, short circuits, and voltage loss. The Z14 also supports backup battery operation and seamless integration with alarm and access control systems, making it an ideal solution for professional security installations.

Product Features

Single Zone Fence Monitoring

Monitors one dedicated electric fence zone, providing accurate detection of fence faults, wire cuts, and tampering.

4 Joule High-Power Output

Delivers a powerful high-voltage, low-current pulse to provide effective perimeter protection and intrusion deterrence.

Large LCD Display

Features an easy-to-read backlit LCD that displays fence voltage, return voltage, battery status, and system settings for convenient monitoring.

Dynamic Voltage Monitoring

Automatically adjusts fence performance to minimize false alarms while maintaining optimum fence voltage and security.

High and Low Power Modes

Allows users to select between high and low power settings to suit different installation requirements.

Alarm System Integration

Supports integration with sirens, strobes, GSM communicators, access control systems, and other security devices through programmable inputs and outputs.

Built-In Battery Charger

Includes an integrated charger for a 12V backup battery to maintain fence protection during mains power failures.

Keypad and Software Compatibility

Compatible with optional JVA LCD or Touch Keypads and perimeter management software for convenient programming and monitoring.

Pulse Synchronization

Can be synchronized with other compatible JVA Z-Series energisers for larger multi-zone perimeter security systems.

Lightning and Surge Protection

Built-in protection safeguards the energiser against lightning strikes and electrical surges, improving reliability and equipment lifespan.

Product Specifications

• Brand: JVA
• Model: Z14
• Product Type: Single-Zone Security Electric Fence Energiser
• Fence Zones: 1
• Output Energy: 4 Joules
• Maximum Output Voltage: Up to 9.9kV
• Display: Backlit LCD
• Power Supply: 16–18V AC via External Transformer
• Battery Backup: 12V 7Ah Rechargeable Battery Compatible
• Built-In Battery Charger: Yes
• Control Inputs: 2
• Programmable Outputs: 2 × 12V DC Outputs (Suitable for Siren and Strobe)
• Fence Monitoring: High Voltage, Return Voltage, Open Circuit, Short Circuit, Earth Wire, Gate, and Tamper Monitoring
• Power Modes: High and Low
• Keypad Compatibility: Yes
• PC Monitoring: Supported
• Pulse Synchronization: Yes
• Fence Wiring: Supports Conventional and Bi-Polar Configurations
• Protection: Built-In Lightning and Surge Protection
• Compliance: IEC 60335-2-76
• Applications: Residential Estates, Commercial Buildings, Industrial Facilities, Warehouses, Schools, Government Installations, and High-Security Perimeter Fencing
