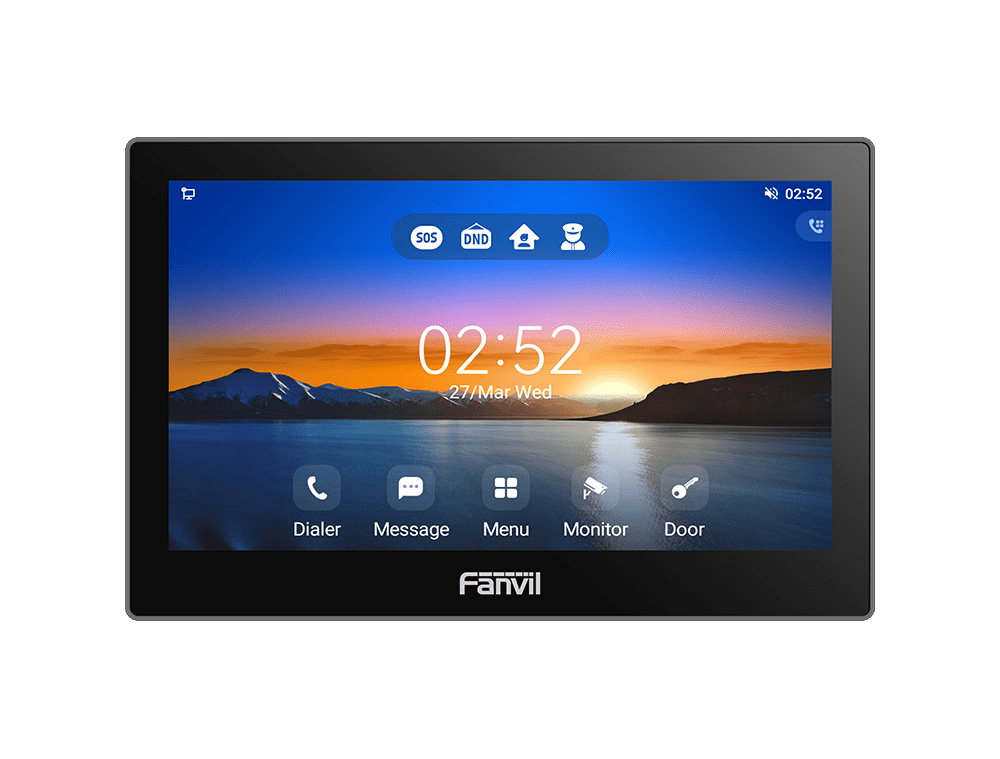

Fanvil i505W Android Wi-Fi Indoor Station

The Fanvil i505W Android Wi-Fi Indoor Station is a smart SIP video intercom and indoor communication panel designed for hotels, residential communities, villas, apartments, office buildings, and other access control environments. Running on Android 9.0, it features a 7-inch 1024 x 600 color capacitive touchscreen for convenient visitor communication, video monitoring, access control, and security management. The i505W combines dual-band 2.4 GHz and 5 GHz Wi-Fi, SIP-based audio and video communication, remote door unlocking, third-party IP camera monitoring, eight alarm inputs, a short-circuit output, a doorbell input, and PoE or DC power options. Its support for third-party applications and customizable functions also makes it suitable for smart building and property management integrations.

Product Features

7-Inch Color Touchscreen

The Fanvil i505W features a 7-inch color capacitive touchscreen with a 1024 x 600 resolution. The large interactive display provides a convenient interface for answering video calls, monitoring visitors, managing access control, viewing cameras, and operating supported applications.

Android 9.0 Operating System

Powered by Android 9.0, the i505W provides a familiar interface and supports customization and third-party application integration. This makes the indoor station suitable for smart home, smart building, property management, and other industry-specific applications.

Dual-Band Wi-Fi Connectivity

The i505W includes dual-band Wi-Fi supporting both 2.4 GHz and 5 GHz networks. Wireless connectivity provides additional installation flexibility where a wired network connection may be difficult to deploy.

SIP Video Intercom

The indoor station supports SIP 2.0 over UDP, TCP, and TLS, allowing it to communicate with compatible SIP door phones, IP intercom systems, SIP servers, and IP-PBX platforms.

HD Video Communication

The i505W supports H.264 and H.265 video decoding, with resolutions ranging from QVGA and CIF to VGA, 4CIF, 720p, and 1080p. This enables clear visitor video communication and monitoring when connected devices support the relevant formats.

Two-Way Hands-Free Communication

A built-in 2 W speaker and acoustic echo cancellation provide full-duplex hands-free communication. This allows users to communicate with visitors without needing a traditional telephone handset.

Remote Door Unlocking

The i505W supports remote door unlocking, allowing authorized users to verify visitors through the indoor station and activate a compatible access control system from the touchscreen.

Third-Party IP Camera Monitoring

The indoor station can display live video feeds from compatible third-party IP cameras and access control cameras. This provides an additional layer of security monitoring from a centralized indoor interface.

Eight Alarm Inputs

Eight alarm input interfaces allow the i505W to connect to compatible security sensors and alarm devices. This enables centralized monitoring of different security conditions within a property.

Doorbell Input

A dedicated doorbell input can be connected to an external doorbell or call button, allowing the indoor station to respond to visitors at an entrance.

Short-Circuit Output

The short-circuit output provides an interface for controlling compatible external devices and access control equipment according to the installation requirements.

RS-485 Interface

The reserved RS-485 interface provides additional expansion potential for compatible security, access control, and building automation applications.

PoE and DC Power Options

The i505W supports IEEE 802.3af Power over Ethernet as well as a 12 V DC power supply. PoE can simplify installation by allowing power and network connectivity to be delivered through a single Ethernet cable.

Customizable Call and User Functions

The device supports customizable incoming call ringtones, Do Not Disturb scheduling, messaging, and other configurable communication functions. These features allow installers to adapt the indoor station to different residential, hospitality, and commercial requirements.

Third-Party Application Support

The Android platform supports compatible third-party applications, providing opportunities for integration with smart home, property management, building automation, and other specialized systems.

Wall-Mounted Installation

The slim ABS housing is designed for wall-mounted installation, making the i505W suitable for apartments, hotel rooms, office buildings, villas, gated communities, and other indoor locations.

Product Specifications

• Brand: Fanvil
• Model: i505W
• Product type: Android Wi-Fi indoor station
• Device category: SIP video indoor station
• Operating system: Android 9.0
• Display: 7-inch color capacitive touchscreen
• Display resolution: 1024 x 600 pixels
• Body material: ABS
• Speaker: 2 W multimedia speaker
• Communication: SIP-based IP audio and video intercom
• SIP protocol: SIP 2.0
• SIP transport: UDP, TCP, TLS
• Wi-Fi: Dual-band 2.4 GHz and 5 GHz
• Ethernet: 10/100 Mbps adaptive Ethernet
• Ethernet port: 1 x RJ45
• PoE: IEEE 802.3af
• Power supply: DC 12 V / 1 A or PoE
• Audio codecs: G.711A/U, G.729AB, iLBC, G.722, Opus
• Audio mode: Full-duplex hands-free communication
• Acoustic echo cancellation: AEC supported
• Video codecs: H.264 and H.265
• Video resolutions: QVGA, CIF, VGA, 4CIF, 720p, 1080p
• DTMF: In-band and out-of-band
• DTMF methods: RFC2833 and SIP INFO
• Alarm inputs: 8
• Short-circuit output: 1
• Doorbell input: 1
• RS-485: 1 reserved interface
• Remote door unlocking: Supported
• IP camera monitoring: Supported
• Third-party IP camera integration: Supported
• Third-party application installation: Supported
• Incoming ringtone customization: Supported
• Do Not Disturb: Supported with user-defined schedule
• Messaging: Send and receive messages
• Network connectivity: Ethernet and dual-band Wi-Fi
• Installation: Wall-mounted
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +80°C
• Operating humidity: 10% to 90% relative humidity
• Dimensions: 177.38 x 113.99 x 22.5 mm
• Approximate weight: 0.45 kg
• Suitable applications: Hotels, residential communities, apartments, villas, office buildings, gated communities, and smart buildings
• Primary functions: Video intercom, visitor communication, door unlocking, IP camera monitoring, alarm monitoring, messaging, and smart building control
• Compatible systems: SIP servers, IP-PBX systems, Fanvil door phones, compatible IP cameras, access control systems, and supported third-party applications
• Installation type: Indoor wall mounting
