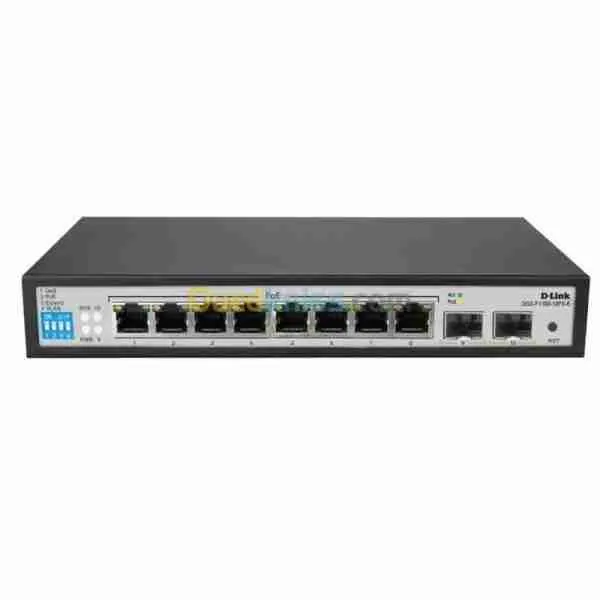

D-Link DGS-F1100-10PS-E 8-Port Gigabit PoE Smart Managed Switch

The D-Link DGS-F1100-10PS-E is a smart managed Gigabit PoE switch designed for small businesses, surveillance systems, educational institutions, and enterprise networks that require reliable connectivity and centralized management. It features 8 Gigabit PoE Ethernet ports and 2 Gigabit SFP uplink ports, enabling high-speed data transmission while supplying power to compatible devices such as IP cameras, wireless access points, and VoIP phones through a single Ethernet cable. It also supports long-range PoE transmission of up to 250 meters in Extend Mode and offers a total PoE power budget of 96W.

With advanced Layer 2 management features including VLAN, Quality of Service (QoS), Link Aggregation, IGMP Snooping, Access Control Lists (ACL), and Spanning Tree Protocol (STP), the DGS-F1100-10PS-E delivers enhanced network performance, security, and reliability. Its energy-efficient design, durable metal housing, and intuitive web-based management interface make it an excellent choice for modern networking environments.

Product Features

8 Gigabit PoE Ports

Provides 8 × 10/100/1000Mbps RJ45 PoE ports for high-speed data transmission and power delivery.

2 Gigabit SFP Uplink Ports

Includes two dedicated Gigabit SFP ports for fiber connectivity and network expansion.

Smart Layer 2 Management

Supports VLAN, QoS, Link Aggregation, Port Mirroring, IGMP Snooping, and Access Control Lists (ACL).

Long-Range PoE Support

Supports PoE transmission distances of up to 250 meters in Extend Mode for flexible deployment.

IEEE 802.3af/at PoE Support

Delivers up to 30W of power per PoE port for compatible powered devices.

96W Total PoE Power Budget

Provides sufficient power to support multiple PoE-enabled devices simultaneously.

Advanced Network Security

Supports 802.1X authentication, DHCP Snooping, Port Security, and ACL for enhanced protection.

Energy-Efficient Design

Incorporates energy-saving technology to reduce power consumption while maintaining high performance.

Durable Metal Chassis

Features a robust metal enclosure suitable for desktop or rack-mounted installation.

Easy Network Management

Supports web-based management, SNMP, Telnet, and SSH for convenient configuration and monitoring.

Product Specifications

• Brand: D-Link
• Model: DGS-F1100-10PS-E
• Product Type: Smart Managed Gigabit PoE Switch
• Ethernet Ports: 8 × 10/100/1000Mbps RJ45 PoE Ports
• Uplink Ports: 2 × Gigabit SFP Ports
• PoE Standards: IEEE 802.3af/at
• Maximum PoE Output Per Port: Up to 30W
• Total PoE Power Budget: 96W
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88Mpps
• MAC Address Table: 8K Entries
• VLAN Support: Yes
• Quality of Service (QoS): Supported
• Link Aggregation: IEEE 802.3ad LACP
• Access Control List (ACL): Supported
• 1X Authentication: Supported
• IGMP Snooping: Supported
• Spanning Tree Protocol: STP, RSTP
• PoE Extend Mode: Up to 250m
• Energy-Efficient Ethernet: Supported
• Management Interfaces: Web GUI, SNMP, Telnet, SSH
• Mounting: Desktop or Rack Mount
• Power Supply: AC 100–240V, 50/60Hz
• Chassis Material: Metal

• Color: Black
