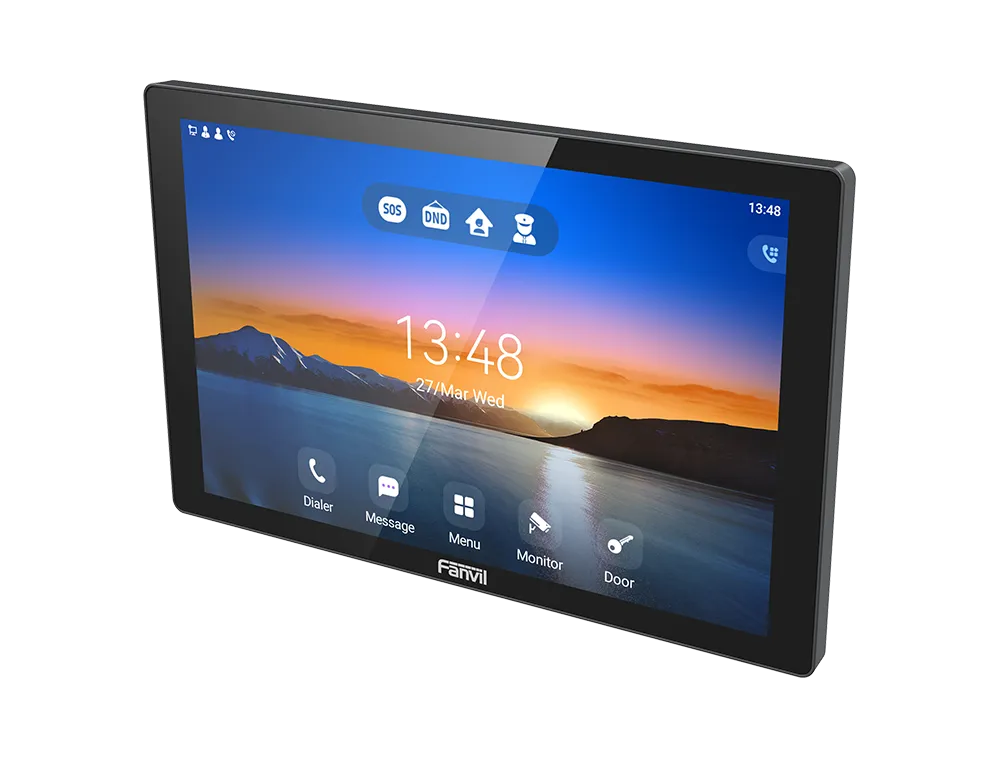

Fanvil i507W Android Indoor Station

The Fanvil i507W Android Indoor Station is a smart SIP video intercom and access control device designed for apartments, villas, residential communities, hotels, offices, and other modern building environments. Featuring a large 10.1-inch capacitive touchscreen, Android operating system, dual-band Wi-Fi, Ethernet, PoE support, HD audio, and high-definition video communication, the i507W provides an intuitive platform for visitor management, indoor communication, door access control, security monitoring, and smart building applications. With support for SIP-based audio and video communication, remote door unlocking, IP camera monitoring, alarm inputs, external interfaces, and third-party Android applications, the Fanvil i507W offers a flexible solution for integrating communication and building security functions into a single indoor touchscreen station.

Product Features

Large 10.1-Inch Capacitive Touchscreen

The Fanvil i507W features a large 10.1-inch capacitive touchscreen that provides a clear and responsive interface for video calls, visitor identification, access control, camera monitoring, and other indoor station functions.

Android Operating System

The Android platform provides a familiar and flexible user interface while supporting compatible third-party applications. This makes the i507W suitable for smart home, property management, building automation, hospitality, and other specialized applications.

HD Video Intercom

The i507W supports SIP-based video communication with compatible door stations and indoor devices. Its high-resolution display provides clear video during visitor calls and monitoring applications.

HD Full-Duplex Audio

The built-in microphone and speaker support hands-free full-duplex communication. Acoustic echo cancellation and voice processing help improve conversation quality during video intercom calls.

Dual-Band Wi-Fi

The i507W supports 2.4 GHz and 5 GHz Wi-Fi connectivity, providing flexible wireless installation where Ethernet cabling may be difficult or inconvenient.

Ethernet and PoE Connectivity

The indoor station supports Ethernet networking and IEEE 802.3af PoE. PoE allows network connectivity and power to be delivered through a single compatible Ethernet cable, helping simplify installation.

SIP Communication

The i507W supports SIP-based communication and can integrate with compatible SIP servers, IP PBX systems, door phones, video intercom systems, and other SIP-enabled devices.

Remote Door Unlocking

Users can remotely unlock a compatible door after communicating with a visitor. This provides convenient access management for apartments, villas, hotels, offices, and controlled-entry buildings.

IP Camera Monitoring

The i507W can support monitoring of compatible IP cameras, allowing users to view connected surveillance or entrance cameras from the indoor station.

Alarm and External Device Interfaces

The indoor station provides interfaces for connecting compatible alarm sensors and external devices, allowing it to participate in broader building security and access control systems.

Third-Party Application Support

The Android platform allows compatible third-party applications to be installed for additional functionality, making the i507W adaptable to property management, smart building, security, and hospitality applications.

Customizable User Functions

The touchscreen interface provides access to configurable communication and security functions, allowing installers and system administrators to adapt the indoor station to the requirements of a specific building or project.

Wall-Mountable Indoor Design

The i507W is designed for indoor wall mounting and provides a professional touchscreen interface without requiring a separate desktop telephone or control panel.

Product Specifications

• Brand: Fanvil
• Model: i507W
• Product type: Android indoor video intercom station
• Device category: SIP video indoor station
• Operating system: Android
• Display: 10.1-inch capacitive touchscreen
• Display type: Color touchscreen
• Communication technology: SIP and IP video intercom
• SIP protocol: SIP 2.0
• SIP transport: UDP, TCP, TLS
• Audio communication: Full-duplex hands-free
• Audio codecs: G.711A/U, G.722, G.729AB, iLBC, Opus
• Video codecs: H.264, with support for compatible high-definition video sources
• DTMF: In-band and out-of-band
• Acoustic echo cancellation: Supported
• Voice processing: Supported
• Wi-Fi: Dual-band 2.4 GHz and 5 GHz
• Wi-Fi standard: IEEE 802.11 b/g/n and compatible 5 GHz standards
• Ethernet: 10/100 Mbps
• Ethernet interface: RJ45
• PoE: IEEE 802.3af
• Power supply: PoE or DC power
• Remote door unlocking: Supported
• IP camera monitoring: Supported
• Alarm interfaces: Supported
• External device interfaces: Supported
• Third-party applications: Supported
• Remote management: Supported
• Network configuration: Static IP, DHCP, and other supported IP configuration methods
• Network security: TLS, SRTP, HTTPS, and other supported security mechanisms
• Installation: Wall mount
• Intended environment: Indoor
• Suitable applications: Apartments, villas, residential communities, hotels, offices, commercial buildings, gated communities, and smart buildings
• Primary functions: Video intercom, visitor communication, door unlocking, IP camera monitoring, alarm monitoring, building access control, and smart building applications
• Compatible systems: SIP servers, IP PBX systems, SIP door stations, IP cameras, access control systems, and compatible Android applications
• Manufacturer: Fanvil Technology Co., Ltd.
