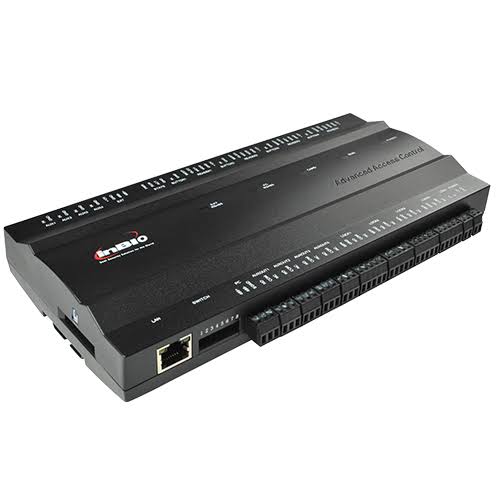

ZKTeco InBio 460 4-Door Fingerprint Card Access Control System

The ZKTeco InBio 460 is a high-performance IP-based biometric access control panel designed to manage up to four doors from a single controller. Featuring built-in fingerprint verification, support for RFID card authentication, and advanced access control functions, the InBio 460 provides a secure and scalable solution for commercial and enterprise security systems. It integrates seamlessly with fingerprint readers, RFID readers, electromagnetic locks, electric strikes, alarm systems, and other security devices, making it ideal for offices, factories, hospitals, schools, hotels, warehouses, banks, and government facilities.

Product Features

Four-Door Access Control

Controls up to 4 doors independently, providing centralized management for multiple entry and exit points.

Built-in Biometric Processing

Processes fingerprint templates directly within the controller for faster authentication and enhanced system security.

Supports Fingerprint and RFID Authentication

Compatible with RS485 fingerprint readers and Wiegand RFID card readers, offering flexible authentication methods.

High User Capacity

Stores up to 30,000 cardholders, 3,000 fingerprint templates (expandable on supported versions), and 100,000 transaction records, making it suitable for medium and large organizations.

Multiple Reader Support

Supports up to 12 readers, including RS485 biometric readers and Wiegand RFID readers, enabling comprehensive access control for four-door installations.

Advanced Access Control Functions

Includes Anti-Passback, First Card Opening, Multi-Card Opening, Duress Password, access schedules, holiday settings, interlocking, and programmable auxiliary input/output functions.

TCP/IP and RS485 Communication

Provides reliable network communication for centralized management and seamless integration with existing security infrastructure.

Flexible System Integration

Compatible with electromagnetic locks, electric strikes, exit buttons, door sensors, alarm systems, elevators, and other third-party access control devices.

Firmware Upgrade Support

Supports firmware upgrades without replacing hardware, ensuring long-term performance and access to the latest features.

Centralized Management

Works with ZKTeco access control software for user enrollment, real-time monitoring, event logging, reporting, and remote system administration.

Product Specifications

• Brand: ZKTeco
• Model: InBio 460
• Product Type: IP-Based Biometric Access Control Panel
• Doors Controlled: 4 Doors
• Supported Readers: Up to 12 Readers (8 RS485 and 4 Wiegand)
• Reader Interface: RS485 and 26-bit Wiegand
• Fingerprint Capacity: 3,000 Templates (Expandable on Supported Versions)
• Card Capacity: 30,000 Cards
• Transaction Capacity: 100,000 Records
• Communication: TCP/IP, RS485
• CPU: 32-bit 400MHz Processor
• Memory: 32MB RAM
• Flash Memory: 128MB
• Inputs: 12 (Door Contacts, Exit Buttons, Auxiliary Inputs)
• Outputs: 8 Relay Outputs (4 Lock Relays and 4 Auxiliary Relays)
• Power Supply:6V–14.4V DC
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 20%–80% RH (Non-Condensing)
• Dimensions: 350 × 300 × 90 mm
• Weight: Approximately 3.7 kg
• Applications: Corporate Offices, Commercial Buildings, Schools, Universities, Hospitals, Hotels, Banks, Warehouses, Manufacturing Facilities, Government Institutions, and Multi-Door Access Control Systems.
