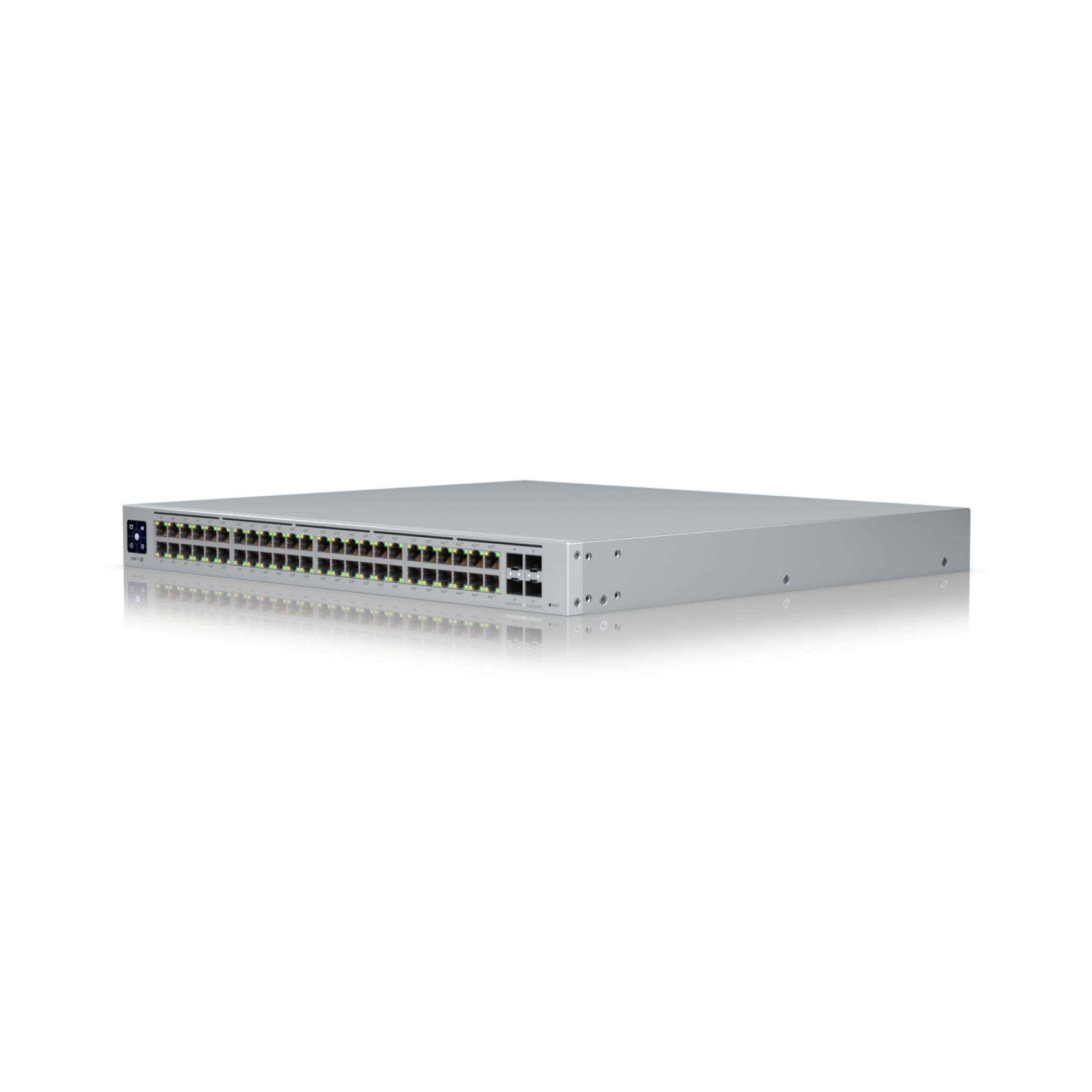

Ubiquiti UniFi Pro 48-Port PoE Managed Layer 3 Switch – USW-Pro-48-POE

The Ubiquiti UniFi Pro 48-Port PoE Switch (USW-Pro-48-POE) is a high-performance Layer 3 managed switch built for enterprise networks, data centers, educational institutions, and large-scale business environments. It features 48 Gigabit Ethernet ports, including 40 PoE+ ports and 8 PoE++ ports, delivering a powerful 600W PoE budget for powering high-performance access points, IP cameras, VoIP phones, lighting systems, and other PoE-enabled devices. With dual 10G SFP+ uplink ports, advanced Layer 3 routing capabilities, and centralized management through the UniFi Network application, this switch provides exceptional performance, scalability, and reliability for demanding network deployments.

Product Features

48 Gigabit Ethernet Ports

Equipped with 48 Gigabit RJ45 Ethernet ports, including 40 IEEE 802.3at PoE+ ports and 8 IEEE 802.3bt PoE++ ports, providing flexible connectivity for a wide variety of network devices.

600W Total PoE Budget

Delivers a substantial 600W PoE budget, allowing numerous PoE-powered devices to operate simultaneously without requiring separate power supplies.

Dual 10G SFP+ Uplink Ports

Includes two 10 Gigabit SFP+ ports for high-speed fiber uplinks, switch aggregation, and enterprise backbone connectivity.

Advanced Layer 3 Switching

Supports Layer 3 networking features including static routing, inter-VLAN routing, DHCP relay, and advanced traffic management for efficient enterprise networking.

Centralized UniFi Management

Managed through the UniFi Network application, enabling centralized configuration, monitoring, firmware management, and network analytics across the UniFi ecosystem.

Enterprise Security Features

Supports VLANs, Access Control Lists (ACLs), 802.1X authentication, DHCP Snooping, IGMP Snooping, Link Aggregation (LACP), and Quality of Service (QoS) for secure and optimized network performance.

Integrated Touchscreen Display

Features a 1.3-inch touchscreen display that provides instant access to switch status, network information, and system diagnostics.

Professional Rackmount Design

Designed in a durable 1U rackmount chassis for installation in server rooms, network cabinets, and enterprise IT environments.

Product Specifications

• Model: USW-Pro-48-POE
• Product Type: Layer 3 Managed Gigabit PoE Switch
• Ethernet Ports:
  • 40 × 10/100/1000 Mbps RJ45 PoE+ (IEEE 802.3af/at)
  • 8 × 10/100/1000 Mbps RJ45 PoE++ (IEEE 802.3bt)
• Uplink Ports: 2 × 10G SFP+
• Total PoE Budget: 600 W
• Maximum PoE Output:
  • PoE+: Up to 30 W per port
  • PoE++: Up to 60 W per port
• Switching Capacity: 176 Gbps
• Total Non-Blocking Throughput: 88 Gbps
• Forwarding Rate: 130.94 Mpps
• Layer Support: Layer 2 and Layer 3
• Display: 1.3-inch Touchscreen
• Management: UniFi Network Application
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240 V AC, 50/60 Hz
• Maximum Power Consumption: 680 W
• Cooling: Smart Fan Cooling
• Mounting: 1U Rackmount
• Dimensions: 442.4 × 43.7 × 400 mm
• Weight: Approximately 6.2 kg
• Operating Temperature: -5°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Supported Features: Static Routing, Inter-VLAN Routing, VLAN, Link Aggregation (LACP), Access Control Lists (ACLs), 802.1X Authentication, DHCP Snooping, IGMP Snooping, Port Mirroring, Jumbo Frames, STP, RSTP, MSTP, Flow Control, Storm Control, and Quality of Service (QoS)
• Ideal Applications: Enterprise networks, data centers, educational institutions, hospitality, surveillance systems, high-density wireless deployments, and large-scale UniFi network infrastructures.
