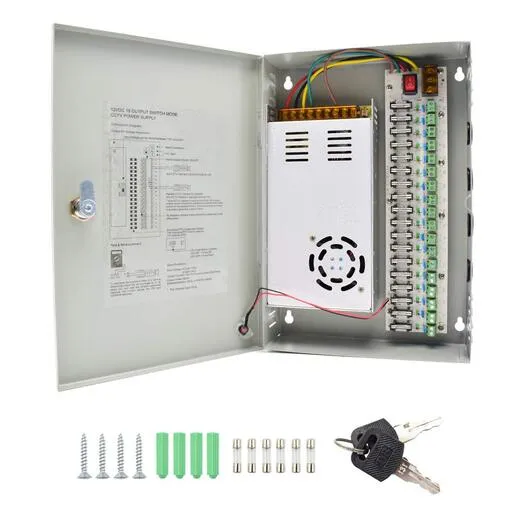

Power Box CCTV Power Supply 18 Channels 12V 30A 18CH

The Power Box CCTV Power Supply 18 Channels 12V 30A 18CH is a professional power distribution box designed to provide stable and centralized power for multiple CCTV cameras and security devices. Delivering a regulated 12V DC output with a total capacity of 30A (360W), it features 18 individually fused output channels for enhanced protection and simplified maintenance. Built with a lockable metal enclosure and advanced protection circuitry, this power box is ideal for commercial, residential, industrial, and enterprise surveillance installations.

Product Features

18 Independent Power Outputs

Equipped with 18 individually fused output channels, allowing each CCTV camera or device to receive dedicated power protection.

High Power Capacity

Provides a regulated 12V DC output with a maximum current of 30A, suitable for powering multiple CCTV cameras and security devices simultaneously.

Centralized Power Distribution

Simplifies CCTV installations by distributing power from a single enclosure to multiple cameras and accessories.

Individual Fuse Protection

Each output channel includes its own fuse to isolate faults and prevent failure from affecting the entire surveillance system.

Stable Regulated Output

Maintains a consistent 12V DC output to ensure reliable operation and protect connected equipment from voltage fluctuations.

Built-In Safety Protection

Includes overload, over-voltage, over-current, and short-circuit protection for enhanced system reliability.

Lockable Metal Enclosure

Constructed with a durable lockable steel cabinet to protect internal components from unauthorized access and accidental damage.

Efficient Cooling Design

Features ventilation slots for effective heat dissipation, ensuring stable operation during continuous use.

Easy Installation

Clearly labelled terminal blocks and organized wiring layout allow quick installation and simplified maintenance.

Wide Compatibility

Suitable for CCTV cameras, DVRs, PTZ cameras, access control systems, alarm systems, intercoms, LED lighting, and other 12V DC security equipment.

Product Specifications

• Product Type: CCTV Power Distribution Box
• Output Voltage: 12V DC
• Maximum Output Current: 30A
• Maximum Output Power: 360W
• Number of Output Channels: 18
• Output Protection: Individual Fuse per Channel
• Input Voltage: 100–240V AC
• Input Frequency: 50/60Hz
• Output Regulation: Regulated DC Output
• Protection Features: Over-Voltage, Over-Current, Overload, Short-Circuit Protection
• Housing Material: Powder-Coated Steel
• Enclosure Type: Lockable Metal Cabinet
• Cooling Method: Natural Air Ventilation
• Output Connections: Screw Terminal Blocks
• Input Connections: Live, Neutral, Earth Terminal
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20%–90% Non-Condensing
• Mounting Type: Wall Mount
• Colour: White
• Applications: CCTV Surveillance Systems, Analogue HD Cameras, IP Camera Accessories, DVRs, PTZ Cameras, Access Control Systems, Alarm Systems, Intercom Systems, LED Lighting, and Other 12V DC Electronic Devices.
