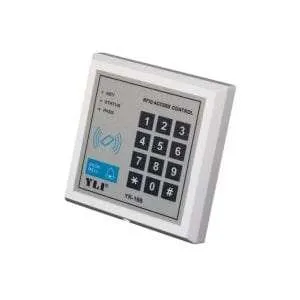

YK-168 RFID & Digital Keypad Reader

The YK-168 RFID & Digital Keypad Reader is a standalone access control device designed to provide secure and convenient entry management for homes, offices, factories, and commercial buildings. Combining a 125kHz RFID card reader with a durable numeric keypad, the YK-168 supports multiple authentication methods including RFID card, PIN code, or Card + PIN for enhanced security. Featuring onboard programming, tamper protection, relay outputs, and support for up to 250 users, it is an ideal solution for single-door access control applications.

Product Features

Three Authentication Modes

Supports RFID card only, PIN code only, or RFID card + PIN authentication, allowing users to choose the level of security best suited to their application.

Built-in 125kHz RFID Reader

Integrated EM 125kHz proximity card reader provides fast and reliable credential recognition with a reading distance of up to 10cm.

Supports Up to 250 Users

Stores up to 250 RFID cards, 250 PIN codes, or a single common access code, making it suitable for small to medium-sized access control installations.

Standalone Access Control

Operates independently without requiring an external access controller, simplifying installation while reducing system costs.

Fully Programmable Keypad

All user management and system configuration can be completed directly from the keypad, making setup and maintenance quick and straightforward.

Security Protection Features

Includes keypad lockout after multiple incorrect PIN entries and an integrated tamper alarm to help prevent unauthorized access and system interference.

Door Release and Doorbell Support

Can be connected to electric locks, exit buttons, and doorbells, providing a complete single-door access control solution.

Non-Volatile Memory

Built-in EEPROM memory retains user data and settings even during power failures, ensuring reliable long-term operation.

Durable Indoor Design

Designed for continuous indoor operation with a robust housing that withstands daily use in residential, commercial, and industrial environments.

Ideal for Single-Door Access Control

Perfect for offices, apartments, schools, warehouses, shops, factories, server rooms, and residential properties requiring secure standalone access control.

Product Specifications

• Product Type: Standalone RFID & Digital Keypad Reader
• Model: YK-168
• Operating Voltage: 12V DC
• Current Consumption: 25mA (Standby), 70mA (Active)
• Authentication Methods: RFID Card, PIN Code, Card + PIN
• Card Type: EM 125kHz Proximity Cards
• Card Reading Distance: Up to 10cm
• User Capacity: 250 RFID Cards, 250 PIN Codes, or 1 Common Code
• Relay Output: NO/NC Dry Contact, 3A @ 24V DC
• Programming: Keypad Programmable
• Memory: EEPROM Non-Volatile Memory
• Operating Temperature: -20°C to +60°C
• Operating Humidity: 10%–90%
• Dimensions: 117 × 117 × 21 mm
• Applications: Offices, Homes, Schools, Factories, Warehouses, Retail Stores, Apartment Buildings, and Single-Door Access Control Systems
