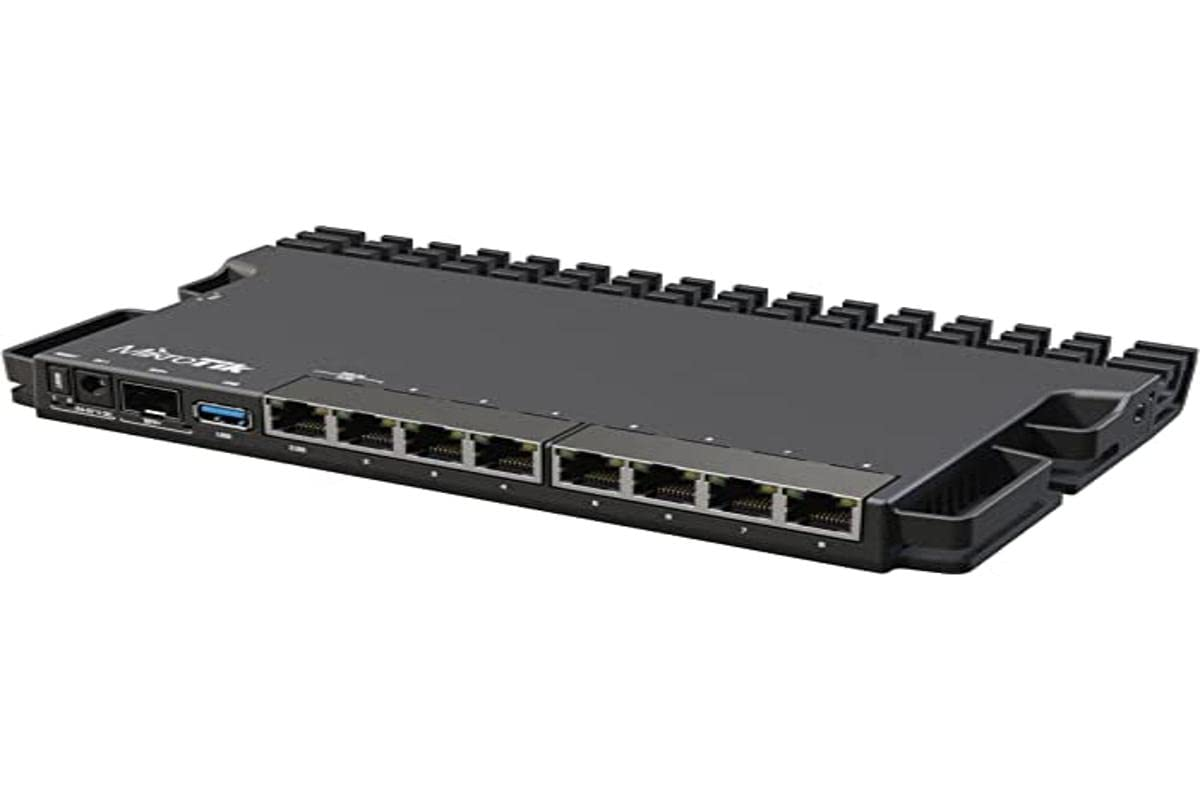

MikroTik RB5009UG+S+IN 2.5 Gigabit Ethernet Wired Router

The MikroTik RB5009UG+S+IN is a powerful enterprise-class wired router designed for high-speed networking in businesses, ISPs, data centers, and advanced home labs. Powered by a quad-core 1.4 GHz ARM 64-bit processor with 1 GB of DDR4 RAM, it delivers exceptional routing performance for demanding network environments. The router features seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, one 10G SFP+ cage, and a USB 3.0 port, making it ideal for multi-gigabit internet connections, fiber uplinks, and high-bandwidth network applications. Running MikroTik RouterOS Level 5, it offers comprehensive routing, firewall, VPN, VLAN, and traffic management capabilities in a compact, passively cooled design.

Product Features

Multi-Gigabit Connectivity

Equipped with seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ port to support high-speed wired networking and fiber connectivity.

Powerful Quad-Core ARM Processor

Powered by a 1.4 GHz quad-core ARM 64-bit processor with 1 GB DDR4 RAM for fast routing, firewall processing, VPN performance, and advanced network services.

RouterOS Level 5

Runs MikroTik RouterOS Level 5, providing advanced routing, firewall protection, VPN services, bandwidth management, VLAN configuration, Quality of Service (QoS), and network monitoring.

Hardware IPsec Acceleration

Supports hardware-accelerated IPsec encryption for high-performance, secure VPN connections with minimal CPU overhead.

Flexible Power Options

Supports multiple power input methods including DC jack, PoE-In, and a 2-pin terminal, providing flexible deployment options for different installation environments.

USB 3.0 Connectivity

Includes a high-speed USB 3.0 Type-A port for external storage, LTE modem support, file sharing, and additional network services.

Passive Cooling Design

Features a fanless aluminum enclosure that acts as a heatsink, ensuring silent operation and long-term reliability without mechanical cooling components.

Enterprise-Class Performance

Designed for business networks, ISP edge routing, branch offices, virtualization environments, data centers, and advanced home networking requiring multi-gigabit performance.

Product Specifications

• Model: RB5009UG+S+IN
• Product Type: Wired Multi-Gigabit Ethernet Router
• Processor: Quad-Core Marvell 88F7040 ARM 64-bit, 1.4 GHz
• Architecture: ARM 64-bit
• Memory: 1 GB DDR4 RAM
• Storage: 1 GB NAND Flash
• Operating System: MikroTik RouterOS
• RouterOS License: Level 5
• Ethernet Ports:
  • 7 × 10/100/1000 Mbps Gigabit RJ45
  • 1 × 2.5 Gigabit Ethernet RJ45
• Fiber Port: 1 × 10G SFP+
• USB Port: 1 × USB 3.0 Type-A
• Switch Chip: Marvell 88E6393
• Hardware IPsec Acceleration: Supported
• Power Inputs:
  • DC Jack
  • IEEE 802.3af/at PoE-In
  • 2-Pin Terminal
• Input Voltage: 24–57 V DC
• Maximum Power Consumption: 25 W
• Cooling: Passive Fanless
• Dimensions: 220 × 125 × 22 mm
• Operating Temperature: -40°C to 60°C
• Certifications: CE, FCC, IC, RoHS
• Ideal Applications: Enterprise routing, ISP deployments, branch offices, data centers, fiber networks, multi-gigabit internet connections, VPN gateways, and advanced business networking.
