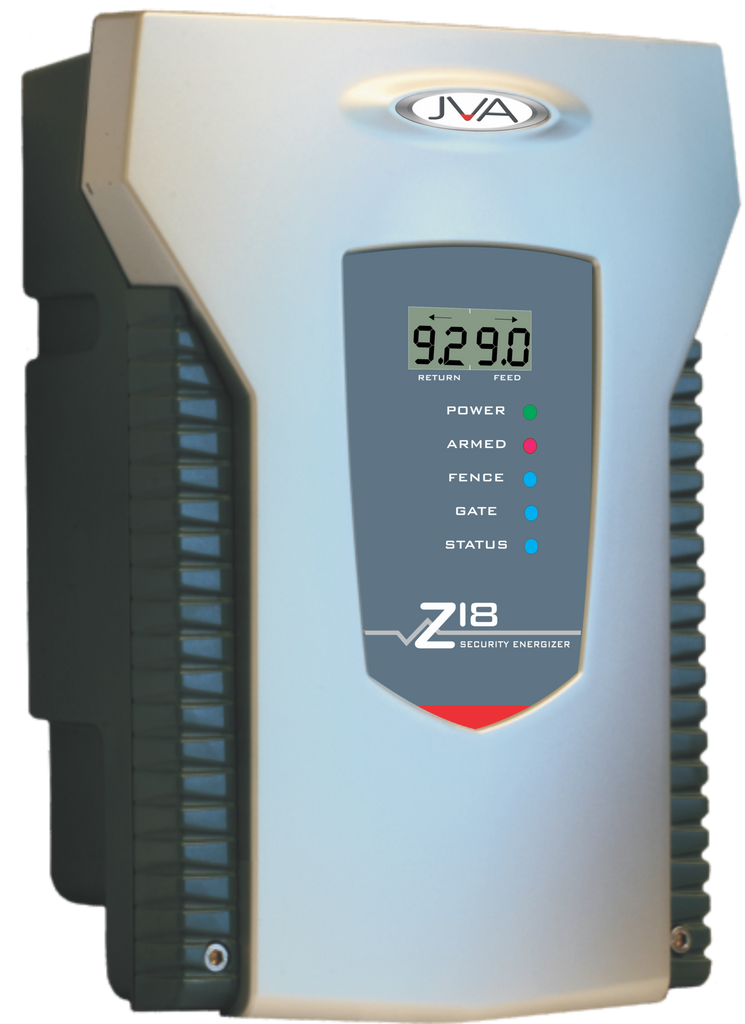

JVA Z18 Security Energizer 8 Joule with LCD Display

The JVA Z18 Security Energizer 8 Joule with LCD Display is a powerful single-zone electric fence energizer designed for demanding residential, commercial, industrial, and high-security perimeter protection. Delivering up to 8 Joules of output energy, it provides exceptional fence performance for long and complex electric fence installations. The integrated LCD display offers real-time system monitoring, while intelligent fence management, built-in battery charging, and advanced networking capabilities ensure reliable and efficient operation.

Product Features

High-Power 8 Joule Output

Provides a powerful high-voltage pulse for maximum perimeter security while meeting international electric fence safety standards.

Integrated LCD Display

Displays fence voltage, return voltage, battery condition, alarm status, and system settings for easy monitoring and troubleshooting.

Single Zone Protection

Designed to secure one electric fence zone with continuous monitoring for reliable perimeter security.

Intelligent Fence Monitoring

Continuously detects fence faults such as open circuits, short circuits, and tampering, triggering alarms when irregularities occur.

High and Low Power Modes

Offers selectable power settings to balance energy consumption with security requirements.

Built-In Battery Charger

Features an integrated charger supporting a 12V backup battery, ensuring uninterrupted fence operation during mains power outages.

Conventional and Bi-Polar Fence Compatibility

Supports both conventional and bi-polar electric fence configurations, providing flexibility for different installation requirements.

LCD and Touch Keypad Support

Compatible with JVA LCD and Touch Keypads for simplified programming, monitoring, and system control.

Network Expansion Capability

Can be synchronized with other JVA Z-Series energizers to create larger multi-zone electric fence systems.

PC Monitoring Integration

Supports Perimeter Patrol software for centralized monitoring, diagnostics, and management of multiple energizers.

Auxiliary Security Outputs

Includes switched 12V DC outputs for connecting external sirens, strobes, and additional security accessories.

Built-In Lightning and Surge Protection

Protects the energizer against lightning strikes and electrical surges, improving system reliability and equipment longevity.

Product Specifications

• Brand: JVA
• Model: Z18
• Product Type: Security Electric Fence Energizer
• Fence Zones: 1 (Single Zone)
• Maximum Output Energy: 8 Joules
• Peak Output Voltage: Up to 9.5 kV (No Load)
• Pulse Rate: 0.8 Hz
• Display: Integrated LCD
• Fence Configuration: Conventional and Bi-Polar
• Battery Support: 12V backup battery (not included)
• Built-In Battery Charger: Yes
• Control Inputs: 2
• Auxiliary Outputs: 2 × 12V DC (Siren and Strobe)
• Keypad Compatibility: JVA LCD Keypad and Touch Keypad
• PC Monitoring: Perimeter Patrol software compatible
• Network Capability: Supports synchronized multi-zone systems
• Enclosure Rating: IP4X
• Compliance: IEC 60335-2-76
• Protection: Built-in lightning and surge protection
• Applications: Residential, commercial, industrial, agricultural, and high-security electric fence installations
