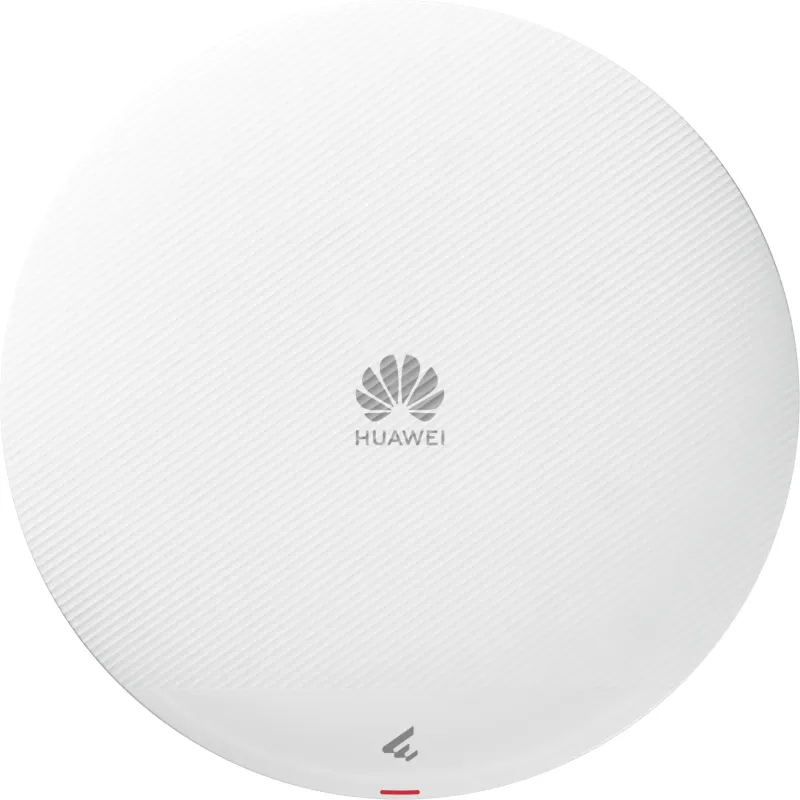

Huawei eKitEngine AP362 Dual Band 2.4GHz/5GHz Wi-Fi 6 Indoor Access Point

The Huawei eKitEngine AP362 is a high-performance Wi-Fi 6 (802.11ax) indoor access point built to provide fast, secure, and reliable wireless connectivity for small and medium-sized businesses. With a combined wireless throughput of up to 2.975 Gbps, dual-band operation, and advanced Wi-Fi 6 technologies, the AP362 delivers excellent coverage, low latency, and efficient performance in high-density environments such as offices, schools, hotels, retail stores, and healthcare facilities.

Product Features

High-Speed Wi-Fi 6 Performance

Supports the latest Wi-Fi 6 (802.11ax) standard with a combined wireless speed of up to 2.975 Gbps, delivering faster data transmission and improved network efficiency.

Dual-Band Wireless Connectivity

Operates simultaneously on 2.4 GHz and 5 GHz frequency bands to provide reliable wireless performance and minimize interference.

Dual-Radio 2×2 MU-MIMO

Features 2×2 MU-MIMO technology on both frequency bands, enabling efficient communication with multiple connected devices at the same time.

High-Density User Support

Designed to support up to 256 connected devices, with an optimal recommendation of 80 concurrent users, making it ideal for busy enterprise environments.

Built-in Smart Antennas

Integrated smart antennas automatically optimize wireless coverage and signal quality for enhanced user experience.

Gigabit Ethernet Connectivity

Equipped with a 10/100/1000 Mbps Gigabit Ethernet port with Power over Ethernet (PoE) support for high-speed wired connectivity and simplified installation.

Cloud-Based Management

Supports Huawei eKit cloud management for centralized deployment, remote monitoring, firmware upgrades, and simplified network administration.

Enterprise-Grade Security

Provides advanced security features including WPA3 encryption, VLAN support, access control, secure authentication, and rogue access point detection.

Energy-Efficient Operation

Powered via IEEE 802.3af PoE, reducing cabling requirements and simplifying deployment while maintaining low power consumption.

Flexible Installation

Supports ceiling and wall mounting, making it suitable for a wide range of indoor environments.

Product Specifications

• Brand: Huawei
• Model: eKitEngine AP362
• Product Type: Indoor Wi-Fi 6 Access Point
• Wireless Standard: IEEE 802.11a/b/g/n/ac/Wave 2/ax (Wi-Fi 6)
• Frequency Bands:4 GHz and 5 GHz
• Maximum Wireless Throughput:975 Gbps
• Radio Configuration: Dual-Radio
• MIMO: 2×2 MU-MIMO (2.4 GHz), 2×2 MU-MIMO (5 GHz)
• Maximum Channel Bandwidth: 40 MHz (2.4 GHz), 160 MHz (5 GHz)
• Recommended Concurrent Users: 80
• Maximum Supported Users: 256
• Maximum Transmit Power: 20 dBm
• Antenna Type: Built-in Smart Antennas
• Antenna Gain: 2 dBi (2.4 GHz), 3 dBi (5 GHz)
• Ethernet Ports: 1 × 10/100/1000 Mbps Gigabit RJ45 (PoE)
• Power Supply: IEEE 802.3af PoE or 12V DC
• Maximum Power Consumption:2 W
• Coverage Area: Up to 18 metres (optimal)
• Installation Options: Ceiling Mount, Wall Mount
• Dimensions: 180 × 180 × 35 mm
• Weight: Approximately 0.46 kg
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 5%–95% Non-Condensing
• Security Features: WPA3, WPA2, VLAN, Access Control, Rogue AP Detection
• Management Options: Huawei eKit Cloud, Web Interface, CLI
• Applications: Offices, Schools, Hotels, Retail Stores, Healthcare Facilities, Commercial Buildings, and Enterprise Indoor Wireless Networks
