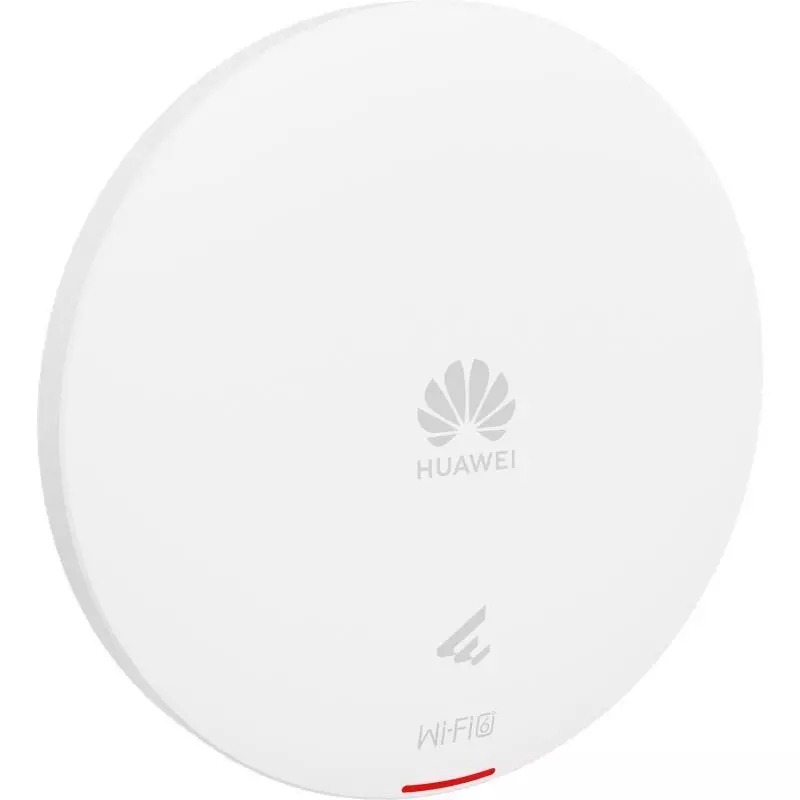

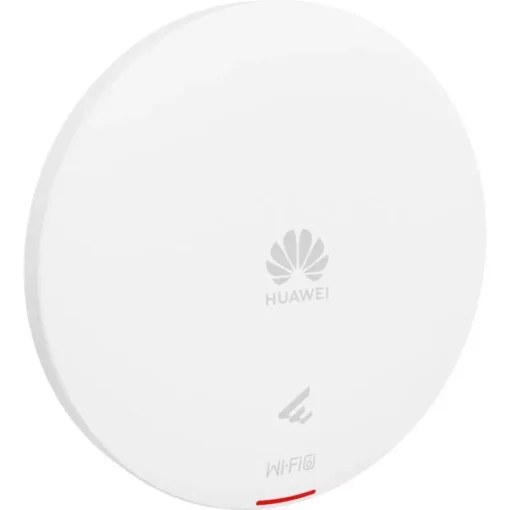

Huawei eKitEngine AP361 Access Point

The Huawei eKitEngine AP361 is a next-generation Wi-Fi 6 (802.11ax) indoor access point designed to deliver fast, secure, and reliable wireless connectivity for small and medium-sized businesses. With a maximum wireless throughput of 1.775 Gbps, dual-band 2×2 MU-MIMO technology, and built-in smart antennas, the AP361 provides excellent wireless coverage, improved network efficiency, and seamless connectivity for offices, schools, hotels, retail stores, and healthcare facilities.

Product Features

High-Speed Wi-Fi 6 Performance

Supports the latest Wi-Fi 6 (802.11ax) standard with combined wireless speeds of up to 1.775 Gbps, delivering faster data transmission and lower network latency.

Dual-Band Wireless Connectivity

Operates simultaneously on 2.4 GHz and 5 GHz frequency bands, ensuring optimal performance and reduced wireless interference.

Dual-Radio 2×2 MU-MIMO

Features 2×2 MU-MIMO technology on both frequency bands, enabling efficient communication with multiple connected devices simultaneously.

Built-in Smart Antennas

Equipped with intelligent antennas that automatically optimize signal direction and coverage for improved wireless performance.

Supports High User Density

Designed to support up to 128 connected devices, with an optimal recommendation of 80 concurrent users, making it suitable for busy business environments.

Gigabit Ethernet Connectivity

Includes a 10/100/1000 Mbps Gigabit Ethernet port with PoE support for high-speed wired connectivity and simplified installation.

Cloud-Based Management

Supports Huawei eKit cloud management, allowing centralized monitoring, remote configuration, firmware upgrades, and simplified network administration.

Enterprise-Grade Security

Provides advanced wireless security with WPA3 encryption, VLAN support, access control, secure authentication, and rogue AP detection.

Energy-Efficient Operation

Powered via IEEE 802.3af Power over Ethernet (PoE), reducing installation costs and eliminating the need for separate power cabling.

Flexible Installation

Designed for ceiling, wall, or T-rail mounting, making deployment simple in a wide range of indoor environments.

Product Specifications

• Brand: Huawei
• Model: eKitEngine AP361
• Product Type: Indoor Wi-Fi 6 Access Point
• Wireless Standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Frequency Bands:4 GHz and 5 GHz
• Maximum Wireless Throughput:775 Gbps
• Radio Configuration: Dual-Radio
• MIMO: 2×2 MU-MIMO (2.4 GHz), 2×2 MU-MIMO (5 GHz)
• Maximum Channel Bandwidth: 40 MHz (2.4 GHz), 80 MHz (5 GHz)
• Recommended Concurrent Users: 80
• Maximum Supported Devices: 128
• Maximum Transmit Power: 23 dBm
• Antenna Type: Built-in Smart Antennas
• Ethernet Ports: 1 × 10/100/1000 Mbps Gigabit Ethernet (PoE)
• Power Supply: IEEE 802.3af PoE
• Maximum Power Consumption:4 W
• Coverage Area: Up to 20 metres (optimal)
• Installation Options: Ceiling Mount, Wall Mount, T-Rail Mount
• Dimensions: 180 × 180 × 35 mm
• Weight: Approximately 0.45 kg
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 5%–95% Non-Condensing
• Security Features: WPA3, WPA2, VLAN, Access Control, Rogue AP Detection
• Management Options: Cloud Management, Web Management, CLI
• Applications: Offices, Schools, Hotels, Retail Stores, Clinics, Small and Medium-Sized Businesses, Commercial Buildings, and Enterprise Indoor Wireless Networks
