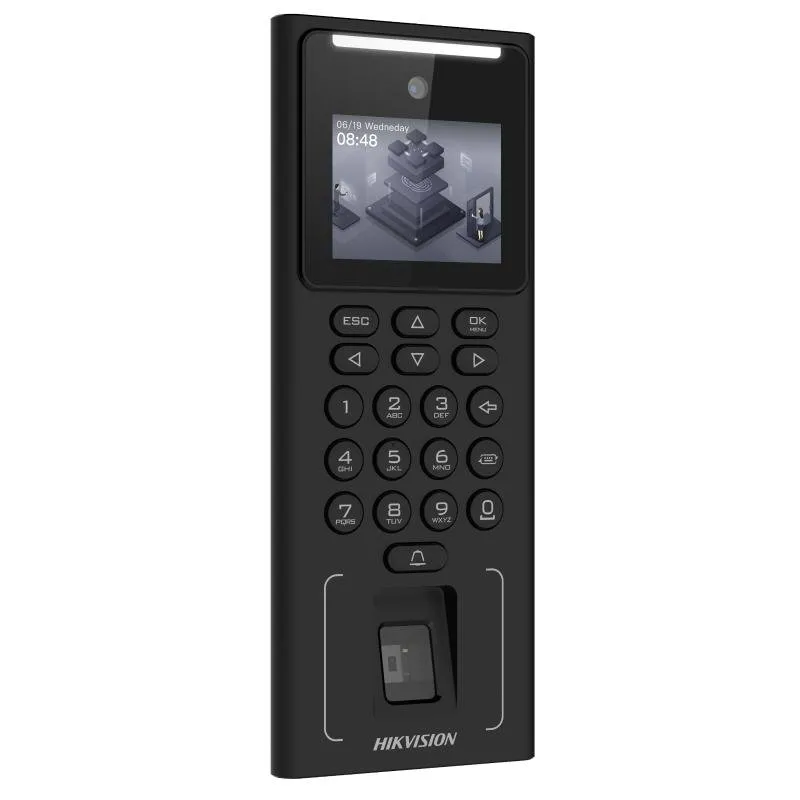

Hikvision Fingerprint Access Control
- General
- Communication InterfaceTCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
- Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
- Power Supply12 VDC/2 A
- Audio1 Buzzer and 1 Loudspeaker
- LED IndicatorPower/Status (Red/Green)
- LCD Screen2.4-inch (320 × 240 LCD-TFT Display Screen)
- Fingerprint CapacityUp to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
- storage to 3000 Valid Cards; Up to 100,000 Event Records; Up to 150,000 Attendance Records
- Card Reading ModeNot Support
- Input InterfaceExit Button × 1, Door Sensor × 1 and Alarm Input × 1
- Output InterfaceRelay (Lock Output) × 1, and Alarm Output × 1
- Operating system Linux
- Fingerprint Comparing Mode1:1 and 1:N, N=3000
- Card Reading Response Duration< 1 s
- Fingerprint Authentication Duration< 1 s
- FAR(False Accept Rate)≤ 0.001 %
- FRR (False Rejection Rate)≤ 0.01 %
- Fingerprint RecognizerOptical Fingerprint Recognizer Module
- External Card ReaderStandard Wiegand26/34
- Card Reading Distance0 to 5 cm
- KeyboardKeyboard (Back Light)
- Reset Key× 1
- Wi-FiSupport
- Wiegand InterfaceOutput: Wiegand 26/34;Input: Wiegand 26/34
- Transmission RateTCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
- USB 2.0; Type A
