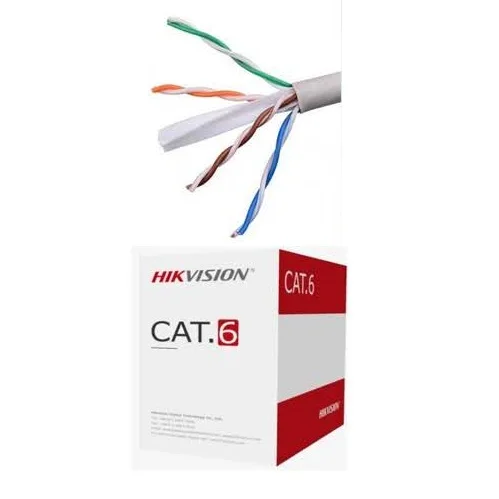

Hikvision DS-1LN6U-SC0 CAT 6 UTP Cable

The Hikvision DS-1LN6U-SC0 CAT 6 UTP Cable is a professional-grade Ethernet cable designed for high-speed data transmission and structured cabling installations. Manufactured with 99.95% solid bare copper conductors, it delivers excellent electrical performance, reliable Gigabit Ethernet connectivity, and dependable support for Power over Ethernet (PoE) devices. Supplied in a 305-metre (1000 ft) pull box, this cable is ideal for IP CCTV systems, enterprise networks, VoIP, and commercial networking applications.

Product Features

99.95% Solid Bare Copper Conductors

Constructed with high-purity solid bare copper conductors for superior conductivity, minimal signal loss, and reliable long-distance data transmission.

Category 6 High-Speed Performance

Supports high-speed Gigabit Ethernet applications, delivering stable and efficient network connectivity for modern LAN environments.

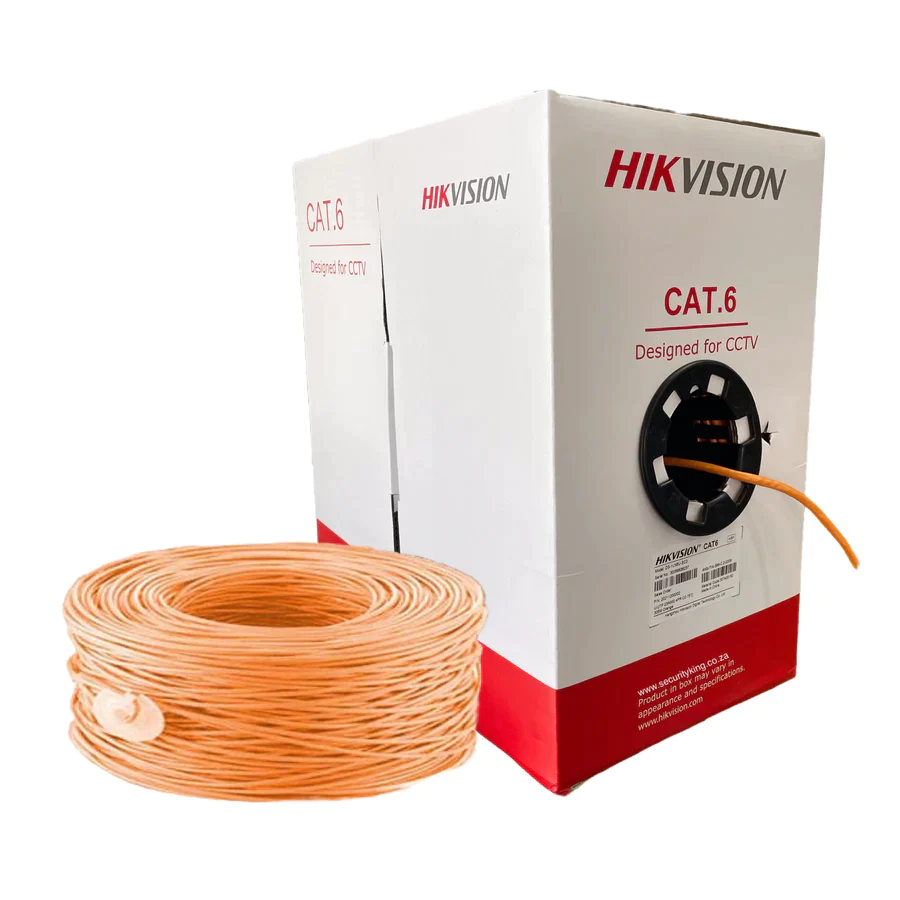

305 Metre Pull Box

Supplied in a convenient 305-metre (1000 ft) pull box for professional installations with minimal cable wastage.

U/UTP Construction

Features Unshielded Twisted Pair (U/UTP) construction with precision-twisted wire pairs that help reduce crosstalk and maintain signal quality.

Optimized for Power over Ethernet (PoE)

Supports PoE-enabled devices such as IP cameras, VoIP phones, wireless access points, and network switches, allowing both power and data to be transmitted over a single cable.

Fluke Test Verified

Engineered to meet stringent performance standards and verified for reliable operation in professional structured cabling installations.

Durable PVC Jacket

Protected by a high-quality PVC outer jacket that offers flexibility, durability, and long-lasting performance for indoor installations.

Easy Installation

Packaged in a pull box with sequential metre markings for faster installation and simplified cable management.

International Standards Compliance

Manufactured to comply with recognized international cabling standards, ensuring reliable network performance and compatibility.

Ideal for Professional Networking

Suitable for structured cabling, LAN networks, IP surveillance systems, data centres, offices, schools, hospitals, hotels, and commercial buildings.

Product Specifications

• Brand: Hikvision
• Model: DS-1LN6U-SC0
• Product Type: CAT 6 UTP Ethernet Cable
• Cable Category: CAT 6
• Cable Type: U/UTP (Unshielded Twisted Pair)
• Cable Length: 305 Metres (1000 ft)
• Conductor Material:95% Solid Bare Copper
• Conductor Size: 23 AWG (0.55 mm)
• Number of Pairs: 4 Twisted Pairs
• Bandwidth: Up to 250 MHz
• Maximum Data Rate: Up to 1 Gbps
• Outer Jacket: PVC
• Installation Environment: Indoor
• PoE Support: Yes
• Operating Voltage: Up to 60 V
• Packaging: Pull Box
• Standards Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156, and RoHS 2.0
• Applications: Structured Cabling, LAN Networks, IP CCTV Systems, VoIP Installations, Wireless Networks, Offices, Schools, Data Centres, Commercial Buildings, and Enterprise Networking.
