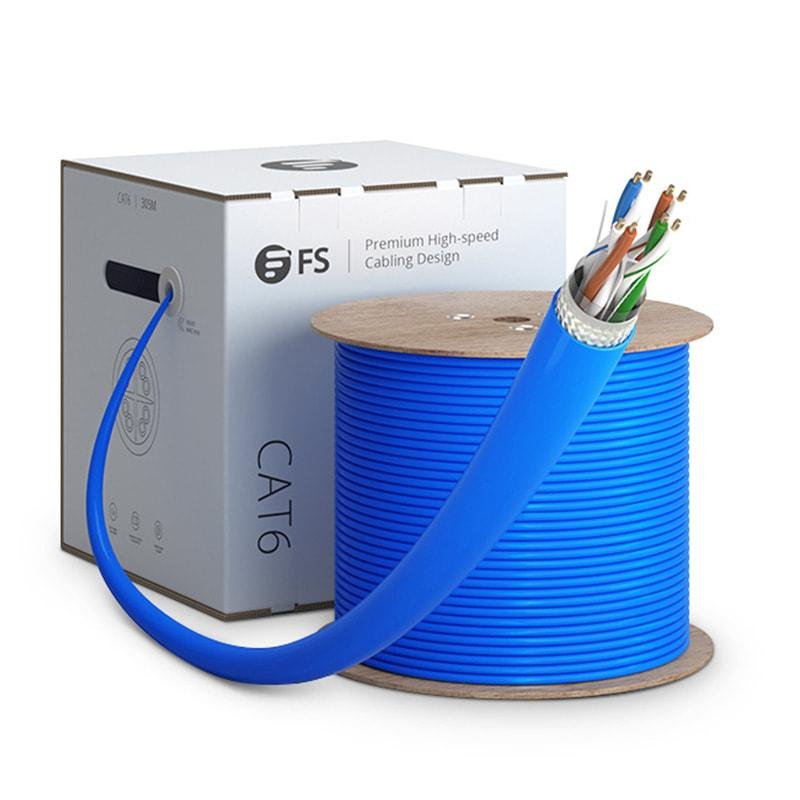

Cat6e SF/UTP Pure Copper Cable Indoor – 305m

Cat6 SF/UTP 4 pair 23AWG or 24 AWG solid cable has increased performance on the transmission of high special data, digital and analog voice and video (RGB) signals on LANs.

It also supports the gigabit ethernet (1000 base T) standards. Operating at a bandwidth of 250MHz-500MHz Tinned copper screening gives protection against EMI and avoids a signal loss.

• Category:CAT6 SF/UTP 4Pairs
• Reference standard: ISO/IEC11801, TIA-568-C.2
• Conductor: solid-bare copper material
• Conductor thickness available in 23AWG or 24AWG
• Available in LSZH, PVC, and PE sheaths
• Available in all standard colors
• Screening material: Mylar+ AL/Mylar
• Outer screening material: Tinned copper 0.10 mm with ≥40% coverage
• Surface printing
  • Color: black or white
  • Print error & space: ≤±0.5%/1m
  • Letter height: 3.0 ±0.3mm
• Core color:
  • A. White-blue/blue
  • B. White-orange/orange
  • C.White-green/green
  • D.White- brown/brown
• Packing: wooden tray & carton, dimensions according to the requirement
• Packing length:305±1.5m
• Ripcord: yes
• Drain wire: no
• Electrical characteristics (20℃):
  • 1.0-250.0MHz Impedance(Ω) 100±15
  • 1.0-250.0MHz Delay skew (ns/100m) ≤45
  • Unbalanced-to-ground capacitance (pf/100m) max 330
  • DC Resistance(Ω/100m) max 9.38
  • DC Conductor resistance unbalance (%) max 5.0
