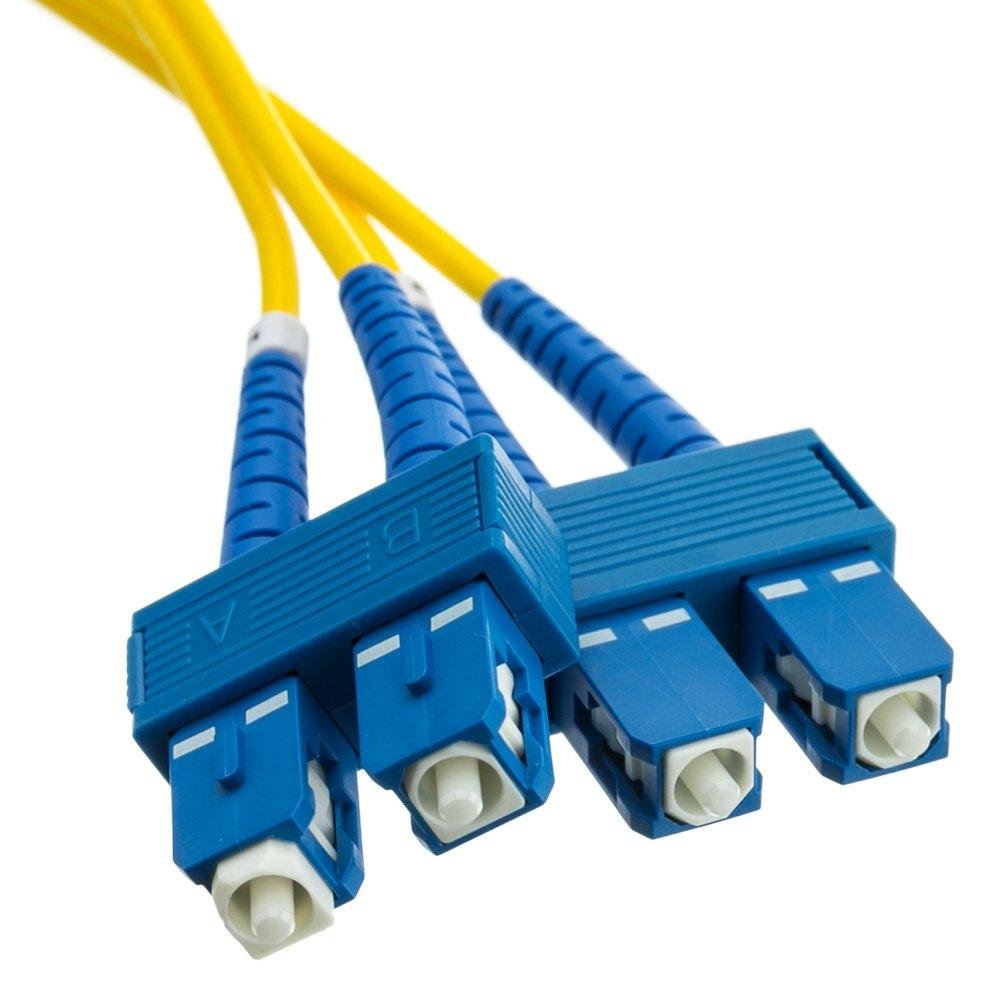

Fiber Optic SC Connector

The Fiber Optic SC Connector is a high-performance optical connector designed to provide secure, low-loss fiber connections for telecommunications, data centers, enterprise networks, FTTH deployments, and industrial networking applications. Featuring a reliable push-pull coupling mechanism and a precision ceramic ferrule, the SC connector ensures excellent optical alignment, minimal signal loss, and consistent performance. It is compatible with both single-mode and multimode fiber optic cables and is widely used in patch panels, optical distribution frames, media converters, switches, and network equipment.

Product Features

Precision Optical Performance

Designed to deliver low insertion loss and high return loss for reliable, high-speed optical signal transmission.

Push-Pull Locking Mechanism

Features a secure push-pull design that enables quick installation and removal while maintaining a stable connection.

High-Quality Ceramic Ferrule

Equipped with a precision zirconia ceramic ferrule to ensure accurate fiber alignment and reduced signal attenuation.

Single-Mode and Multimode Compatibility

Available for both single-mode (OS2) and multimode (OM3/OM4) fiber optic applications.

UPC and APC Polish Options

Offered with Ultra Physical Contact (UPC) and Angled Physical Contact (APC) polishing to meet different network performance requirements.

Durable Construction

Manufactured from high-strength thermoplastic materials for long-lasting reliability in demanding environments.

Easy Installation

Suitable for use with fiber patch cords, patch panels, optical distribution frames, and other fiber optic networking equipment.

Reliable Signal Transmission

Maintains consistent optical performance for high-speed voice, video, and data communications.

Broad Equipment Compatibility

Compatible with optical transceivers, switches, routers, media converters, patch panels, and FTTH equipment.

Versatile Applications

Ideal for enterprise networks, telecommunications, FTTH installations, data centers, CCTV fiber systems, and industrial fiber optic deployments.

Product Specifications

• Product Type: Fiber Optic SC Connector
• Connector Type: SC
• Configuration: Simplex
• Fiber Compatibility: Single-Mode (OS2) and Multimode (OM3/OM4)
• Ferrule Material: Zirconia Ceramic
• Ferrule Diameter:5 mm
• Polish Types: UPC or APC
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB (UPC), ≥ 60 dB (APC)
• Operating Wavelengths: 850 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
• Housing Material: High-Strength Thermoplastic
• Coupling Mechanism: Push-Pull
• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS Compliant
• Applications: Telecommunications, FTTH Networks, Data Centers, Enterprise LANs, Optical Distribution Frames, Fiber Patch Panels, CCTV Fiber Networks, and Industrial Fiber Optic Installations
