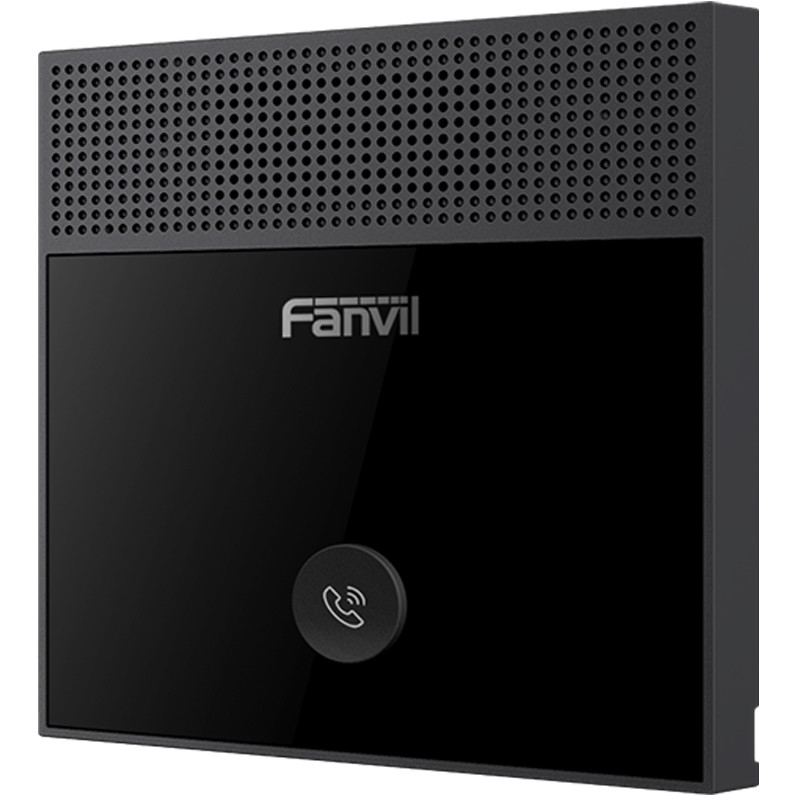

Fanvil H501W Wi-Fi Hotel SIP Intercom

The Fanvil H501W Wi-Fi Hotel SIP Intercom is a compact embedded IP communication device designed for hotels, residential buildings, villas, and other indoor environments that require convenient SIP-based voice communication. Featuring built-in 2.4 GHz Wi-Fi 6, PoE support, HD full-duplex intercom, a programmable function key, and a discreet 86-type flush-mounted design, the H501W provides a space-saving communication solution that can be integrated into standard 86-type wall boxes. Its SIP 2.0 support, 10/100 Mbps Ethernet connectivity, wideband G.722 and Opus codecs, and built-in acoustic echo cancellation make it suitable for connecting guests or residents with reception, security, service desks, or other IP phone extensions.

Product Features

Built-In Wi-Fi 6 Connectivity

The Fanvil H501W includes built-in 2.4 GHz Wi-Fi 6, providing wireless network connectivity for flexible installation in locations where running an Ethernet cable may be inconvenient.

SIP-Based Hotel Communication

The H501W supports SIP 2.0 over UDP, TCP, and TLS, allowing it to communicate with compatible IP-PBX systems, SIP servers, and VoIP platforms. This makes it suitable for hotel communication and service-response applications.

Compact Embedded Design

Designed as an embedded SIP intercom rather than a conventional desktop telephone, the H501W can be installed flush into a standard 86-type wall box. Its compact design helps maintain a clean and unobtrusive appearance in hotel rooms and indoor spaces.

One Programmable Function Key

A dedicated function key provides quick access to a configured communication or service function. This can be assigned according to the requirements of the connected SIP system.

HD Full-Duplex Intercom

The H501W supports full-duplex intercom communication with HD voice, allowing users to communicate naturally without needing to operate a traditional telephone handset.

Wideband Audio Support

Support for G.722 and Opus wideband codecs provides clear voice communication when the connected SIP infrastructure supports these codecs.

Acoustic Echo Cancellation

Full-duplex acoustic echo cancellation helps reduce echo during hands-free conversations, improving voice clarity for hotel and indoor intercom applications. The device also supports voice activity detection, comfort noise generation, background noise estimation, and packet loss concealment.

Power over Ethernet

PoE support allows the H501W to receive both power and network connectivity through compatible Ethernet infrastructure, helping simplify installation and reduce the number of cables required. The device can also use a DC power adapter when PoE is unavailable.

Flexible IP Configuration

The H501W supports static IP, DHCP, and PPPoE configuration, providing flexibility when integrating the device into different network environments.

Secure SIP Communication

Support for SIP over TLS provides an option for encrypted SIP signaling when supported and configured by the VoIP infrastructure, helping protect communication signaling on managed networks.

Hotel and Indoor Applications

The H501W is designed for indoor use in hotels, residential communities, villas, and similar environments. It can provide direct voice communication with reception desks, service departments, security teams, or other IP phone endpoints.

Product Specifications

• Brand: Fanvil
• Model: H501W
• Product type: Wi-Fi SIP hotel intercom
• Application: Hotels, residential buildings, villas, and indoor environments
• Communication protocol: SIP 2.0
• SIP transport: UDP, TCP, TLS
• Wi-Fi: Built-in 2.4 GHz Wi-Fi 6
• Wi-Fi standard: IEEE 802.11 b/g/n/ax
• Ethernet: 10/100 Mbps
• Network port: Ethernet
• IP modes: Static IP, DHCP, PPPoE
• IP support: IPv4, IPv6, and IPv4/IPv6 dual stack
• PoE: Supported
• PoE standard: IEEE 802.3af, Class 3
• Function keys: 1 programmable function key
• Intercom mode: Full-duplex
• Voice quality: HD voice
• Wideband codecs: G.722, Opus
• Acoustic echo cancellation: AEC supported
• Voice processing: VAD, CNG, BNE, PLC
• Audio pickup range: Up to 5 metres
• Power supply: DC 12V / 1A when PoE is not used
• Typical PoE power consumption: 1.47 W to 6.77 W
• Typical adapter power consumption: 1.23 W to 5.62 W
• Installation: 86-type box flush-mounted
• Required installation box depth: 45 mm or greater
• Panel dimensions: 86 x 86 x 30.9 mm
• Body material: ABS plastic
• Colour: Iron gray
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +80°C
• Intended use: Indoor
• Suitable communication systems: SIP servers, IP-PBX systems, and compatible VoIP platforms
• Primary applications: Hotel guest communication, service calls, residential intercom, villa communication, and indoor IP intercom
• Manufacturer: Fanvil Technology Co., Ltd.
