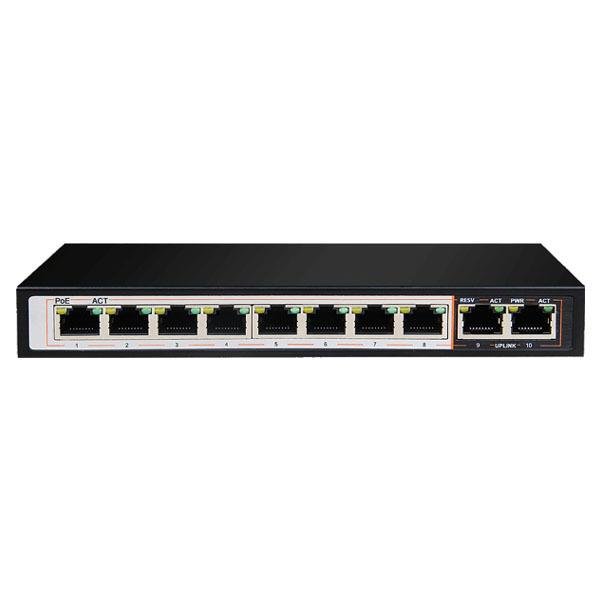

D-Link DGS-F1010P-E 250M 10-Port Gigabit Switch with 8 PoE Ports and 2 Uplink Ports

The D-Link DGS-F1010P-E is a high-performance unmanaged Gigabit PoE switch designed for surveillance systems, small businesses, offices, and enterprise networking environments. It features 8 Gigabit PoE ports and 2 Gigabit uplink ports, enabling both power and data transmission over a single Ethernet cable to compatible devices such as IP cameras, wireless access points, and VoIP phones. With support for long-range PoE transmission of up to 250 meters in Extend Mode and a total PoE power budget of 120W, the switch offers a reliable and cost-effective networking solution for modern installations.

Designed for plug-and-play deployment, the DGS-F1010P-E requires no configuration and includes intelligent features such as VLAN isolation, Quality of Service (QoS), PoE Watchdog, and 6kV surge protection. Its compact fanless metal chassis ensures quiet operation and dependable performance in demanding networking environments.

Product Features

8 Gigabit PoE Ports

Provides 8 × 10/100/1000Mbps RJ45 PoE ports for high-speed data transmission and power delivery.

2 Gigabit Uplink Ports

Includes two dedicated Gigabit uplink ports for connecting to core switches, routers, or additional network devices.

120W Total PoE Power Budget

Delivers up to 30W per PoE port with a total power budget of 120W for powering multiple PoE-enabled devices.

Long-Range PoE Transmission

Supports PoE and data transmission distances of up to 250 meters in Extend Mode, making it ideal for surveillance applications.

IEEE 802.3af/at PoE Support

Compatible with IEEE 802.3af and IEEE 802.3at standards for reliable power delivery.

VLAN Isolation Mode

Helps reduce broadcast traffic and improve network security by isolating PoE ports.

Video Quality of Service (QoS)

Prioritizes video traffic to ensure smooth and reliable transmission for IP surveillance systems.

Intelligent PoE Watchdog

Automatically detects and restarts unresponsive PoE-powered devices, minimizing downtime.

6kV Surge Protection

Protects the switch and connected devices from electrical surges and lightning-related damage.

Plug-and-Play Installation

Requires no software configuration, allowing for quick and simple deployment.

Product Specifications

• Brand: D-Link
• Model: DGS-F1010P-E
• Product Type: Unmanaged Gigabit PoE Switch
• Ethernet Ports: 8 × 10/100/1000Mbps RJ45 PoE Ports
• Uplink Ports: 2 × 10/100/1000Mbps RJ45 Uplink Ports
• PoE Standards: IEEE 802.3af/at
• Maximum PoE Output Per Port: Up to 30W
• Total PoE Power Budget: 120W
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88Mpps
• MAC Address Table: 4K Entries
• Operating Modes: Standard, Extend, VLAN, QoS, PoE Watchdog
• Maximum PoE Distance: Up to 250m (Extend Mode)
• Flow Control: IEEE 802.3x
• Surge Protection: 6kV
• Auto MDI/MDI-X: Supported
• Installation: Plug-and-Play
• Chassis Material: Metal
• Cooling: Fanless
• Power Supply: External Power Adapter
• Operating Temperature: 0°C to 40°C
• Dimensions: 184 × 94 × 27 mm

• Color: Black
