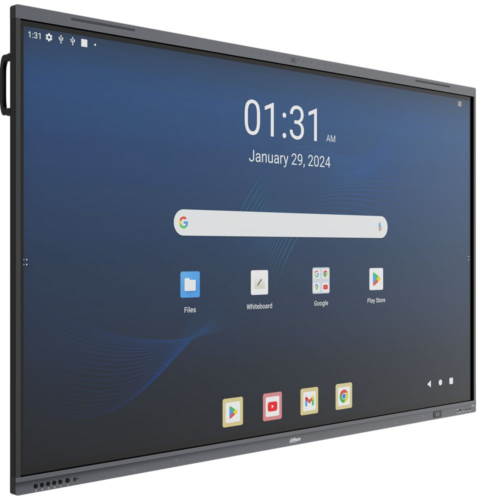

Dahua LPH86-MC470-P 86 Inch 4K Smart Interactive Whiteboard

The Dahua LPH86-MC470-P is an 86-inch 4K UHD smart interactive whiteboard designed for classrooms, boardrooms, conference rooms, training centres, and collaborative workspaces. It combines a large 3840 × 2160 4K display with Android 14, advanced multi-touch, AI camera and microphone technology, powerful 60 W audio, wireless screen sharing, NFC, fingerprint authentication, and extensive connectivity. It provides a professional solution for interactive presentations, digital teaching, video conferencing, brainstorming, and collaborative work.

Product Features

86 Inch 4K UHD Display

Delivers detailed 3840 × 2160 resolution with a large screen for clear presentations, lessons, and multimedia.

Android 14 Smart Platform

Runs Android 14 with high-performance processing, 16 GB RAM, and 128 GB storage.

Advanced Multi-Touch

Supports multi-user interaction for writing, annotation, presentations, and collaborative work.

AI Camera and Microphone

Built-in AI camera and 16-array microphone support video conferencing and hybrid meetings.

60 W 2.1-Channel Audio

Three integrated speakers provide powerful 60 W audio for presentations and video calls.

Wireless Screen Sharing

Allows compatible computers and mobile devices to share content wirelessly.

Type-C Connectivity

Supports 4K video, USB, touch functionality, and up to 65 W power delivery.

NFC and Fingerprint Authentication

Provides convenient access control and secure user authentication.

Wi-Fi and Bluetooth

Supports dual-band Wi-Fi and Bluetooth 5.3 for wireless connectivity and peripherals.

Durable Anti-Dazzle Glass

Features 3.2 mm anti-dazzle tempered glass with 9H hardness for regular interactive use.

Product Specifications

• Brand: Dahua
• Model: LPH86-MC470-P
• Product type: Smart interactive whiteboard
• Screen size: 86 inches
• Display technology: DLED
• Resolution: 3840 × 2160 4K UHD
• Aspect ratio: 16:9
• Brightness: 450 cd/m²
• Refresh rate: 60 Hz
• Viewing angle: 178° horizontal / 178° vertical
• Contrast ratio: 1200:1 typical
• Operating system: Android 14
• RAM: 16 GB
• Storage: 128 GB
• Touch technology: Infrared
• Touch points: Up to 32 on Android and 50 on Windows
• Writing: Finger and magnetic pen
• Camera: 48 MP AI camera
• Microphone: 16-array microphone
• Microphone pickup: Approximately 8–12 m
• Audio: 2.1-channel
• Speakers: 2 × 20 W front + 20 W rear
• Total audio output: 60 W
• Wi-Fi: Dual-band 2.4 GHz / 5 GHz
• Bluetooth: 5.3
• HDMI: HDMI 2.0 input and output
• USB: USB 3.2 Gen 1
• Type-C: 4K video, USB, touch, and up to 65 W charging
• Ethernet: RJ-45
• RS-232: Supported
• NFC: Supported
• Fingerprint authentication: Supported
• Protective glass: 3.2 mm anti-dazzle tempered glass
• Glass hardness: 9H
• Mounting: Wall mount or compatible mobile bracket
• VESA mounting: 800 × 400 mm
• Applications: Classrooms, schools, universities, boardrooms, conference rooms, offices, training centres, and meeting rooms
