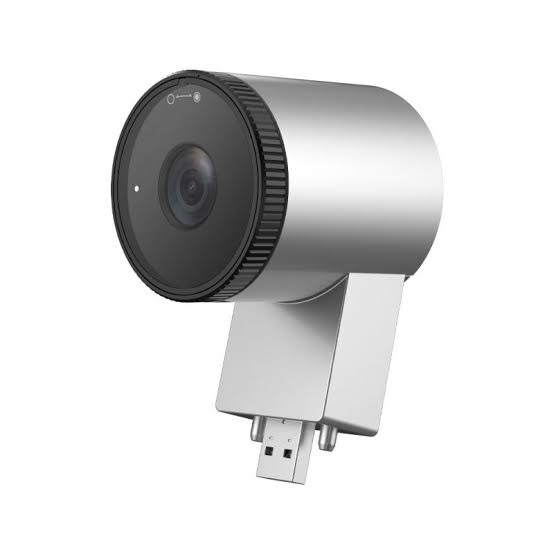

Dahua BDC-UZ48 48 MP USB Camera

The Dahua BDC-UZ48 is a 48 MP plug-in USB camera designed specifically for the Dahua ST470-P interactive whiteboard series. It provides up to 3840 × 2160 resolution at 30 fps, a wide 99° diagonal field of view, automatic white balance, automatic exposure, and support for multiple video formats. Its compact design and USB 2.0 Type-A connection make it suitable for video conferencing, online teaching, presentations, and hybrid collaboration.

Product Features

48 MP High-Resolution Camera

Captures detailed images with a 48 MP 1/1.8-inch CMOS sensor.

4K Video

Supports up to 3840 × 2160 resolution at 30 fps.

Wide Field of View

Provides 87° horizontal, 49° vertical, and 99° diagonal coverage.

Automatic Image Control

Supports automatic white balance and exposure for consistent image quality.

USB Plug-and-Play

Connects through USB 2.0 Type-A for convenient installation and hot swapping.

Multiple Video Formats

Supports MJPG, YUY2, H.264, H.265, and NV12 formats.

Product Specifications

• Brand: Dahua
• Model: BDC-UZ48
• Product type: USB camera
• Compatibility: Dahua ST470-P interactive whiteboard
• Image sensor: 1/1.8-inch CMOS
• Resolution: 48 MP
• Pixel size: 2 μm × 2 μm
• Maximum resolution: 3840 × 2160 at 30 fps
• Minimum illumination: 0.1 lux
• Signal-to-noise ratio: >50 dB
• Lens type: Fixed focal
• Focal length: 4 mm
• Maximum aperture: F1.6
• Field of view: 87° horizontal / 49° vertical / 99° diagonal
• Video formats: MJPG, YUY2, H.264, H.265, NV12
• White balance: Automatic
• Exposure: Automatic
• Interface: 1 × USB 2.0 Type-A
• Operating voltage: 5 V
• Maximum current: 1 A
• Maximum power consumption: 5 W
• Operating temperature: -10°C to +50°C
• Operating humidity: 20%–80% RH
• Dimensions: 51.7 × 68.0 × 96.1 mm
• Net weight: 0.12 kg
• Gross weight: 0.15 kg
• Certifications: CB, FCC, IC
