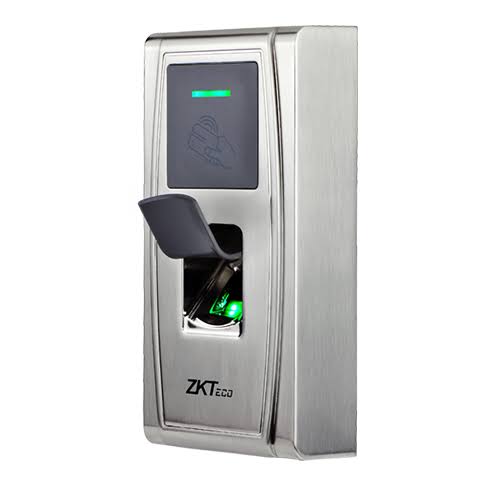

ZKTeco MA300-BT Outdoor Access Control and Time Attendance Terminal

The ZKTeco MA300-BT is a robust outdoor fingerprint access control and time attendance terminal designed for secure biometric authentication in demanding environments. Featuring a durable metal housing, IP65-rated waterproof and dustproof protection, and Bluetooth connectivity, the MA300-BT provides fast, reliable access control while allowing convenient mobile device management. It is ideal for offices, factories, warehouses, schools, hospitals, commercial buildings, residential properties, and other facilities requiring dependable security and employee attendance management.

Product Features

Advanced Fingerprint Recognition

Powered by ZKTeco’s advanced fingerprint algorithm, the MA300-BT delivers fast, accurate, and secure fingerprint verification with one-touch recognition.

Bluetooth Connectivity

Supports Bluetooth communication for convenient mobile application management, enabling user enrollment, device configuration, and access management.

IP65 Waterproof and Dustproof Design

Built with an IP65-rated enclosure and rugged metal casing to withstand rain, dust, and harsh outdoor environments.

Standalone or Integrated Operation

Can function as a standalone access control terminal or integrate with compatible third-party access control panels through Wiegand communication.

Multiple Authentication Methods

Supports fingerprint and RFID card verification, with optional multi-factor authentication for enhanced security.

High User Capacity

Stores up to 1,500 fingerprint templates, 10,000 RFID cards, and 100,000 transaction records, making it suitable for growing businesses and organizations.

Flexible Communication Options

Supports TCP/IP, RS485, USB Host, and Bluetooth for efficient device management and seamless network integration.

Comprehensive Access Control Functions

Includes support for electric locks, exit buttons, door sensors, alarms, Anti-Passback, duress mode, time zones, groups, and Wiegand input/output.

Rugged Metal Construction

Constructed with a vandal-resistant metal housing for long-lasting durability in high-traffic indoor and outdoor installations.

Easy Installation

Compact wall-mounted design allows quick installation and integration into new or existing access control systems.

Product Specifications

• Brand: ZKTeco
• Model: MA300-BT
• Product Type: Outdoor Fingerprint Access Control and Time Attendance Terminal
• Fingerprint Capacity: 1,500 Templates
• Card Capacity: 10,000 RFID Cards
• Transaction Capacity: 100,000 Records
• Fingerprint Sensor: Optical Fingerprint Sensor
• Algorithm Version: ZKFinger V10.0
• Authentication Methods: Fingerprint, RFID Card
• Communication: TCP/IP, RS485, USB Host, Bluetooth
• Wiegand Interface: Input and Output
• Access Control Interface: Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
• Protection Rating: IP65
• Housing Material: Metal
• Power Supply: 12V DC
• Operating Temperature: -10°C to 60°C
• Operating Humidity: 10%–90% RH (Non-Condensing)
• Dimensions: 73 × 148 × 34.5 mm
• Installation: Wall Mounted
• Applications: Offices, Commercial Buildings, Schools, Universities, Hospitals, Hotels, Banks, Warehouses, Factories, Government Institutions, Residential Properties, and Outdoor Biometric Access Control Systems.
