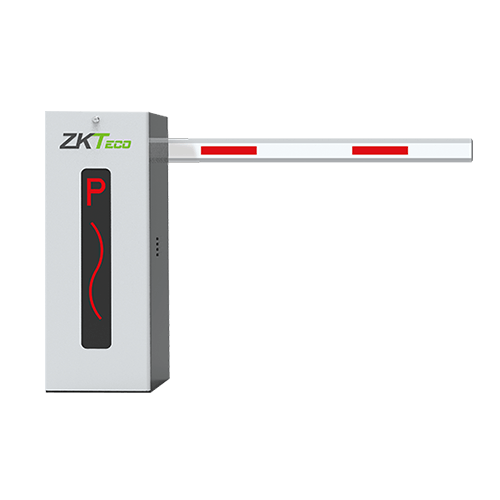

ZKTeco CMP200 Parking Barrier with 4.5 m LED Boom
The ZKTeco CMP200 is a professional-grade parking barrier system equipped with a 4.5-meter LED-lit telescopic boom and support for changeable opening direction. Engineered for secure and efficient vehicle access control, this unit combines high-speed operation, intelligent safety features, and robust construction. Its durable motor, flexible boom configuration, and built-in LED indicators make it ideal for parking lots, commercial complexes, gated communities, and industrial facilities.
Product Features
4.5-Meter LED Boom Arm
The telescopic boom arm extends to 4.5 meters and is equipped with LED lighting for enhanced visibility during day and night. Ideal for medium- to large-width entry points.
Configurable Opening Direction
The boom arm direction can be easily adjusted to open from the left or right, allowing flexible installation based on site requirements.
Fast Opening and Closing
The barrier arm opens and closes in approximately 3 seconds, reducing vehicle wait times and increasing traffic flow efficiency.
Durable Steel Construction
Built with a cold-rolled steel cabinet and reinforced boom materials, the CMP200 provides excellent resistance to weather and long-term wear.
Integrated LED Traffic Indicators
The chassis includes traffic signal indicators for visual guidance during entry and exit, helping manage vehicle movement and improving safety.
Anti-Smash and Auto-Close Safety
Supports anti-smash features with optional sensors (infrared, loop, or radar) to detect vehicles and pedestrians, preventing premature arm closure.
Remote Control Operation
Comes with a remote control system operating at 430 MHz with an effective range of up to 30 meters for wireless barrier operation.
High-Cycle Motor
Designed with a reliable motor that supports up to 1,000,000 operation cycles, ensuring long-term performance with minimal maintenance.
Energy Efficient Operation
The system consumes minimal power during standby and operation, making it cost-effective and environmentally friendly.
Product Specifications
-
Model: CMP200
-
Boom type: Telescopic straight boom with LED lighting
-
Boom length: 4.5 meters (adjustable)
-
Boom material: Aluminum and wood composite
-
Boom weight: Approximately 3.5 kg
-
Opening/closing speed: Approximately 3 seconds
-
Opening direction: Left or right (adjustable)
-
Cabinet material: Cold-rolled steel
-
Power supply: AC 110V or 220V, 50/60Hz
-
Power consumption: Operating 100W (maximum 120W)
-
Operating temperature: –25°C to +75°C
-
Operating humidity: Up to 90% (non-condensing)
-
Remote control: 430 MHz frequency, up to 30 meters range
-
Motor cycle life: Approximately 1,000,000 cycles
-
Safety features: Anti-smash support, optional infrared/loop/radar sensors
-
LED indicators: Integrated traffic signal lights
-
Cabinet dimensions (D × W × H): 350 × 280 × 1010 mm
-
Packing dimensions: 420 × 375 × 1100 mm
-
Net weight: Approximately 45 kg
-
Gross weight: Approximately 47 kg
-
Installation: Indoor or sheltered outdoor use
-
Application areas: Parking lots, residential gates, commercial entrances, industrial zones
