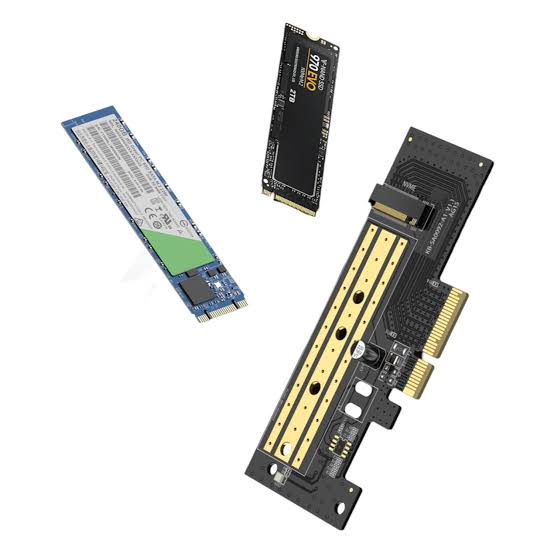

UGREEN M.2 NVMe to PCIe 3.0 x4 Adapter Card CM302 UG 70503

The UGREEN M.2 NVMe to PCIe 3.0 x4 Adapter Card CM302 UG 70503 is a high-performance expansion card designed to install an M.2 NVMe SSD into a desktop computer through a PCI Express slot. Supporting PCIe 3.0 x4 bandwidth with data transmission speeds of up to 32Gbps, it provides an effective way to add high-speed NVMe storage to compatible desktop systems.

Supporting 2230, 2242, 2260, and 2280 M.2 NVMe SSDs, the adapter is suitable for upgrading storage capacity, improving system responsiveness, and adding NVMe capability to compatible desktop computers without an available M.2 slot.

Product Features

PCIe 3.0 x4 High-Speed Performance

The adapter uses a PCIe 3.0 x4 interface and supports transmission speeds of up to 32Gbps, allowing compatible NVMe SSDs to deliver high-speed storage performance.

Supports M.2 NVMe SSDs

Designed for M-Key M.2 PCIe NVMe SSDs, providing a convenient solution for installing an NVMe drive in a compatible desktop PCIe slot.

Multiple M.2 SSD Sizes

Supports 2230, 2242, 2260, and 2280 M.2 SSD form factors, providing flexibility when upgrading or expanding desktop storage.

PCIe x4, x8 and x16 Slot Compatibility

The expansion card can be installed in compatible PCIe x4, x8, or x16 slots, making it suitable for a wide range of desktop motherboard configurations.

Backward Compatible with Earlier PCIe Standards

In addition to PCIe 3.0, the adapter is backward compatible with PCIe 2.0 and PCIe 1.0, with actual performance determined by the PCIe interface and SSD used.

Aluminium Heatsink for Heat Dissipation

An included aluminium heatsink and thermal pad help dissipate heat generated by the installed NVMe SSD, supporting stable performance during demanding workloads.

Multi-Layer Electrical Protection

The adapter incorporates protection against overcurrent, overvoltage, short circuits, and electromagnetic interference, helping maintain stable operation and protect the installed SSD.

Stable Signal Transmission

A quality PCB, capacitor, and gold-plated interface help provide reliable signal transmission between the SSD and motherboard.

Plug-and-Play Installation

The adapter is designed for straightforward installation and generally requires no separate adapter driver. NVMe support still depends on the installed SSD, operating system, motherboard, and BIOS configuration.

Full-Profile and Low-Profile Installation

Included mounting brackets provide installation flexibility for compatible standard desktop cases and low-profile computer chassis.

Product Specifications

• Brand: UGREEN
• Model: CM302
• Product Code: UG 70503
• Product Type:2 NVMe to PCIe Adapter Card
• Input Interface:2 M-Key
• Output Interface: PCIe 3.0 x4
• Maximum Data Transmission: Up to 32Gbps
• Supported SSD Type:2 PCIe NVMe SSD
• Supported SSD Sizes: 2230 / 2242 / 2260 / 2280
• Compatible PCIe Slots: PCIe x4 / x8 / x16
• PCIe Compatibility: PCIe 3.0 / 2.0 / 1.0
• Cooling: Aluminium Heatsink with Thermal Pad
• Power Supply: PCIe Slot
• Driver Requirement: No Adapter Driver Required
• Protection: Overcurrent, Overvoltage, Short-Circuit and EMI Protection
• Supported Systems: Windows, macOS and Linux, subject to NVMe system support
• Included Accessories: Aluminium Heatsink, Thermal Pad, Screwdriver, Screw Kit and Mounting Brackets
• Application: Desktop NVMe Storage Expansion, System Upgrades, Gaming, Content Creation and High-Speed Data Storage
