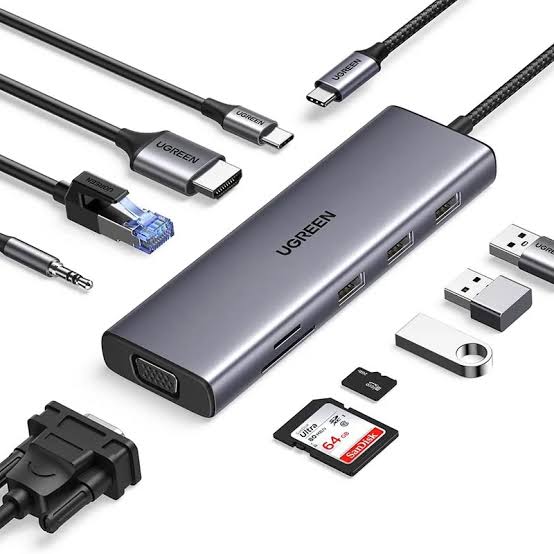

UGREEN CM498 10-in-1 USB-C Multifunction Hub – UG-15601

The UGREEN CM498 10-in-1 USB-C Multifunction Hub (UG-15601) is a versatile multiport adapter designed to expand a compatible USB-C laptop, tablet, or other device into a complete workstation. Combining display output, USB expansion, wired networking, memory card access, audio connectivity, and USB-C Power Delivery in one compact hub, it is ideal for offices, home workstations, presentations, content creation, and mobile professionals.

The CM498 features both HDMI and VGA video outputs, allowing compatible monitors, televisions, and projectors to be connected directly. HDMI supports resolutions up to 4K at 30Hz, while VGA supports up to 1080p at 60Hz.

For peripherals and storage, the hub provides 3 USB-A 3.0 ports with transfer speeds up to 5Gbps, while the Gigabit Ethernet port provides reliable wired networking at speeds up to 1000Mbps.

The hub also includes SD and microSD/TF card readers, a 3.5mm audio port, and USB-C Power Delivery input supporting up to 100W, providing an all-in-one connectivity solution for compatible USB-C devices.

Product Features

10-in-1 USB-C Expansion

Transforms one compatible USB-C connection into 10 useful interfaces for displays, networking, USB peripherals, memory cards, audio, and charging.

4K HDMI Output

The HDMI port supports video resolutions up to 4K at 30Hz, providing high-resolution output to compatible monitors, TVs, and projectors.

1080p VGA Output

Features a VGA interface supporting up to 1080p at 60Hz, making the hub suitable for connecting older monitors, projectors, and presentation equipment.

HDMI + VGA Dual Display

HDMI and VGA outputs can be used simultaneously with compatible hardware, making the adapter suitable for multi-display workstations and presentations.

3 USB 3.0 Ports

Provides 3 × USB-A 3.0 ports for connecting external storage, keyboards, mice, printers, webcams, flash drives, and other USB peripherals.

Up to 5Gbps USB Transfer

USB 3.0 connectivity supports data transfer speeds up to 5Gbps, allowing fast transfer of files between compatible devices.

Gigabit Ethernet

The integrated RJ45 Gigabit Ethernet port supports network speeds up to 1000Mbps, providing a stable wired alternative to Wi-Fi.

100W USB-C Power Delivery

Features a USB-C PD input supporting up to 100W, allowing a compatible laptop or device to receive power while the hub remains connected.

SD & microSD Card Readers

Dedicated SD and microSD/TF card slots provide convenient access to photos, videos, documents, and other files stored on compatible memory cards.

3.5mm Audio Connection

Includes a 3.5mm audio port for connecting compatible headphones, speakers, and other audio equipment.

Aluminum Construction

Features a compact aluminum housing designed for durability, portability, and efficient heat dissipation.

Product Specifications

• Product Type: 10-in-1 USB-C Multifunction Hub / Docking Station
• Brand: UGREEN
• Model: CM498
• Product Code: UG-15601 / 15601
• Host Connection: USB-C Male
• HDMI Ports: 1
• Maximum HDMI Resolution: 4K at 30Hz
• VGA Ports: 1
• Maximum VGA Resolution: 1080p at 60Hz
• USB-A Ports: 3 × USB 3.0
• Maximum USB Data Speed: 5Gbps
• Ethernet: RJ45 Gigabit Ethernet
• Maximum Ethernet Speed: 1000Mbps
• SD Card Reader: Yes
• microSD / TF Reader: Yes
• Audio Port:5mm
• USB-C PD Port: Yes
• Maximum PD Input: 100W
• Host Cable Length: Approximately 20cm
• Housing: Aluminum
• Colour: Grey
• Plug and Play: Yes
• Suitable For: Compatible USB-C Laptops, MacBooks, Tablets and Other USB-C Devices
• Applications: Multi-Monitor Workstations, Office Work, Presentations, Networking, Content Creation, Data Transfer and Memory Card Access
• Compatibility Requirement: The host USB-C port must support the required video and Power Delivery functions to use those respective features.
