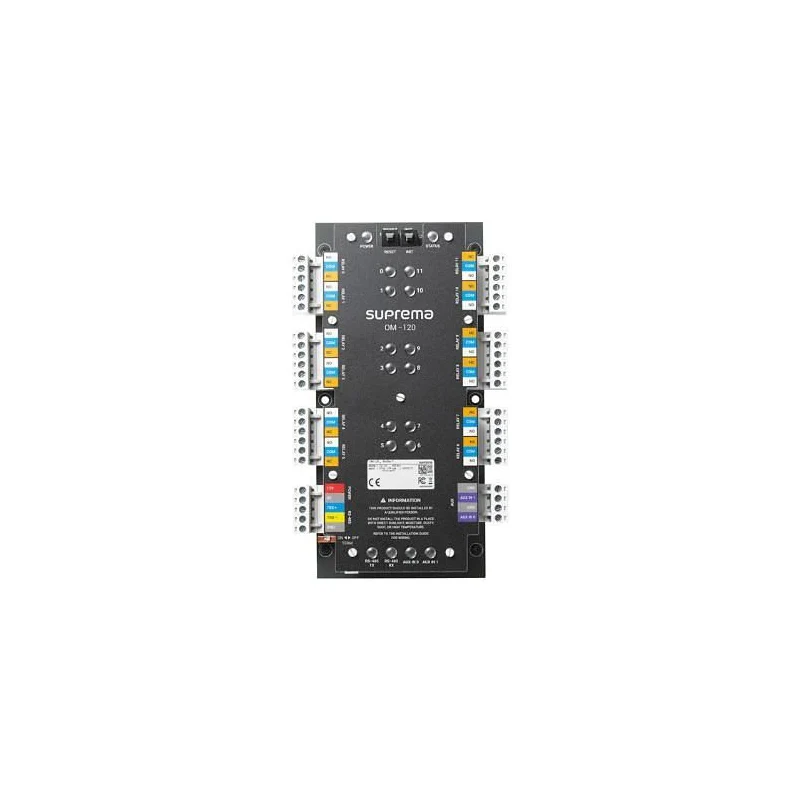

Suprema OM-120 Multiple Output Extension Module

Name: Suprema OM-120 Multiple Output Extension Module
SKU: 17662
Availability: InStock

Original price was: KSh 90,000.Current price is: KSh 62,500. Ex-VAT

• 12 output relays per unit
• Controls max. 192 floors per elevator
• Preset alert for alarms in APB zones
• Elevator groups can be added to a certain fire alarm zone
• Terminating resistance for RS-485 connections

Order Via WhatsApp

Add to wishlist

Category: Suprema Access Control Systems

Description
Reviews (0)

Suprema OM-120 Multiple Output Extension Module Specs and Price in Kenya

Suprema OM-120 Multiple Output Extension Module

Product Description

Suprema OM-120 Multiple Output Extension Module:

Suprema OM-120 Multiple Output Extension Module Specs

Suprema OM-120 Multiple Output Extension Module is a multiple output extension module that controls up to 12 output relays. It can be used as an elevator controller with BioStar 2 system. Max. 31 units can be connected to a master device via RS485 daisy chain. OM-120 can also support anti-passback zone and fire alarm zone features.

General	CPU	Cortex M3 72MHz
	Memory	Flash 128KB, SRAM 20KB
	LED	Multi-color- Power 1 ea– Relays 12 ea – RS-485 2 ea – AUX IN 1 ea – Status 1 ea
	Operating temperature	-20°C ~ 60°C
	Storage temperature	-40°C ~ 70°C
	Operating humidity	0% ~ 95%, non-condensing
	Storage humidity	0% ~ 95%, non-condensing
	Dimension (W x H x D)	90 mm x 190 mm x 21 mm
	Weight	300 g
	Certificates	CE, FCC, KC, RoHS, REACH, WEEE
	Output	TTL Output x 6
Interface	RS-485	1ch
	AUX input	2ch Dry Contact Input
	Relay	12 Relays
Electrical	Power	Voltage: 12 VDCCurrent: Max. 1 A
	Switch input VIH	Max. 5 V (Dry Contact)
	Relay	Voltage: Max. 30 VDCCurrent: 5 A
