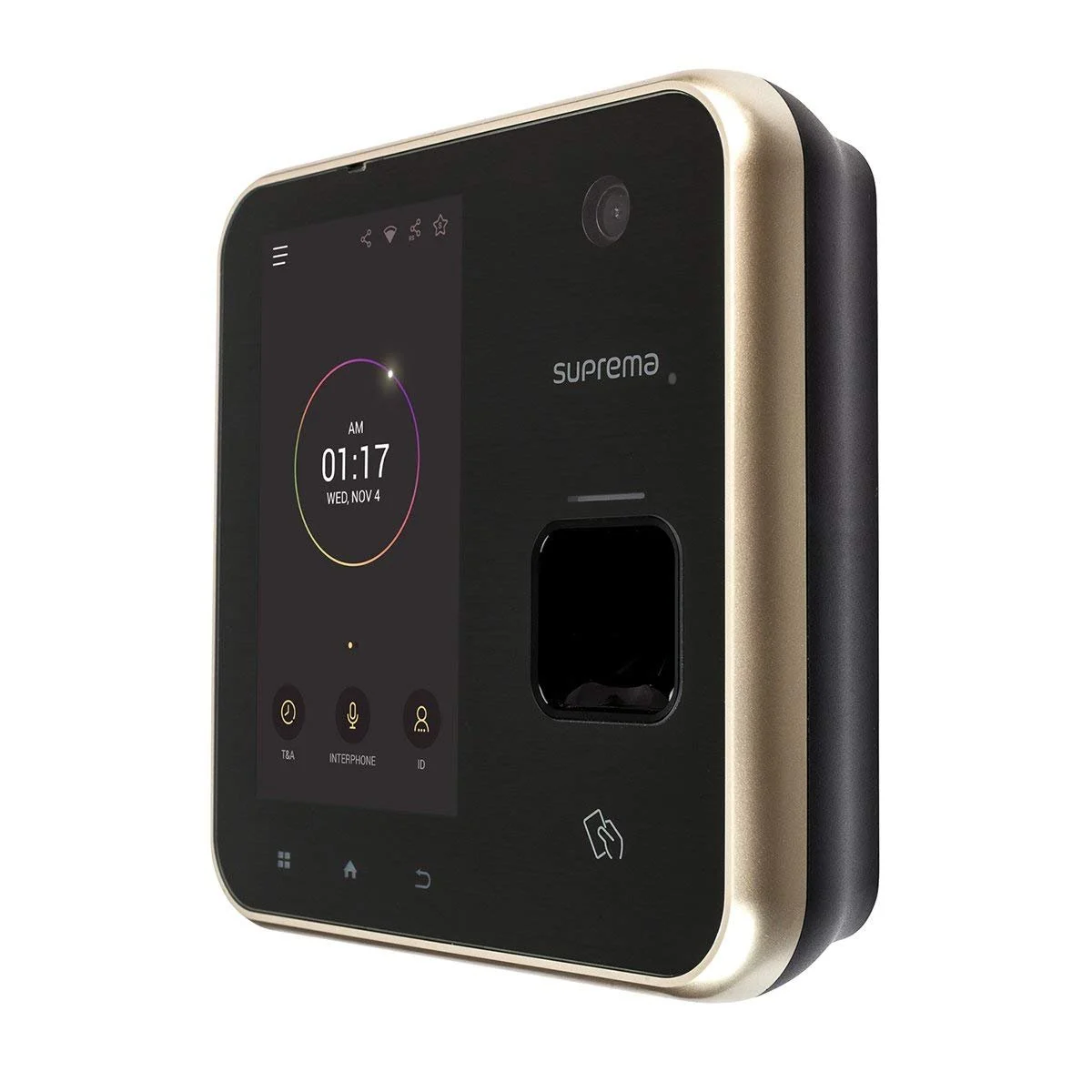

Suprema BSA2-OMPW BioStation A2 Fingerprint RFID Reader

The Suprema BSA2-OMPW BioStation A2 Fingerprint RFID Reader is a high-performance biometric access control and time attendance terminal designed for enterprise environments. Combining advanced fingerprint authentication, 13.56MHz RFID smart card support, and NFC mobile credential compatibility, the BioStation A2 delivers exceptional speed, security, and scalability. Featuring a 5-inch colour touchscreen, 1.0GHz quad-core processor, Power over Ethernet (PoE), built-in Wi-Fi, and enterprise-grade user capacity, it is an ideal solution for corporate offices, government institutions, financial organizations, healthcare facilities, educational campuses, and industrial sites.

Product Features

High-Speed Fingerprint Recognition

Powered by a 1.0GHz quad-core processor and Suprema’s advanced fingerprint algorithm to provide fast, accurate, and secure biometric authentication.

13.56MHz RFID Smart Card Support

Supports MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, and FeliCa smart cards, offering flexible and secure authentication methods.

NFC Mobile Credentials

Enables secure access using compatible NFC-enabled smartphones, reducing reliance on physical access cards.

Large Enterprise Capacity

Stores up to 500,000 users, 100,000 fingerprint templates, 5,000,000 event logs, and 50,000 image logs, making it ideal for large organizations.

5-Inch Colour Touchscreen

Features a vibrant 5-inch TFT capacitive touchscreen with an intuitive interface for easy enrollment, verification, and administration.

Integrated Time Attendance

Combines biometric access control and employee time attendance in a single device, simplifying workforce management.

Multiple Connectivity Options

Supports TCP/IP, Wi-Fi, RS-485, Wiegand, USB, and PoE for seamless integration with modern access control systems.

Live Finger Detection

Advanced liveness detection technology helps prevent authentication using fake or replicated fingerprints for enhanced security.

Built-In 2MP Camera

Captures user images for audit trails, visitor management, and enhanced security monitoring.

Enterprise Security

Supports encrypted communication, tamper detection, secure credential management, and centralized administration for high-security environments.

Product Specifications

• Product Type: Fingerprint Access Control and Time Attendance Terminal
• Brand: Suprema
• Model: BSA2-OMPW (BioStation A2)
• Authentication Methods: Fingerprint, RFID Card, NFC Mobile Credential
• Fingerprint Sensor: Optical Sensor
• Fingerprint Capacity: Up to 100,000 Templates
• Maximum User Capacity: Up to 500,000 Users
• Event Log Capacity: Up to 5,000,000 Records
• Image Log Capacity: Up to 50,000 Images
• Processor:0GHz Quad-Core CPU
• Memory: 8GB Flash, 1GB RAM
• Display: 5-inch Colour TFT Capacitive Touchscreen
• Display Resolution: 480 × 854
• Camera: 2MP CMOS
• Supported Card Types:56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa
• Mobile Credentials: NFC
• Communication Interfaces: TCP/IP, Wi-Fi, RS-485, OSDP V2, Wiegand, USB 2.0
• Ethernet: 10/100 Mbps
• Power Supply: 12V DC or IEEE 802.3af PoE
• Relay Outputs: 2
• Digital Inputs: 2
• USB Port: USB 2.0 Host
• microSD Card Support: Up to 32GB
• Audio: 24-bit Voice DSP with Echo Cancellation
• LED Indicator: Multi-Colour LED
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 0%–80% Non-Condensing
• Storage Humidity: 0%–90% Non-Condensing
• Dimensions: 155 × 155 × 40 mm
• Weight: 440g
• Certifications: CE, UKCA, FCC, KC, BIS, RoHS, REACH, WEEE
• Applications: Corporate Offices, Government Buildings, Financial Institutions, Educational Institutions, Healthcare Facilities, Manufacturing Plants, Warehouses, Data Centres, Airports, and Enterprise Access Control Systems.
