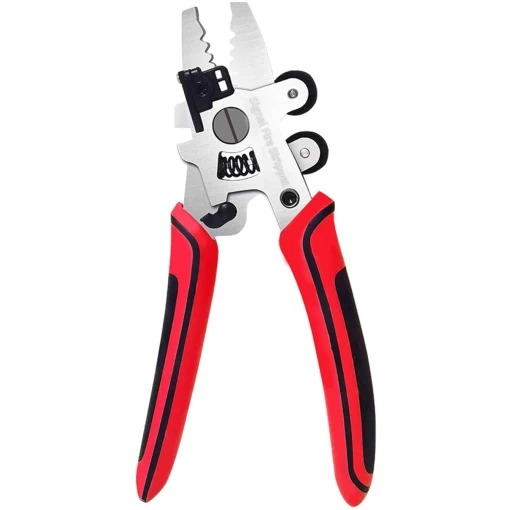

Signal Fire ZSQ-09 9-in-1 Optical Fiber Stripper

The Signal Fire ZSQ-09 9-in-1 Optical Fiber Stripper is a multifunctional fiber optic preparation tool designed for FTTH installation, fiber optic splicing, telecommunications, and network maintenance. It combines multiple stripping, cutting, cleaning, and measuring functions in one compact tool, helping technicians reduce the number of separate tools required during fiber preparation. Its stainless steel construction, precision stripping edges, rotating fiber ruler, Kevlar scissors, drop cable tools, and replaceable cleaning cotton make the ZSQ-09 a practical choice for professional fiber optic work.

Product Features

9-in-1 Fiber Preparation Tool

Combines fiber stripping, drop cable stripping, Kevlar cutting, steel wire cutting, fiber cleaning, and fiber measurement functions in one compact tool.

Three-Hole Fiber Stripper

The three-port stripper is designed for removing common fiber cable layers, including 2 to 3 mm jackets, 900 micrometer buffers, and 250 micrometer fiber coatings.

FTTH Drop Cable Stripper

Supports stripping of common flat FTTH drop cables, including 2 x 3 mm and 2 x 1.6 mm cable configurations.

Kevlar Scissors

Built-in scissors provide a convenient way to cut Kevlar strength members during fiber cable preparation.

Drop Cable Steel Wire Pliers

Integrated steel wire pliers allow technicians to cut the reinforcement wire found in FTTH drop cables.

Fiber Cleaning Function

The integrated cleaning cotton holder helps remove contaminants from the fiber cladding before fusion splicing. The cleaning cotton can be rotated and replaced when required.

Fiber Measurement Ruler

The integrated rotating ruler allows technicians to measure fiber length during preparation and installation.

Durable Stainless Steel Construction

The tool uses a stainless steel body with precision-machined stripping edges designed for regular professional use while helping prevent damage to the optical fiber.

Product Specifications

• Brand: Signal Fire
• Model: ZSQ-09
• Product type: 9-in-1 optical fiber stripper
• Tool functions: Fiber stripping, drop cable stripping, Kevlar cutting, steel wire cutting, fiber cleaning, and fiber measurement
• Fiber stripper ports: 3
• Jacket stripping: 2 to 3 mm
• Buffer stripping: 900 micrometers
• Coating stripping: 250 micrometers
• FTTH drop cable sizes: 2 x 3 mm and 2 x 1.6 mm
• Body material: Stainless steel
• Cleaning cotton: Rotatable and replaceable
• Fiber measurement: Integrated rotating ruler
• Design: Multi-function handheld tool
• Applications: FTTH installation, fiber fusion splicing, telecommunications, fiber optic maintenance, and network construction
• Tool dimensions: Approximately 170 x 45 mm
• Net weight: Approximately 140 g
• Gross weight: Approximately 200 g
