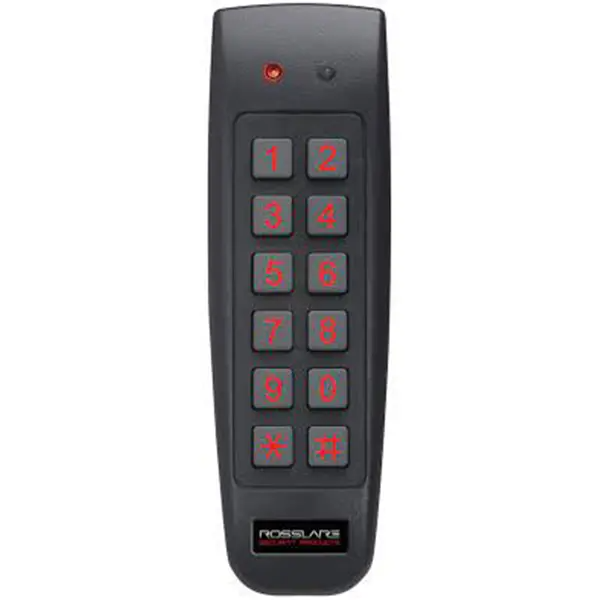

Rosslare AC-G44 Outdoor Backlit Standalone Controller

The Rosslare AC-G44 is a durable, weather-resistant standalone access control unit designed for secure entry management in outdoor environments. With a rugged metallic housing, backlit keypad, and support for up to 500 users, the AC-G44 is ideal for residential, commercial, and industrial access points. Its standalone operation, ease of programming, and tamper-resistant features make it a reliable and cost-effective security solution for gates, doors, and enclosures.

Product Features

Rugged Outdoor Design

Encased in a robust, vandal-resistant metallic housing with IP65 weatherproof rating, suitable for harsh environmental conditions.

Backlit Keypad for Night Visibility

Illuminated keypad allows easy access control even in low-light environments, ensuring 24/7 usability.

Standalone Access Control

Supports up to 500 users with programmable PIN codes, making it a complete solution without needing an external controller.

Secure Operation

Features a built-in tamper switch and programmable lockout to enhance entry point security and prevent unauthorized access.

Easy Installation and Wiring

Simple 3-wire connection for relay, power, and ground makes setup quick and straightforward for installers.

Product Specifications

• Brand: Rosslare
• Model: AC-G44
• Type: Standalone access controller
• User Capacity: Up to 500 PIN users
• Keypad: Backlit, sealed 12-key
• Output: 1 Form-C relay (5A at 30VDC max)
• Tamper Switch: Yes (built-in)
• Operating Voltage: 12–24V DC
• Current Draw: 60 mA (standby), 110 mA (active)
• Operating Temperature: -31°F to 151°F (-35°C to +66°C)
• Environmental Rating: IP65 weather-resistant
• Housing: Zinc alloy metal with epoxy coating
• Dimensions: Approx. 120 x 76 x 22 mm
• Application: Outdoor gates, secure doors, industrial sites, restricted areas
