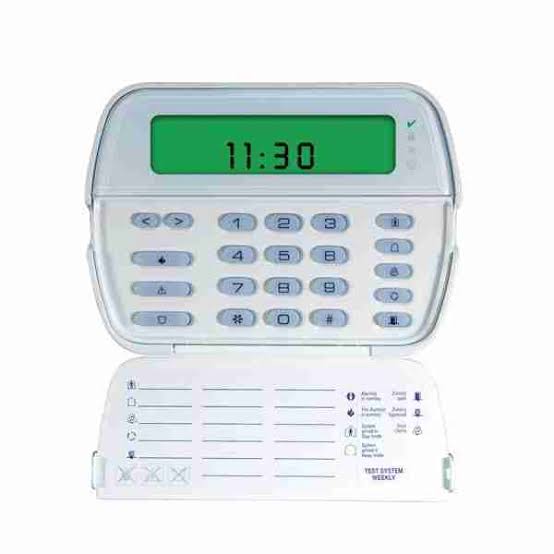

PowerSeries 64-Zone LCD Full-Message Keypad PK5500

The PowerSeries 64-Zone LCD Full-Message Keypad PK5500 is a premium alphanumeric keypad designed for DSC PowerSeries security systems. Featuring a large 32-character LCD display, intuitive menu-driven navigation, and programmable function keys, the PK5500 provides users with a convenient way to arm, disarm, monitor, and program compatible alarm systems. Its modern slim-line design, multilingual support, and advanced programming capabilities make it an ideal choice for residential, commercial, and industrial security installations.

Product Features

Full-Message LCD Display

The large 32-character LCD screen displays complete text messages, zone information, and system status, making operation simple and user-friendly.

Supports Up to 64 Zones

Designed to operate with compatible DSC PowerSeries alarm panels, the PK5500 supports security systems with up to 64 programmable zones for comprehensive property protection.

Five Programmable Function Keys

Includes five customizable one-touch function keys that provide quick access to commonly used security functions such as arming, disarming, and emergency operations.

Multilingual Interface

Supports multiple languages, making the keypad suitable for a wide range of users and installation environments.

Programmable Zone Labels

Allows custom 32-character labels for zones and system functions, making it easy to identify protected areas during operation.

Adjustable Backlit Display and Keys

The illuminated LCD screen and keypad provide excellent visibility in low-light conditions, while adjustable brightness improves user comfort.

Built-in Emergency Keys

Features dedicated one-touch emergency buttons for Panic, Fire, and Auxiliary emergencies, allowing rapid activation when required.

Keybus Connectivity

Connects to compatible DSC control panels through a simple four-wire Keybus, allowing quick installation and reliable communication.

Tamper Protection

Equipped with wall-mount and front-cover tamper switches that help protect the keypad against unauthorized removal or interference.

Modern Slim-Line Design

The compact, low-profile housing blends seamlessly into residential and commercial interiors while providing easy day-to-day operation.

Product Specifications

• Brand: DSC
• Model: PK5500
• Product Type: 64-Zone LCD Full-Message Security Keypad
• Display: 32-character LCD full-message display
• Maximum Supported Zones: 64
• Function Keys: 5 programmable keys
• Emergency Keys: 3 one-touch emergency keys (Fire, Auxiliary, Panic)
• Connectivity: 4-wire Keybus
• Input/Output: Programmable zone input / PGM output
• Operating Voltage: 12V DC
• Current Draw: 50mA (standby), 125mA (maximum)
• Operating Temperature: -10°C to +55°C
• Maximum Humidity: 93% RH (non-condensing)
• Protection Rating: IP30
• Tamper Protection: Front cover and wall tamper
• Mounting Options: Surface mount or single-gang electrical box
• Compatibility: DSC PowerSeries alarm control panels
• Applications: Residential, commercial, and industrial security systems
