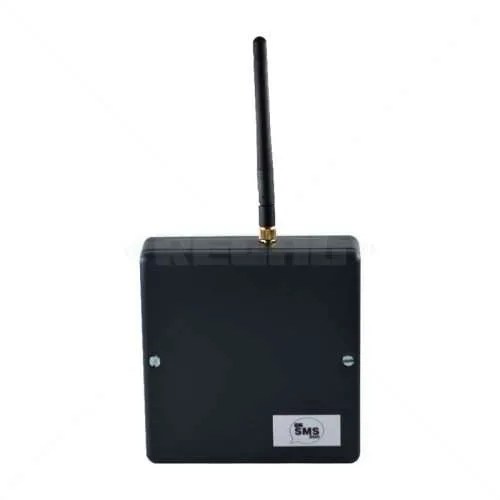

IDS SMS Duo Module 805 and Stand-Alone

The IDS SMS Duo Module 805 and Stand-Alone is a GSM communication module that enables remote monitoring and control of IDS 805 alarm systems using any SMS-enabled mobile phone. It also functions as a stand-alone GSM controller, allowing users to remotely operate two relay outputs and monitor two supervised inputs without an alarm panel. With simple SMS commands, real-time notifications, and secure installation via the IDS 805 communications bus, the SMS Duo provides a reliable solution for residential, commercial, and industrial security and automation applications.

Product Features

Remote SMS Control

Control your IDS 805 alarm panel from any SMS-enabled mobile phone using simple text message commands.

IDS 805 Panel Integration

Connects directly to the IDS 805 keypad communications bus for seamless installation with minimal wiring.

Stand-Alone GSM Operation

Functions independently as a GSM controller for applications such as gate automation, electric fences, pumps, lighting, and access control.

Two Supervised Inputs

Features two supervised input zones for monitoring external devices and sending SMS notifications when events occur.

Two Relay Outputs

Provides two programmable relay outputs that can be configured for pulse or latching operation via SMS commands.

Arm and Disarm Control

Remotely arm and disarm the IDS 805 alarm panel with confirmation messages.

System Status Monitoring

Check alarm status, partition status, and receive event notifications directly on your mobile phone.

Zone Bypass Function

Remotely bypass and restore alarm zones for convenient system management.

User Access Levels

Supports Master, User, and Reporting access levels to provide controlled system access for multiple users.

Airtime Management

Query available airtime and manage SMS communication directly from the module.

Custom Labels

Assign custom names to zones, outputs, and installation sites for easier identification.

SMS Confirmation Replies

Every command can generate an SMS confirmation, ensuring that requested actions have been successfully executed.

Product Specifications

• Product Type: GSM SMS Communication Module
• Brand: IDS
• Model: SMS Duo Module 805
• Compatible Alarm Panel: IDS 805 Series
• Operating Modes: IDS 805 Integration or Stand-Alone
• Communication Method: GSM SMS
• Power Supply: 12V DC
• Operating Current: 39 mA (Typical)
• Peak Current: Up to 2 A During GSM Transmission
• Relay Outputs: 2 Programmable Relay Outputs
• Inputs: 2 Supervised Inputs
• User Access Levels: Master, User, Reporting
• Alarm Functions: Arm, Disarm, Status Check, Zone Bypass, Output Control
• Notifications: SMS Event Reporting and Confirmation Replies
• Operating Temperature: -10°C to 50°C
• Applications: IDS 805 Alarm Systems, Gate Automation, Electric Fences, Access Control, Lighting Control, Pump Control, Remote Equipment Monitoring, and General GSM Automation.
